Kohler KDI 1903 TCR Workshop Manual

EN
120

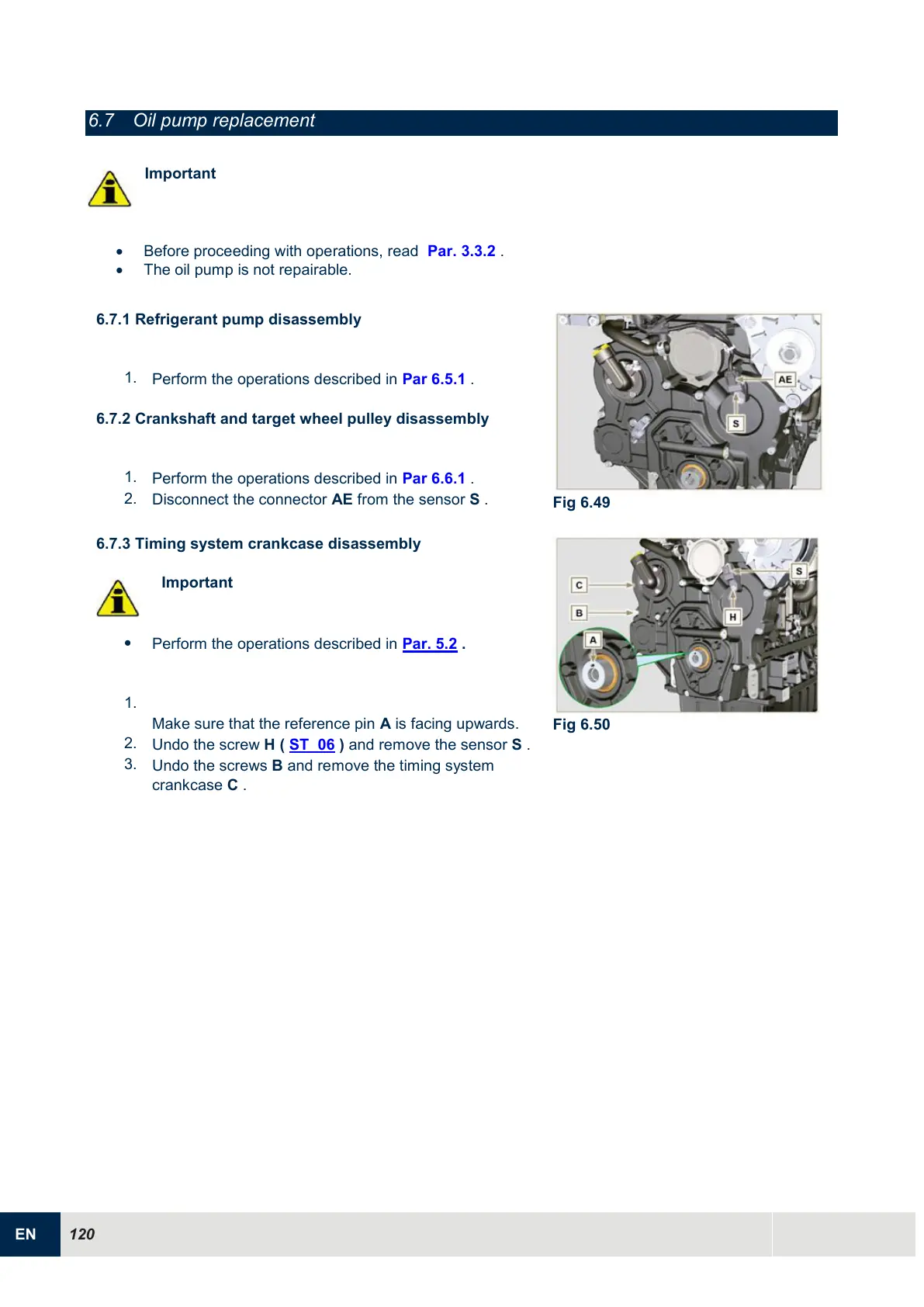

6.7 Oil pump replacement
Important
 Before proceeding with operations, read Par. 3.3.2 .
 The oil pump is not repairable.
6.7.1 Refrigerant pump disassembly
1.
Perform the operations described in Par 6.5.1 .
6.7.2 Crankshaft and target wheel pulley disassembly
1.
Perform the operations described in Par 6.6.1 .
2.
Disconnect the connector AE from the sensor S .
Fig 6.49
6.7.3 Timing system crankcase disassembly
Important

Perform the operations described in Par. 5.2 .
1.
Make sure that the reference pin A is facing upwards.
2.
Undo the screw H ( ST_06 ) and remove the sensor S .
3.
Undo the screws B and remove the timing system
crankcase C .
Fig 6.50
