Kohler KDI 1903 TCR Workshop Manual

119
EN
1.

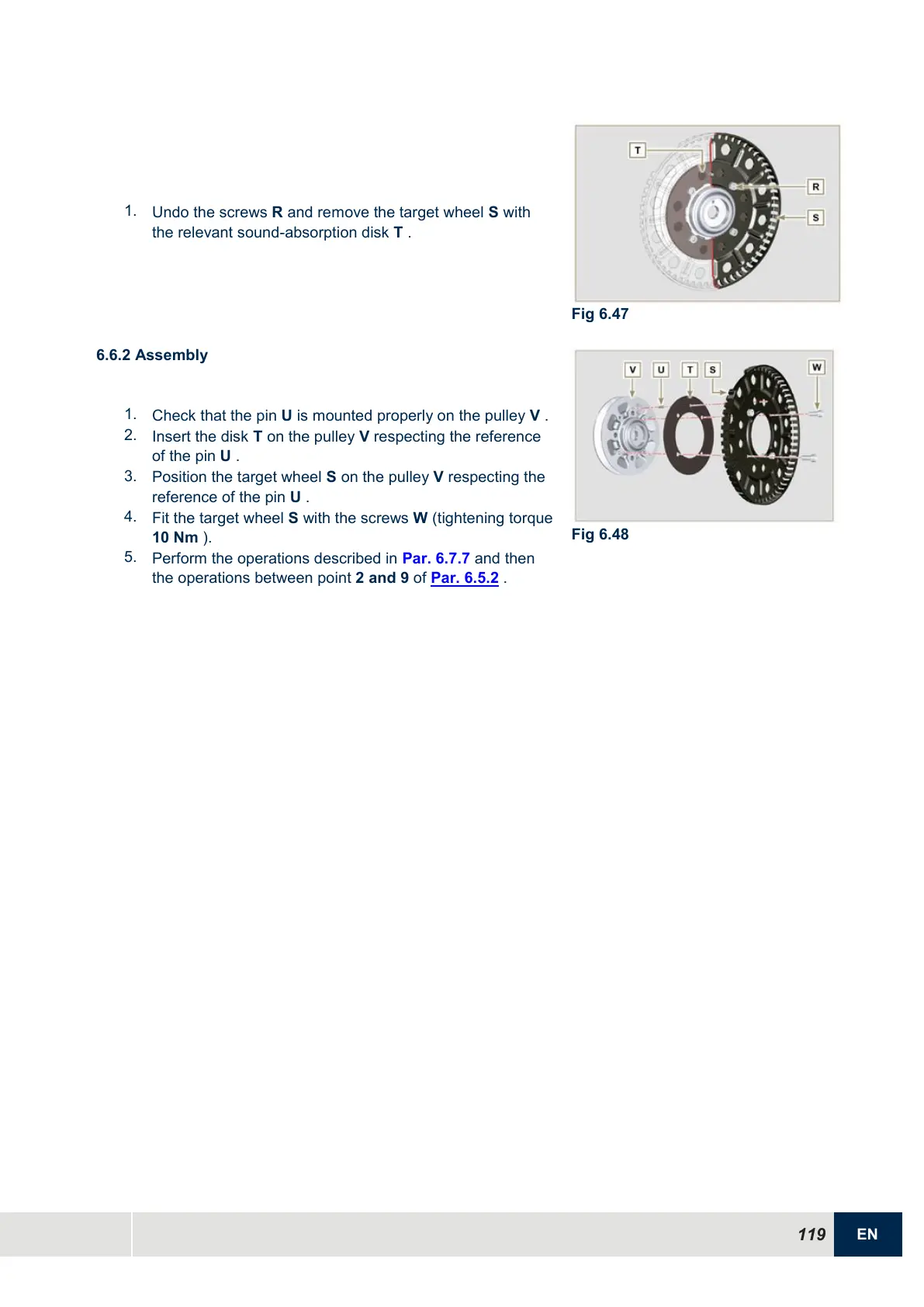

Undo the screws R and remove the target wheel S with
the relevant sound-absorption disk T .
Fig 6.47
6.6.2 Assembly
1.
Check that the pin U is mounted properly on the pulley V .
2.
Insert the disk T on the pulley V respecting the reference
of the pin U .
3.
Position the target wheel S on the pulley V respecting the
reference of the pin U .
4.
Fit the target wheel S with the screws W (tightening torque
10 Nm ).
5.
Perform the operations described in Par. 6.7.7 and then
the operations between point 2 and 9 of Par. 6.5.2 .
Fig 6.48
