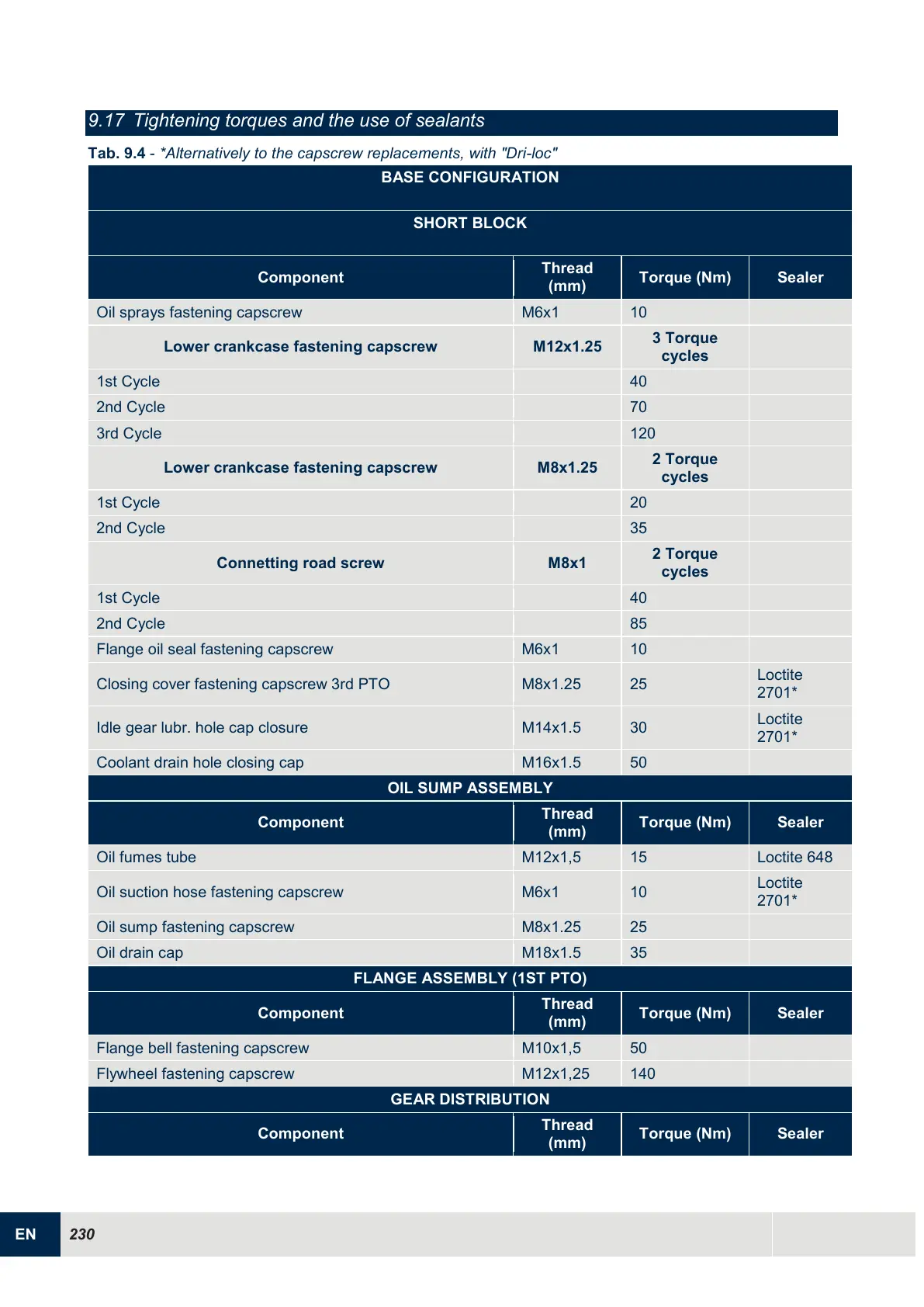

9.17 Tightening torques and the use of sealants
Tab. 9.4 - *Alternatively to the capscrew replacements, with "Dri-loc"
BASE CONFIGURATION
SHORT BLOCK
Component
Thread
(mm)
Torque (Nm)
Sealer
Oil sprays fastening capscrew
M6x1
10
Lower crankcase fastening capscrew
M12x1.25
3 Torque
cycles
1st Cycle
40
2nd Cycle
70
3rd Cycle
120
Lower crankcase fastening capscrew
M8x1.25
2 Torque
cycles
1st Cycle
20
2nd Cycle
35
Connetting road screw
M8x1
2 Torque
cycles
1st Cycle
40
2nd Cycle
85
Flange oil seal fastening capscrew
M6x1
10
Closing cover fastening capscrew 3rd PTO
M8x1.25
25
Loctite
2701*
Idle gear lubr. hole cap closure
M14x1.5
30
Loctite
2701*
Coolant drain hole closing cap
M16x1.5
50
OIL SUMP ASSEMBLY
Component
Thread
(mm)
Torque (Nm)
Sealer
Oil fumes tube
M12x1,5
15
Loctite 648
Oil suction hose fastening capscrew
M6x1
10
Loctite
2701*
Oil sump fastening capscrew
M8x1.25
25
Oil drain cap
M18x1.5
35
FLANGE ASSEMBLY (1ST PTO)
Component
Thread
(mm)
Torque (Nm)
Sealer
Flange bell fastening capscrew
M10x1,5
50
Flywheel fastening capscrew
M12x1,25
140
GEAR DISTRIBUTION
Component
Thread
(mm)
Torque (Nm)
Sealer
