Kohler KDI 1903 TCR Workshop Manual

229
EN
1.

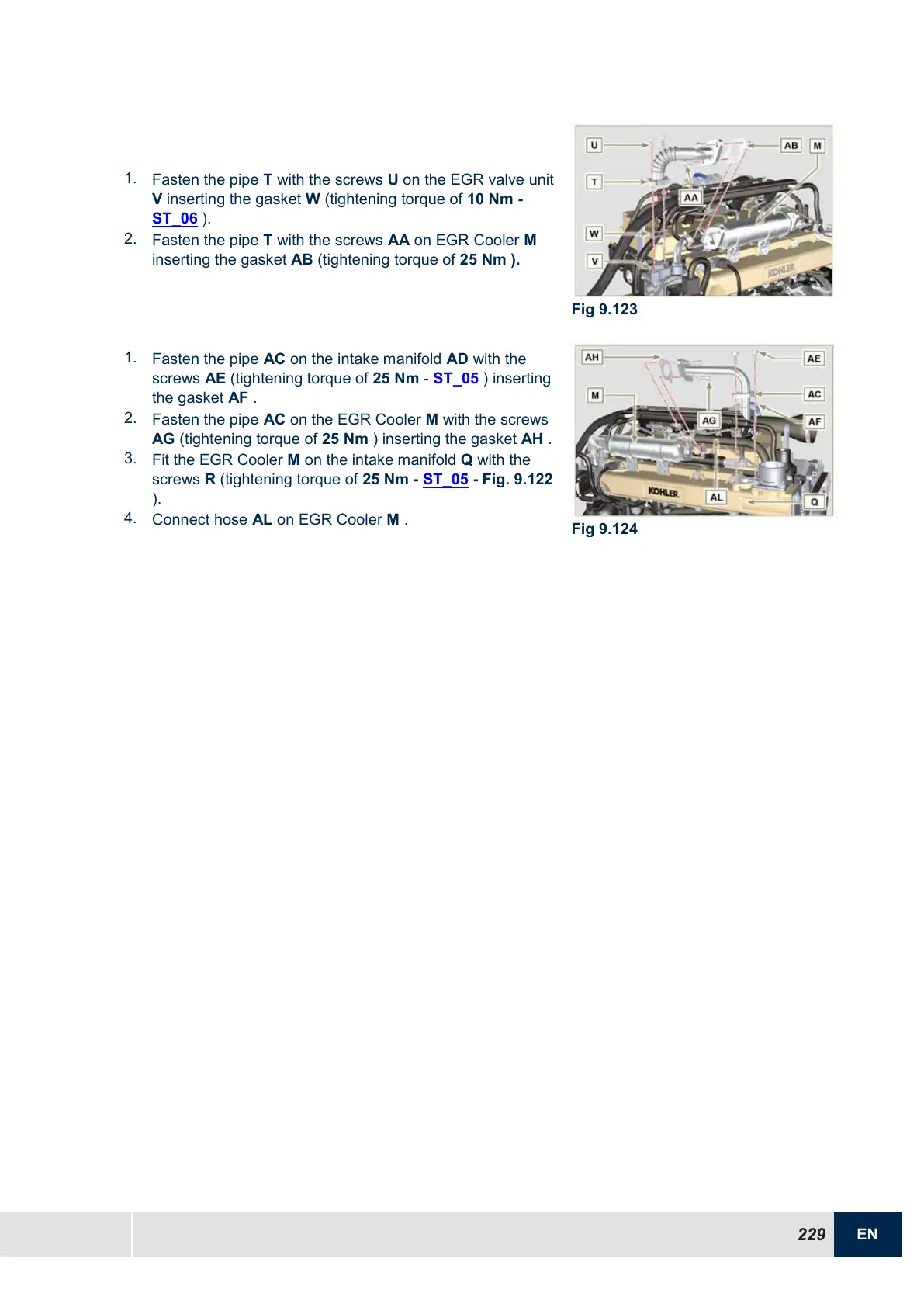

Fasten the pipe T with the screws U on the EGR valve unit
V inserting the gasket W (tightening torque of 10 Nm -
ST_06 ).
2.
Fasten the pipe T with the screws AA on EGR Cooler M
inserting the gasket AB (tightening torque of 25 Nm ).
Fig 9.123
1.
Fasten the pipe AC on the intake manifold AD with the
screws AE (tightening torque of 25 Nm - ST_05 ) inserting
the gasket AF .
2.
Fasten the pipe AC on the EGR Cooler M with the screws
AG (tightening torque of 25 Nm ) inserting the gasket AH .
3.
Fit the EGR Cooler M on the intake manifold Q with the
screws R (tightening torque of 25 Nm - ST_05 - Fig. 9.122
).
4.
Connect hose AL on EGR Cooler M .
Fig 9.124
