Kohler KDI 1903 TCR Workshop Manual

EN
238

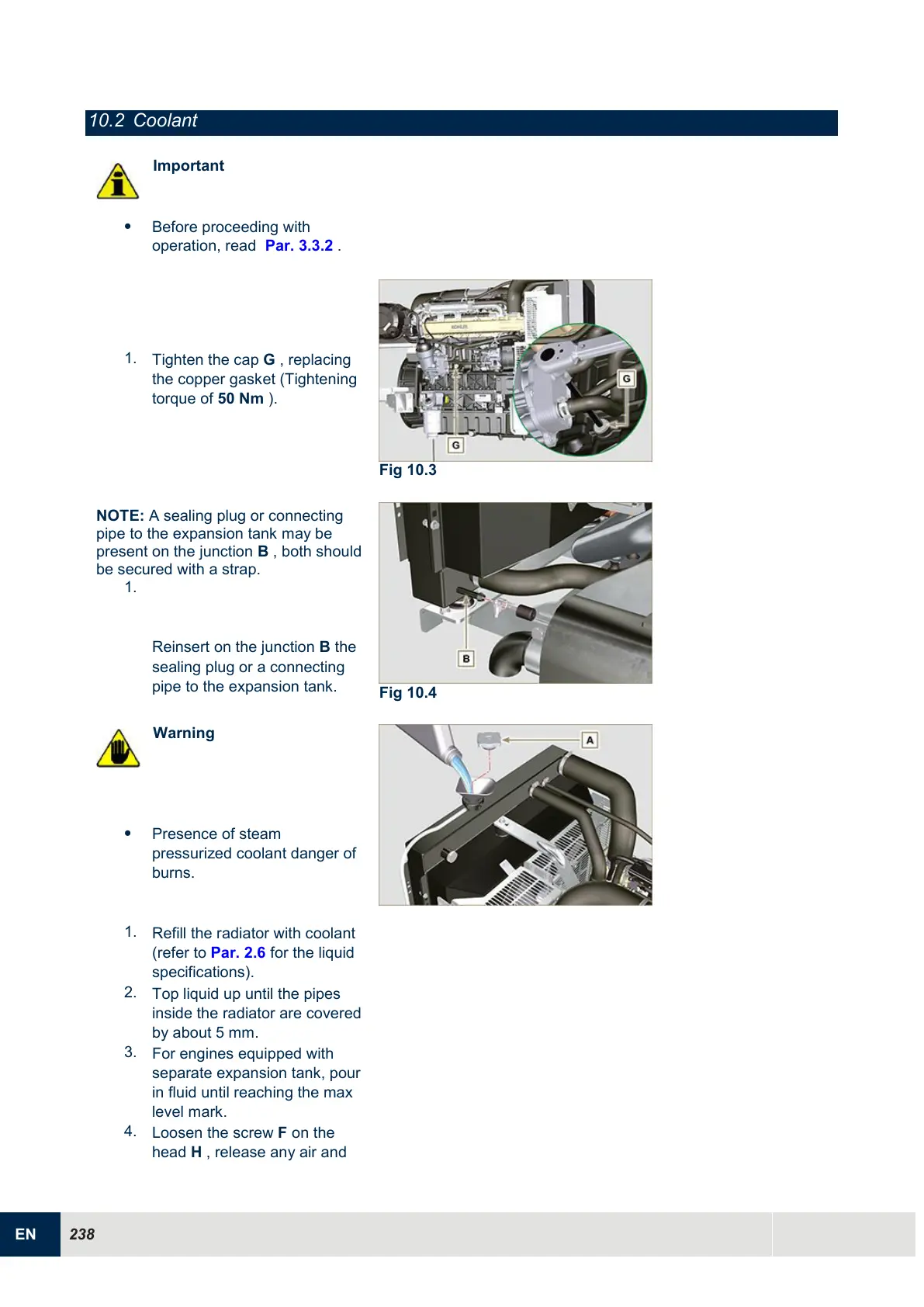

10.2 Coolant
Important

Before proceeding with
operation, read Par. 3.3.2 .
1.
Tighten the cap G , replacing
the copper gasket (Tightening
torque of 50 Nm ).
Fig 10.3
NOTE: A sealing plug or connecting
pipe to the expansion tank may be
present on the junction B , both should
be secured with a strap.
1.
Reinsert on the junction B the
sealing plug or a connecting
pipe to the expansion tank.
Fig 10.4
Warning

Presence of steam
pressurized coolant danger of
burns.
1.
Refill the radiator with coolant
(refer to Par. 2.6 for the liquid
specifications).
2.
Top liquid up until the pipes
inside the radiator are covered
by about 5 mm.
3.
For engines equipped with
separate expansion tank, pour
in fluid until reaching the max
level mark.
4.
Loosen the screw F on the
head H , release any air and
