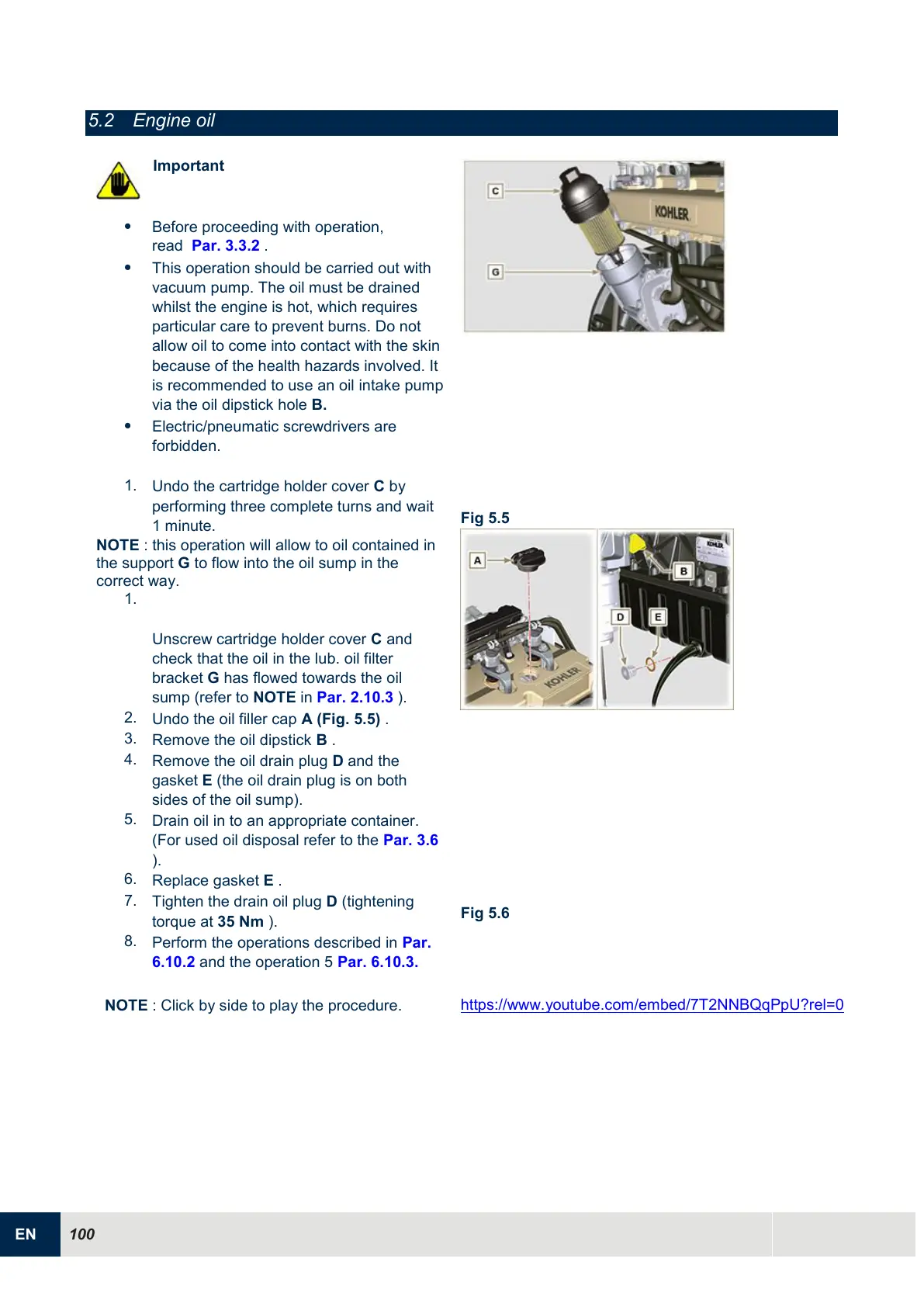

Important
ï‚·
Before proceeding with operation,
read Par. 3.3.2 .
ï‚·
This operation should be carried out with
vacuum pump. The oil must be drained
whilst the engine is hot, which requires
particular care to prevent burns. Do not
allow oil to come into contact with the skin
because of the health hazards involved. It
is recommended to use an oil intake pump
via the oil dipstick hole B.
ï‚·
Electric/pneumatic screwdrivers are
forbidden.
1.
Undo the cartridge holder cover C by
performing three complete turns and wait
1 minute.
NOTE : this operation will allow to oil contained in
the support G to flow into the oil sump in the
correct way.
1.
Unscrew cartridge holder cover C and
check that the oil in the lub. oil filter
bracket G has flowed towards the oil
sump (refer to NOTE in
Par. 2.10.3 ).
2.
Undo the oil filler cap A (Fig. 5.5) .
3.
Remove the oil dipstick B .
4.
Remove the oil drain plug D and the
gasket E (the oil drain plug is on both
sides of the oil sump).
5.
Drain oil in to an appropriate container.
(For used oil disposal refer to the Par. 3.6
).
6.
Replace gasket E .
7.
Tighten the drain oil plug D (tightening
torque at 35 Nm ).
8.
Perform the operations described in Par.
6.10.2 and the operation 5 Par. 6.10.3.
