Kohler KDI 1903 TCR Workshop Manual

111
EN

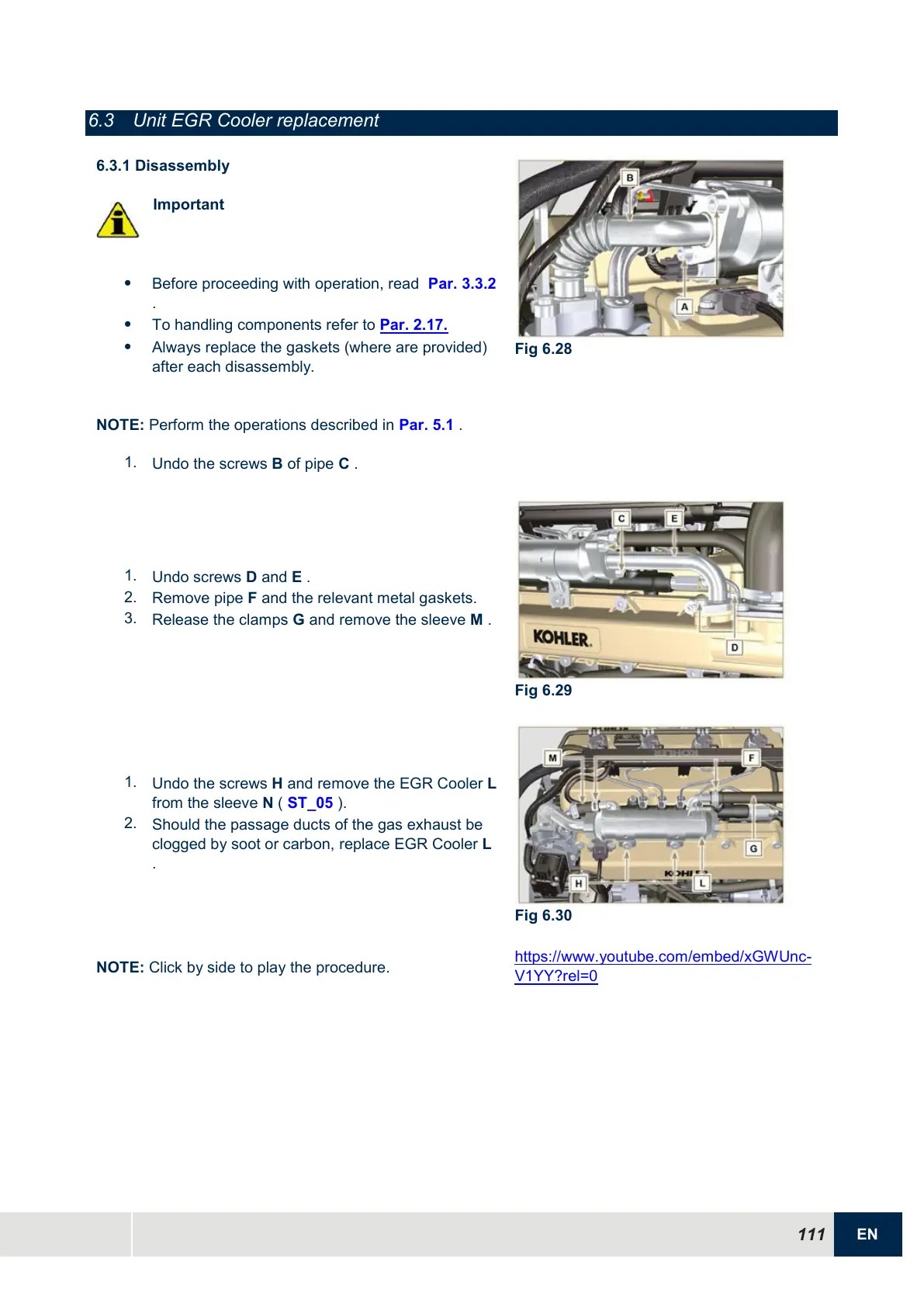

6.3 Unit EGR Cooler replacement
6.3.1 Disassembly
Important

Before proceeding with operation, read Par. 3.3.2
.

To handling components refer to Par. 2.17.

Always replace the gaskets (where are provided)
after each disassembly.
NOTE: Perform the operations described in Par. 5.1 .
1.
Undo the screws B of pipe C .
Fig 6.28
1.
Undo screws D and E .
2.
Remove pipe F and the relevant metal gaskets.
3.
Release the clamps G and remove the sleeve M .
Fig 6.29
1.
Undo the screws H and remove the EGR Cooler L
from the sleeve N ( ST_05 ).
2.
Should the passage ducts of the gas exhaust be
clogged by soot or carbon, replace EGR Cooler L
.
Fig 6.30
NOTE: Click by side to play the procedure.
https://www.youtube.com/embed/xGWUnc-
V1YY?rel=0
