Kohler KDI 1903 TCR Workshop Manual

135
EN

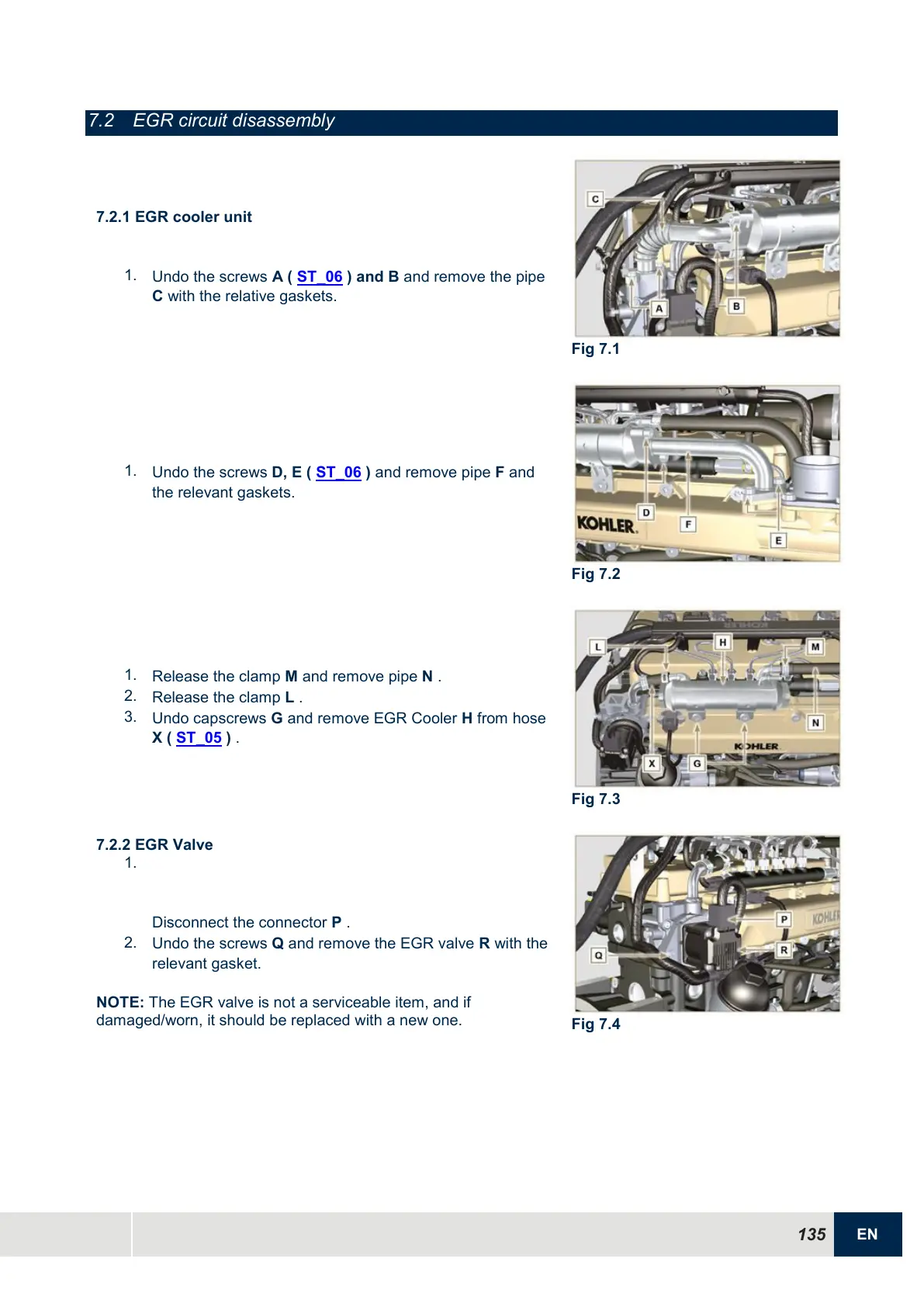

7.2 EGR circuit disassembly
7.2.1 EGR cooler unit
1.
Undo the screws A ( ST_06 ) and B and remove the pipe
C with the relative gaskets.
Fig 7.1
1.
Undo the screws D, E ( ST_06 ) and remove pipe F and
the relevant gaskets.
Fig 7.2
1.
Release the clamp M and remove pipe N .
2.
Release the clamp L .
3.
Undo capscrews G and remove EGR Cooler H from hose
X (
ST_05 ) .
Fig 7.3
7.2.2 EGR Valve
1.
Disconnect the connector P .
2.
Undo the screws Q and remove the EGR valve R with the
relevant gasket.
NOTE: The EGR valve is not a serviceable item, and if
damaged/worn, it should be replaced with a new one.
Fig 7.4
