11.16 DPF & DOC filter (replacement)
Danger

Highly carcinogenic material!

The dust contained inside the DPF is particularly fine and therefore classified as highly dangerous to
living beings.

Before proceeding to any operation, wear:
dust mask
gloves
goggles

Do not allow any other operator who is not equipped with the above mentioned protective equipment
to approach.
1.
Obtain a new replacement KIT for the DPF filter or a
replacement KIT with regenerated DPF filter from your
spare parts service.
Important

Before disassembling/assembling any sensors, see Par.
2.17.5 and 2.17.6

Always replace the seal P upon every assembly.

During disassembly, do not expose the DPF to the
surrounding environment for a long time and store it in a
sealed bag as soon as possible.

During disassembly operations, avoid using electric
screwdrivers as vibrations could release the dust inside
the DPF

Do not try to clean the DPF

Do not blow with compressed air

Do not release the DPF or the dust contained in it in the
environment

Dispose of the DPF only in authorised centres
1.
Perform the operations indicated in point 1 of Par. 11.15 .
2.
Open the package of the DPF replacement KIT, taking
care not to damage it.
3.
Unscrew screw A and loosen clamps B , then remove the
Delta-P sensor D .
4.
Disconnect pipes C from their unions J and remove the
Delta-P sensor D .
5.
Unscrew and remove unions J .

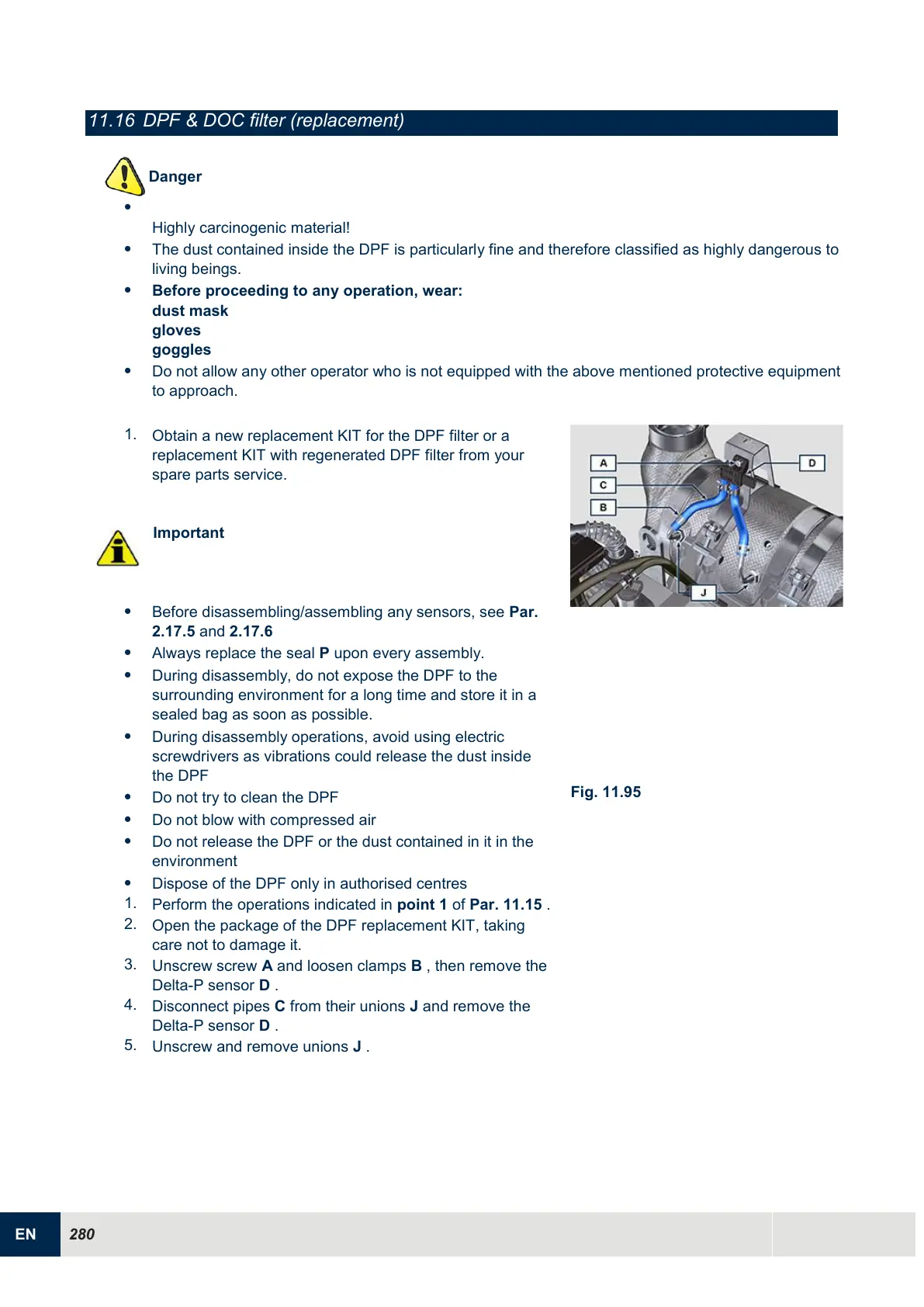

Fig. 11.95
