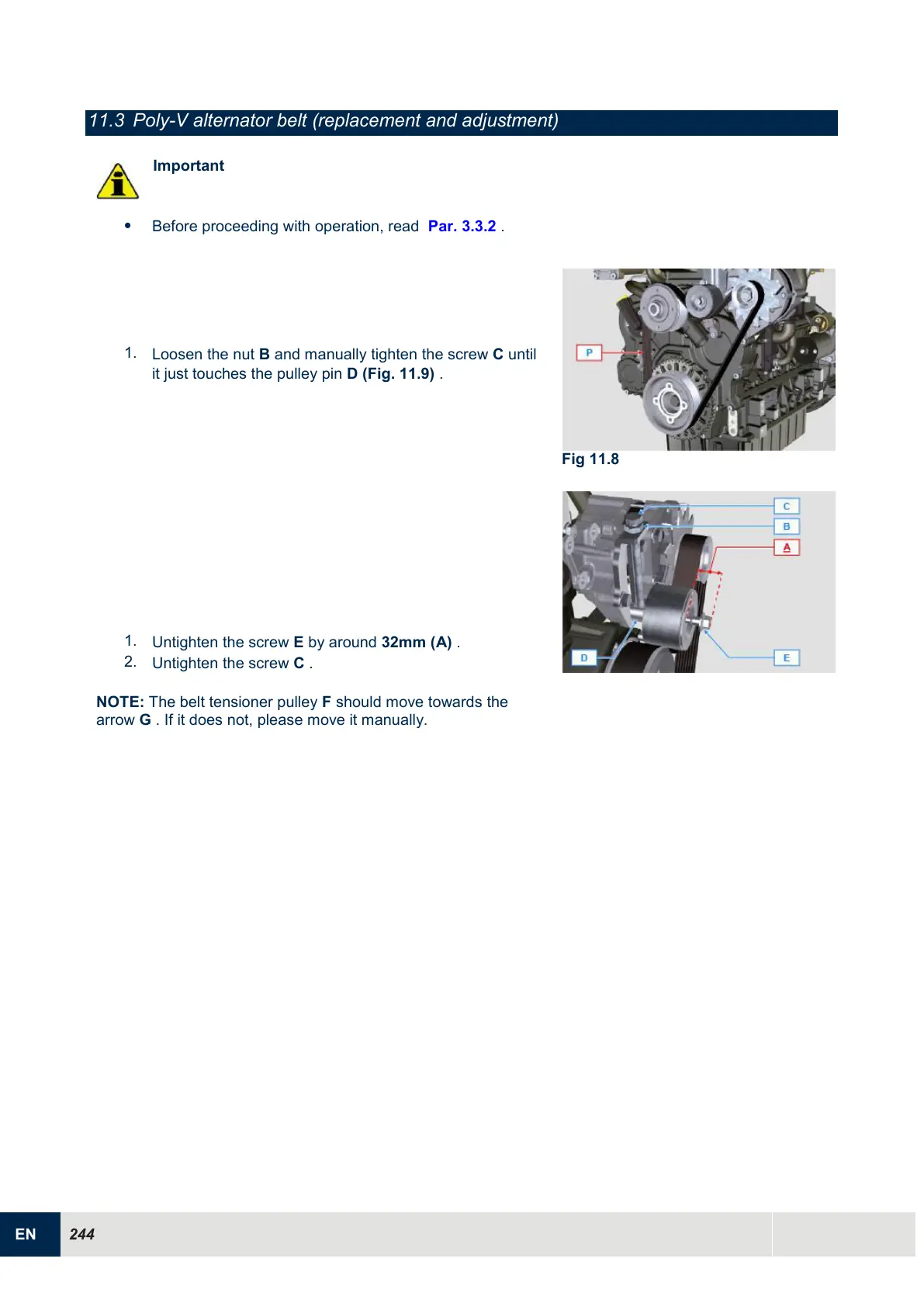

11.3 Poly-V alternator belt (replacement and adjustment)
Important

Before proceeding with operation, read Par. 3.3.2 .
1.
Loosen the nut B and manually tighten the screw C until
it just touches the pulley pin D (Fig. 11.9) .
Fig 11.8
1.
Untighten the screw E by around 32mm (A) .
2.
Untighten the screw C .
NOTE: The belt tensioner pulley F should move towards the
arrow G . If it does not, please move it manually.
