Kohler KDI 1903 TCR Workshop Manual

153
EN

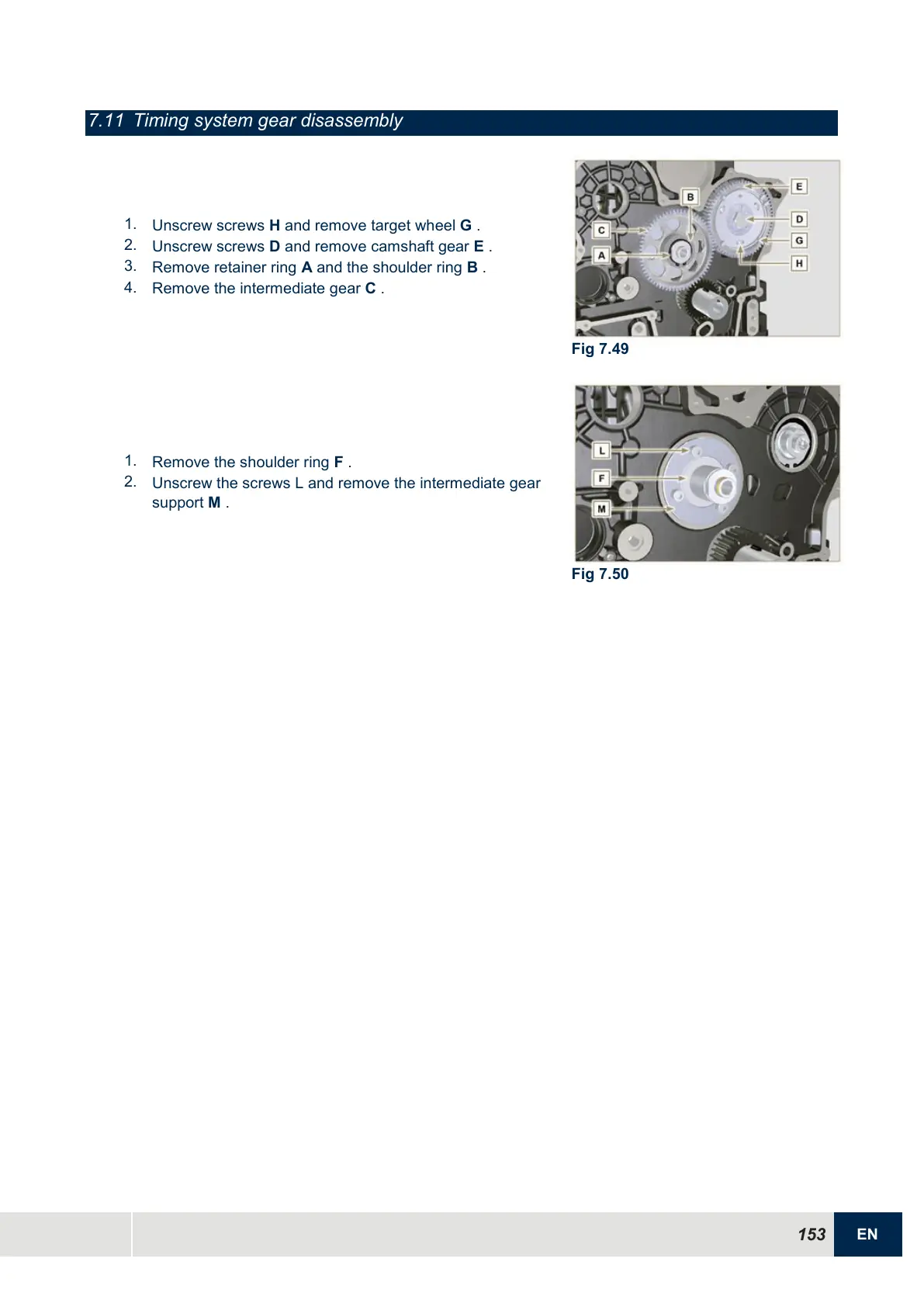

7.11 Timing system gear disassembly
1.
Unscrew screws H and remove target wheel G .
2.
Unscrew screws D and remove camshaft gear E .
3.
Remove retainer ring A and the shoulder ring B .
4.
Remove the intermediate gear C .
Fig 7.49
1.
Remove the shoulder ring F .
2.
Unscrew the screws L and remove the intermediate gear
support M .
Fig 7.50
