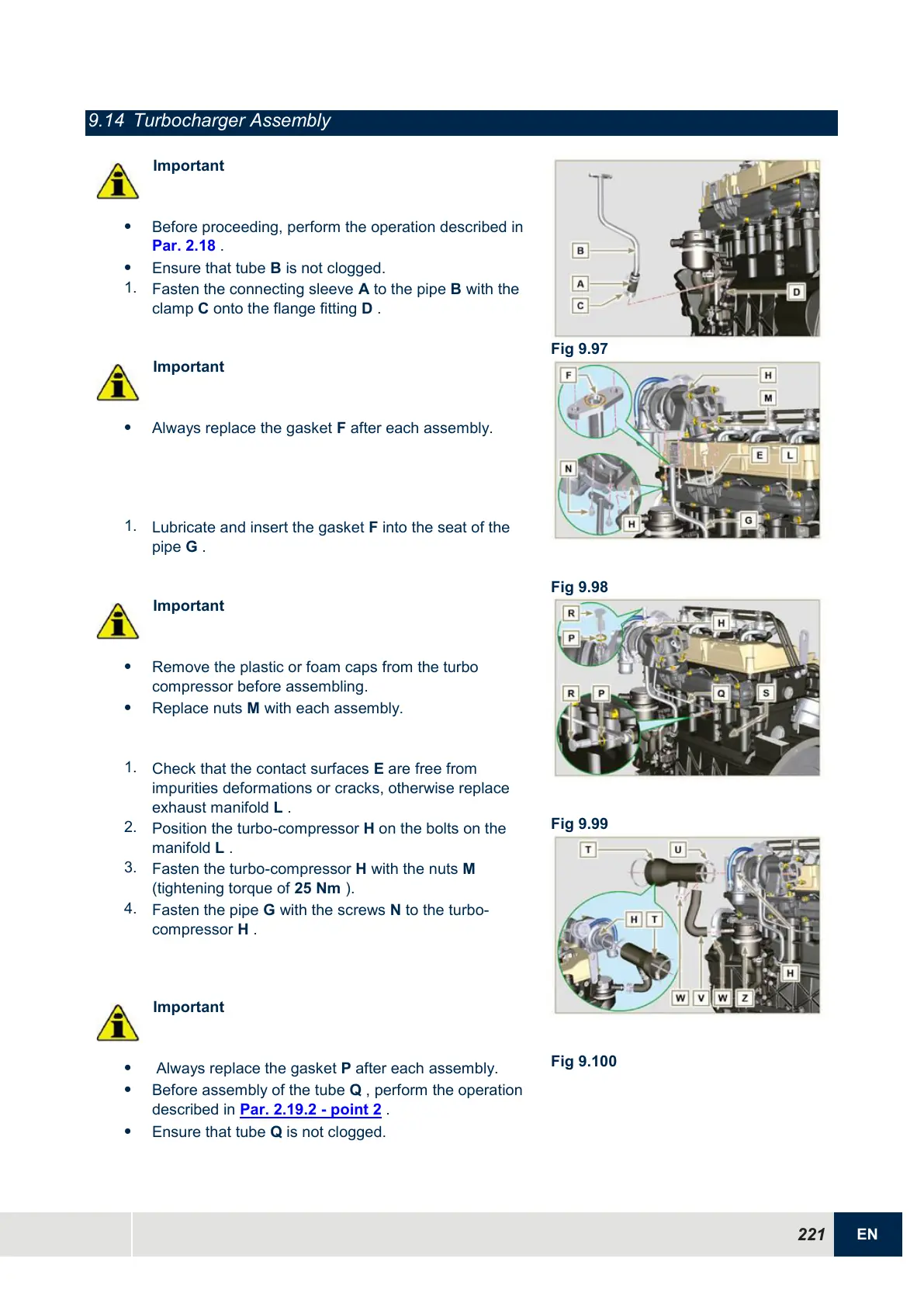

9.14 Turbocharger Assembly
Important

Before proceeding, perform the operation described in
Par. 2.18 .

Ensure that tube B is not clogged.
1.
Fasten the connecting sleeve A to the pipe B with the
clamp C onto the flange fitting D .
Important

Always replace the gasket F after each assembly.
1.
Lubricate and insert the gasket F into the seat of the
pipe G .
Important

Remove the plastic or foam caps from the turbo
compressor before assembling.

Replace nuts M with each assembly.
1.
Check that the contact surfaces E are free from
impurities deformations or cracks, otherwise replace
exhaust manifold L .
2.
Position the turbo-compressor H on the bolts on the
manifold L .
3.
Fasten the turbo-compressor H with the nuts M
(tightening torque of 25 Nm ).
4.
Fasten the pipe G with the screws N to the turbo-
compressor H .
Important

Always replace the gasket P after each assembly.

Before assembly of the tube Q , perform the operation
described in Par. 2.19.2 - point 2 .

Ensure that tube Q is not clogged.
Fig 9.97
Fig 9.98
Fig 9.99
Fig 9.100
