Kohler KDI 1903 TCR Workshop Manual

EN
222

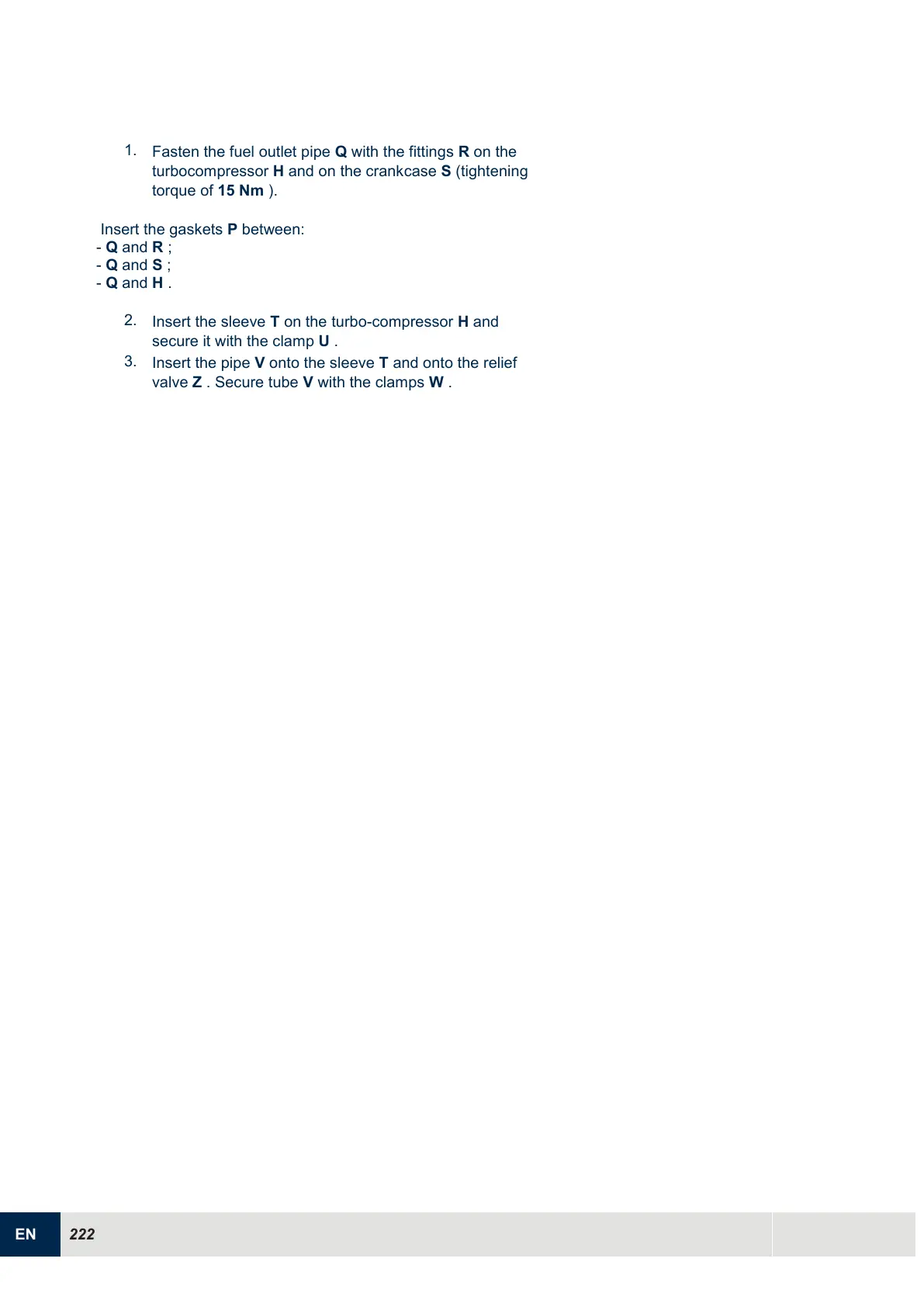

1.
Fasten the fuel outlet pipe Q with the fittings R on the
turbocompressor H and on the crankcase S (tightening
torque of 15 Nm ).
Insert the gaskets P between:
- Q and R ;
- Q and S ;
- Q and H .
2.
Insert the sleeve T on the turbo-compressor H and
secure it with the clamp U .
3.
Insert the pipe V onto the sleeve T and onto the relief
valve Z . Secure tube V with the clamps W .
