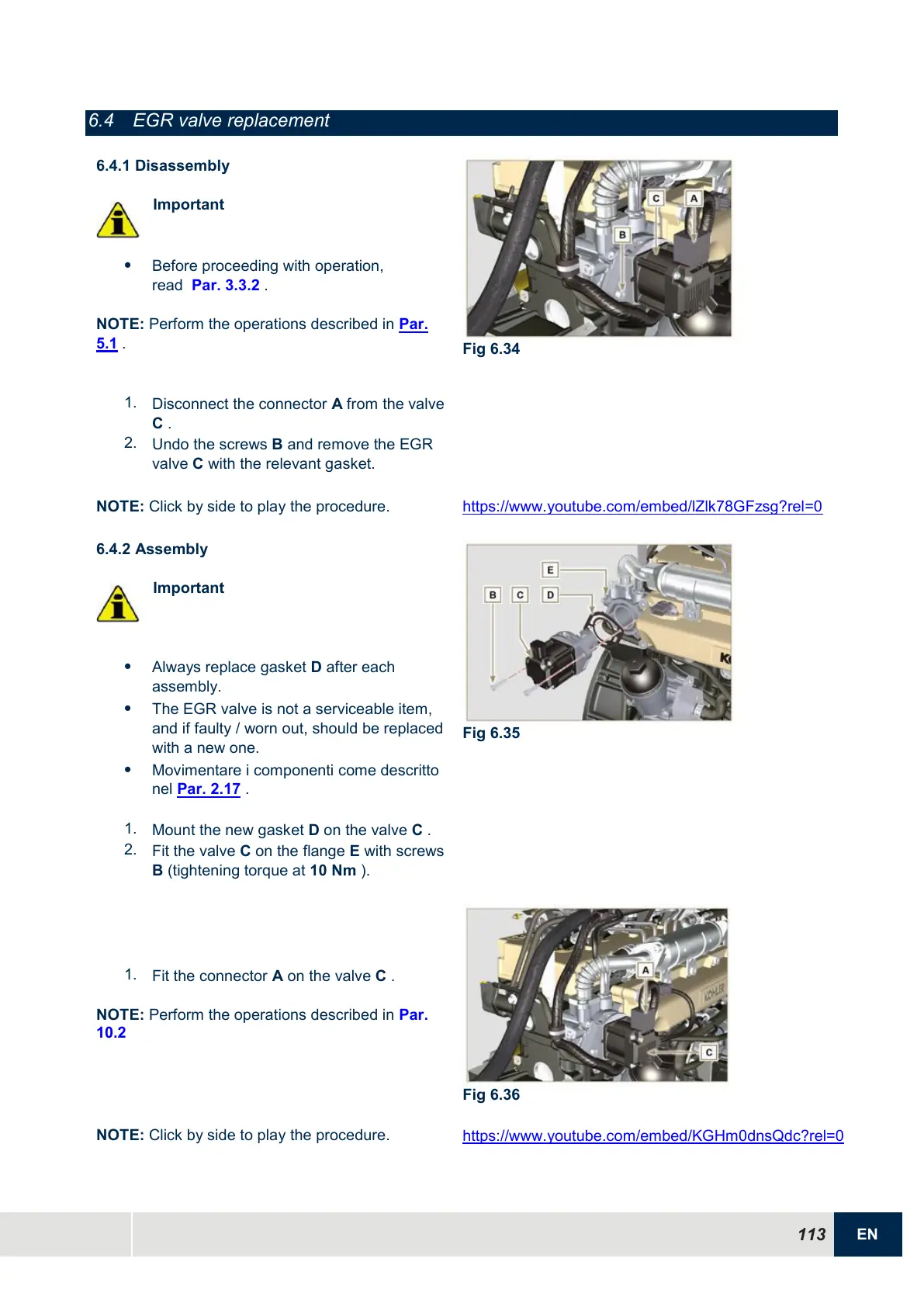

6.4 EGR valve replacement
6.4.1 Disassembly
Important

Before proceeding with operation,
read Par. 3.3.2 .
NOTE:
Perform the operations described in
Par.
5.1
.
1.
Disconnect the connector A from the valve
C .
2.
Undo the screws B and remove the EGR
valve C with the relevant gasket.
Fig 6.34
NOTE:
Click by side to play the procedure.
https://www.youtube.com/embed/lZlk78GFzsg?rel=0
6.4.2 Assembly
Important

Always replace gasket D after each
assembly.

The EGR valve is not a serviceable item,
and if faulty / worn out, should be replaced
with a new one.

Movimentare i componenti come descritto
nel
Par. 2.17 .
1.
Mount the new gasket D on the valve C .
2.
Fit the valve C on the flange E with screws
B (tightening torque at 10 Nm ).
Fig 6.35
1.
Fit the connector A on the valve C .
NOTE: Perform the operations described in Par.
10.2
Fig 6.36
NOTE:
Click by side to play the procedure.
https://www.youtube.com/embed/KGHm0dnsQdc?rel=0
