Kohler KDI 1903 TCR Workshop Manual

EN
118

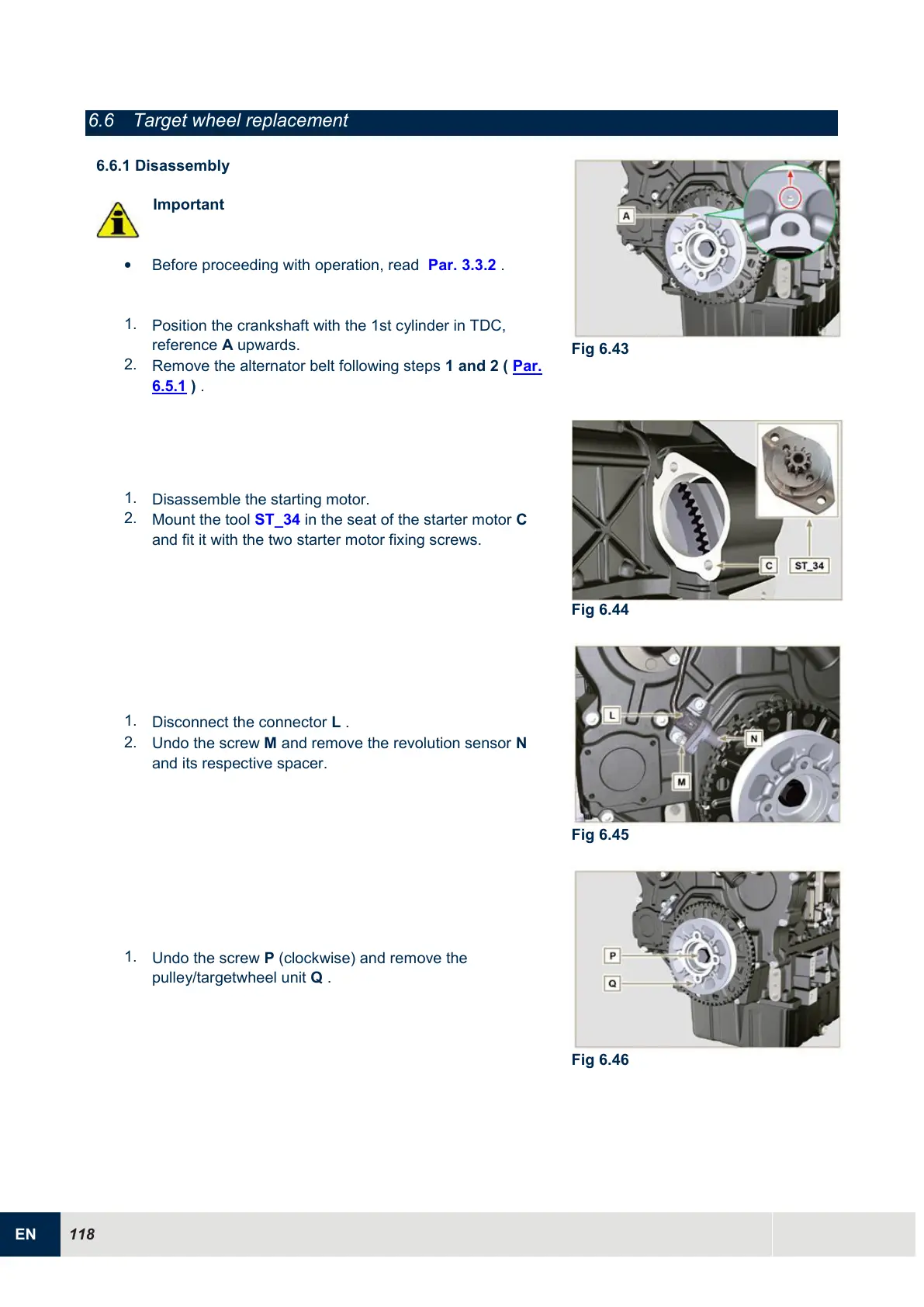

6.6 Target wheel replacement
6.6.1 Disassembly
Important

Before proceeding with operation, read Par. 3.3.2 .
1.
Position the crankshaft with the 1st cylinder in TDC,
reference A upwards.
2.
Remove the alternator belt following steps 1 and 2 ( Par.
6.5.1 ) .
Fig 6.43
1.
Disassemble the starting motor.
2.
Mount the tool ST_34 in the seat of the starter motor C
and fit it with the two starter motor fixing screws.
Fig 6.44
1.
Disconnect the connector L .
2.
Undo the screw M and remove the revolution sensor N
and its respective spacer.
Fig 6.45
1.
Undo the screw P (clockwise) and remove the
pulley/targetwheel unit Q .
Fig 6.46
