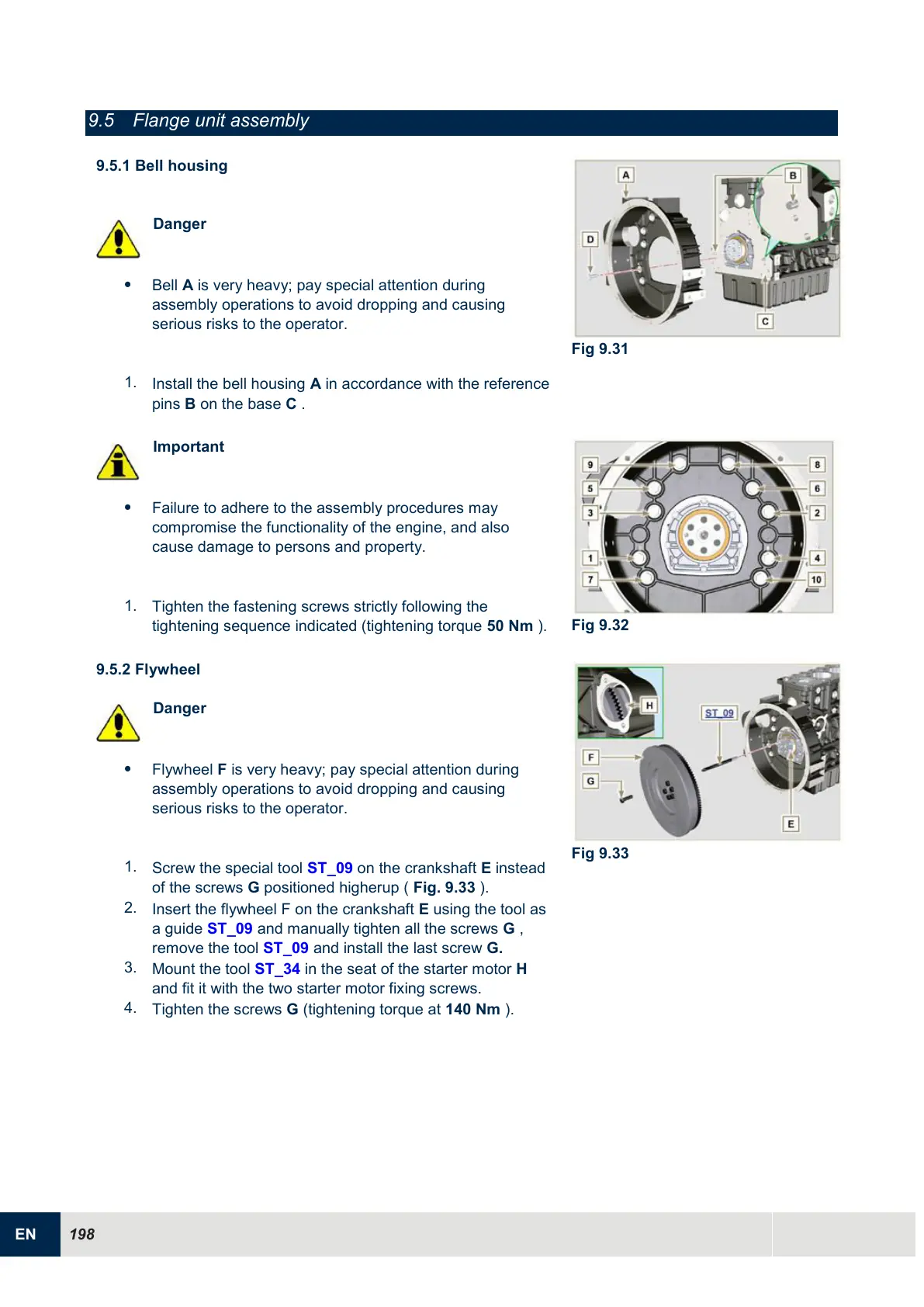

9.5 Flange unit assembly
9.5.1 Bell housing
Danger

Bell A is very heavy; pay special attention during
assembly operations to avoid dropping and causing
serious risks to the operator.
1.
Install the bell housing A in accordance with the reference
pins B on the base C .
Fig 9.31
Important

Failure to adhere to the assembly procedures may
compromise the functionality of the engine, and also
cause damage to persons and property.
1.
Tighten the fastening screws strictly following the
tightening sequence indicated (tightening torque 50 Nm ).
Fig 9.32
9.5.2 Flywheel
Danger

Flywheel F is very heavy; pay special attention during
assembly operations to avoid dropping and causing
serious risks to the operator.
1.
Screw the special tool ST_09 on the crankshaft E instead
of the screws G positioned higherup ( Fig. 9.33 ).
2.
Insert the flywheel F on the crankshaft E using the tool as
a guide ST_09 and manually tighten all the screws G ,
remove the tool ST_09 and install the last screw G.
3.
Mount the tool ST_34 in the seat of the starter motor H
and fit it with the two starter motor fixing screws.
4.
Tighten the screws G (tightening torque at 140 Nm ).
