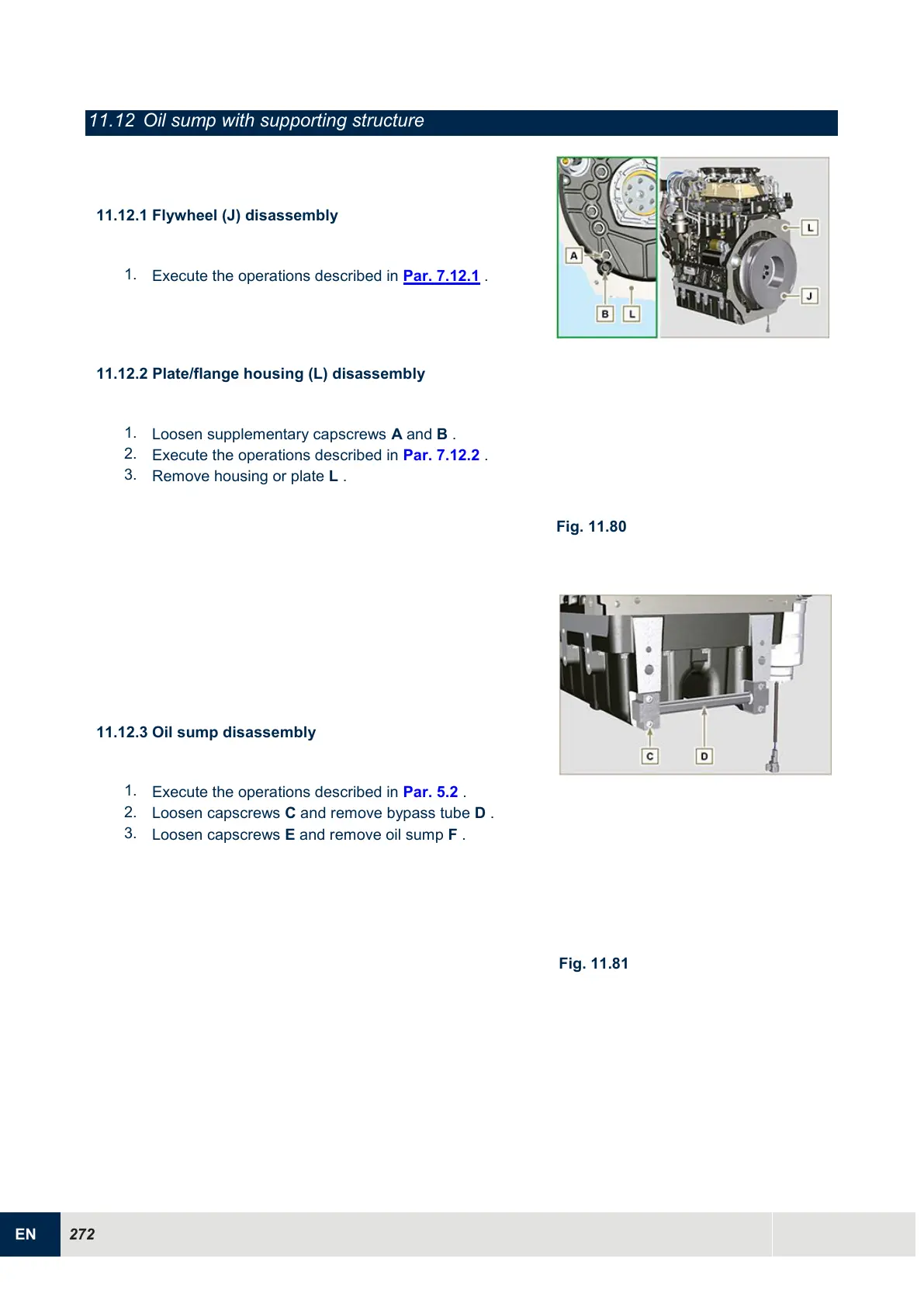

11.12 Oil sump with supporting structure
11.12.1 Flywheel (J) disassembly
1.
Execute the operations described in Par. 7.12.1 .
11.12.2 Plate/flange housing (L) disassembly
1.
Loosen supplementary capscrews A and B .
2.
Execute the operations described in Par. 7.12.2 .
3.
Remove housing or plate L .
Fig. 11.80
11.12.3 Oil sump disassembly
1.
Execute the operations described in Par. 5.2 .
2.
Loosen capscrews C and remove bypass tube D .
3.
Loosen capscrews E and remove oil sump F .
Fig. 11.81
