Kohler KDI 1903 TCR Workshop Manual

219
EN

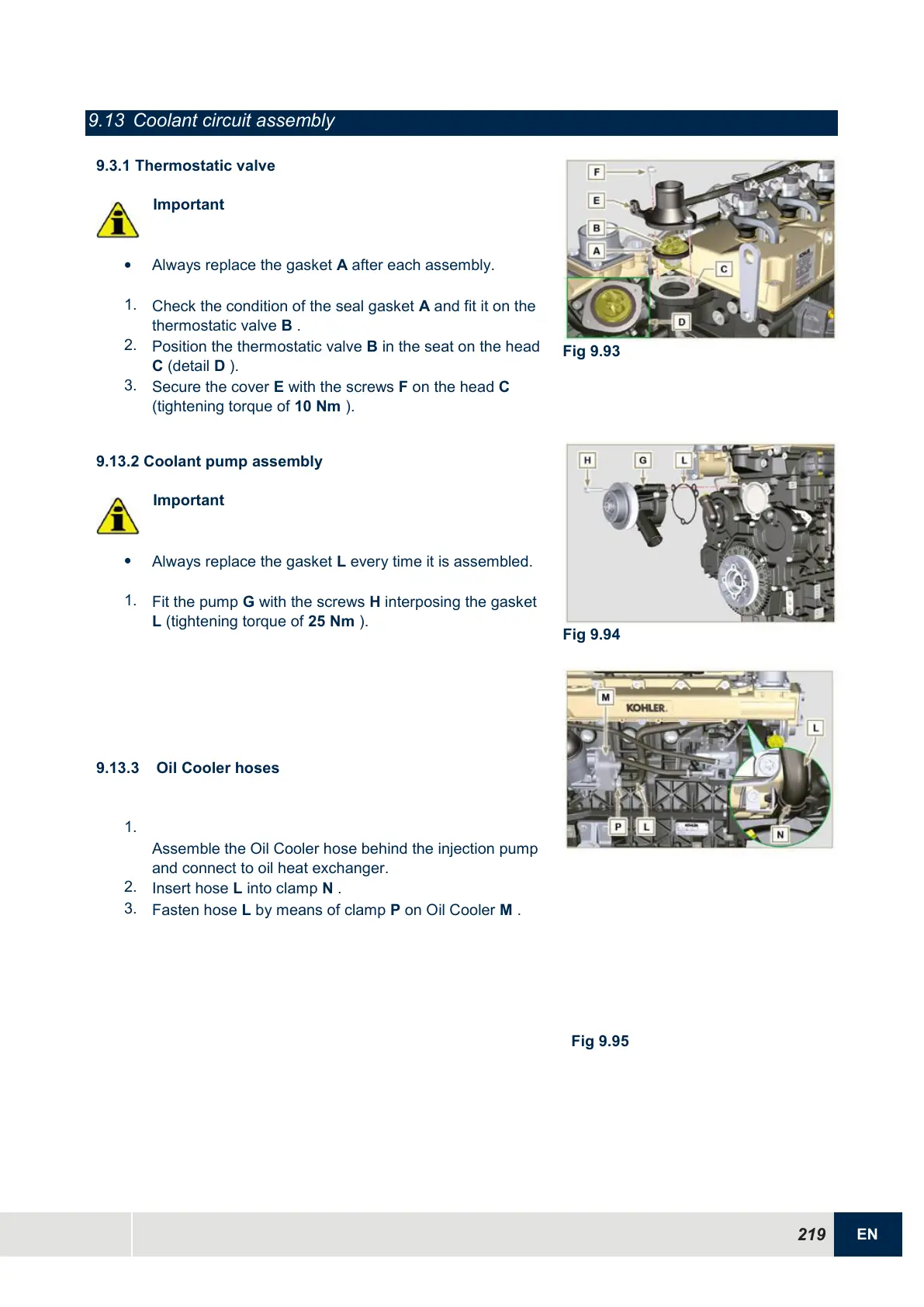

9.13 Coolant circuit assembly
9.3.1 Thermostatic valve
Important

Always replace the gasket A after each assembly.
1.
Check the condition of the seal gasket A and fit it on the
thermostatic valve B .
2.
Position the thermostatic valve B in the seat on the head
C (detail D ).
3.
Secure the cover E with the screws F on the head C
(tightening torque of 10 Nm ).
Fig 9.93
9.13.2 Coolant pump assembly
Important

Always replace the gasket L every time it is assembled.
1.
Fit the pump G with the screws H interposing the gasket
L (tightening torque of 25 Nm ).
Fig 9.94
9.13.3 Oil Cooler hoses
1.
Assemble the Oil Cooler hose behind the injection pump
and connect to oil heat exchanger.
2.
Insert hose L into clamp N .
3.
Fasten hose L by means of clamp P on Oil Cooler M .
Fig 9.95
