Kohler KDI 1903 TCR Workshop Manual

223
EN

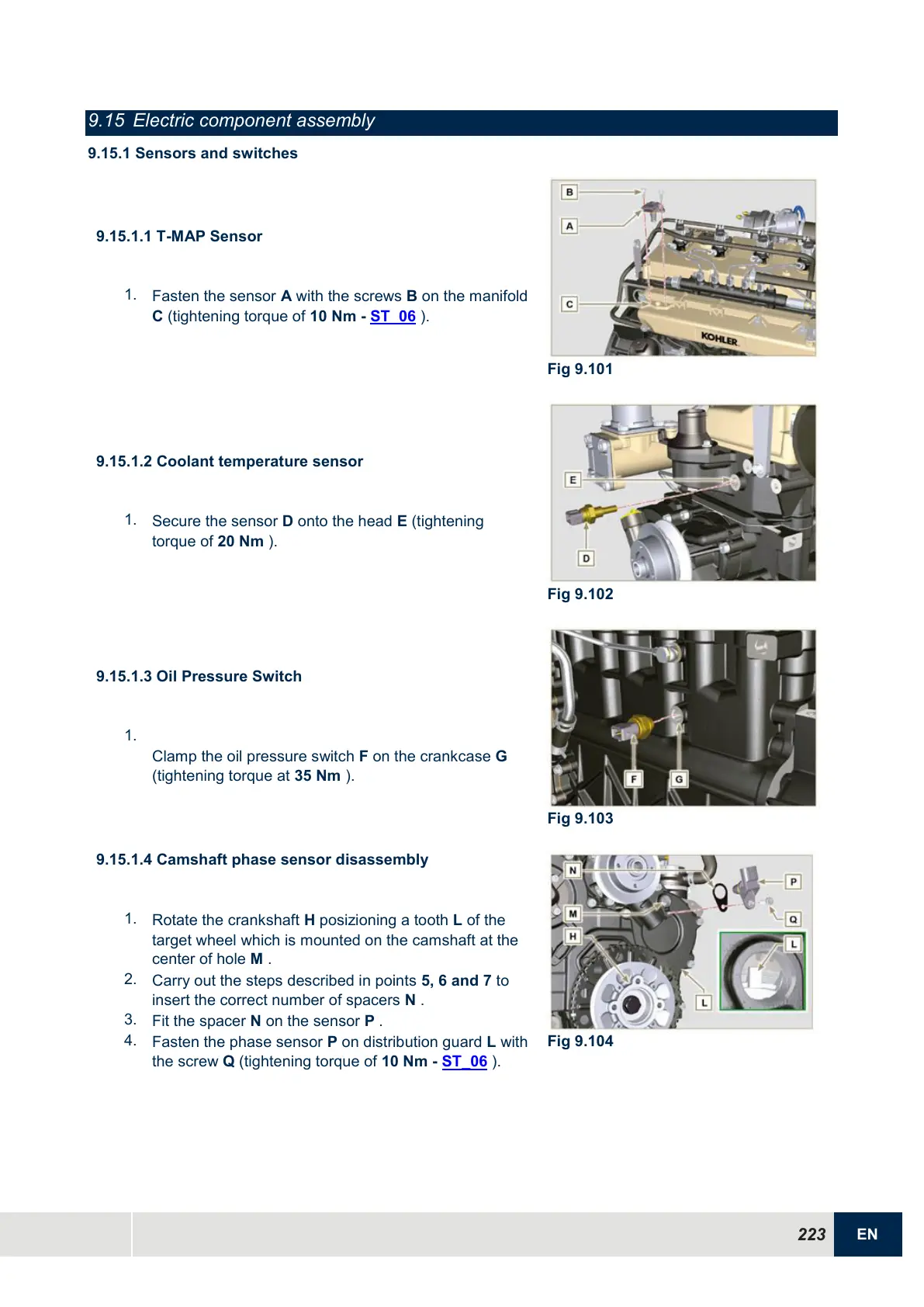

9.15 Electric component assembly
9.15.1 Sensors and switches
9.15.1.1 T-MAP Sensor
1.
Fasten the sensor A with the screws B on the manifold
C (tightening torque of 10 Nm - ST_06 ).
Fig 9.101
9.15.1.2 Coolant temperature sensor
1.
Secure the sensor D onto the head E (tightening
torque of 20 Nm ).
Fig 9.102
9.15.1.3 Oil Pressure Switch
1.
Clamp the oil pressure switch F on the crankcase G
(tightening torque at 35 Nm ).
Fig 9.103
9.15.1.4 Camshaft phase sensor disassembly
1.
Rotate the crankshaft H posizioning a tooth L of the
target wheel which is mounted on the camshaft at the
center of hole M .
2.
Carry out the steps described in points 5, 6 and 7 to
insert the correct number of spacers N .
3.
Fit the spacer N on the sensor P .
4.
Fasten the phase sensor P on distribution guard L with
the screw Q (tightening torque of 10 Nm - ST_06 ).
Fig 9.104
