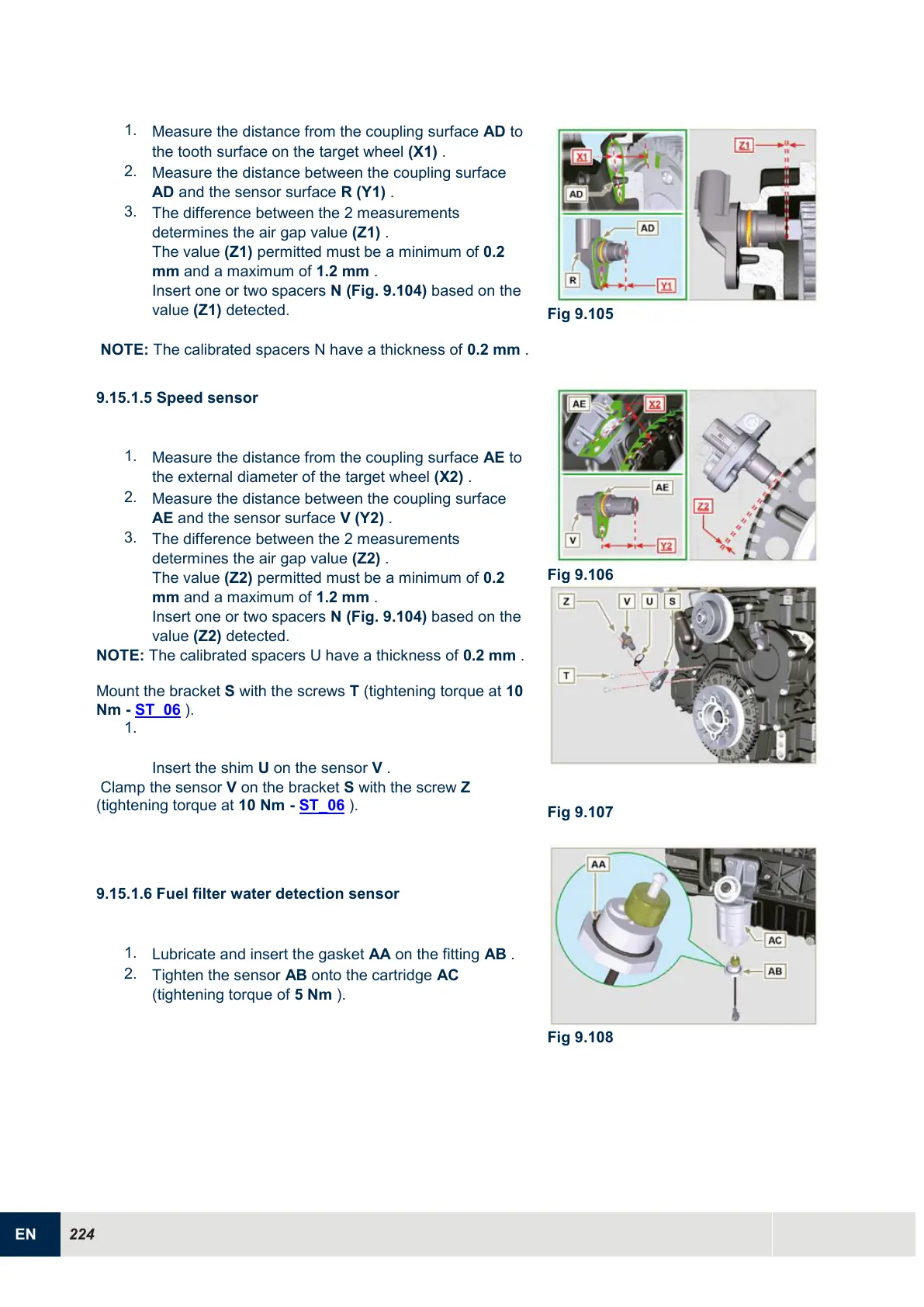

1.
Measure the distance from the coupling surface AD to
the tooth surface on the target wheel (X1) .
2.
Measure the distance between the coupling surface
AD and the sensor surface R (Y1) .
3.
The difference between the 2 measurements
determines the air gap value (Z1) .
The value (Z1) permitted must be a minimum of 0.2
mm and a maximum of 1.2 mm .
Insert one or two spacers N (Fig. 9.104) based on the
value (Z1) detected.
NOTE: The calibrated spacers N have a thickness of 0.2 mm .
Fig 9.105
9.15.1.5 Speed sensor
1.
Measure the distance from the coupling surface AE to
the external diameter of the target wheel (X2) .
2.
Measure the distance between the coupling surface
AE and the sensor surface V (Y2) .
3.
The difference between the 2 measurements
determines the air gap value (Z2) .
The value (Z2) permitted must be a minimum of 0.2
mm and a maximum of 1.2 mm .
Insert one or two spacers N (Fig. 9.104) based on the
value (Z2) detected.
NOTE: The calibrated spacers U have a thickness of 0.2 mm .
Mount the bracket S with the screws T (tightening torque at 10
Nm -
ST_06 ).
1.
Insert the shim U on the sensor V .
Clamp the sensor V on the bracket S with the screw Z
(tightening torque at 10 Nm - ST_06 ).
Fig 9.106
Fig 9.107
9.15.1.6 Fuel filter water detection sensor
1.
Lubricate and insert the gasket AA on the fitting AB .
2.
Tighten the sensor AB onto the cartridge AC
(tightening torque of 5 Nm ).
Fig 9.108
