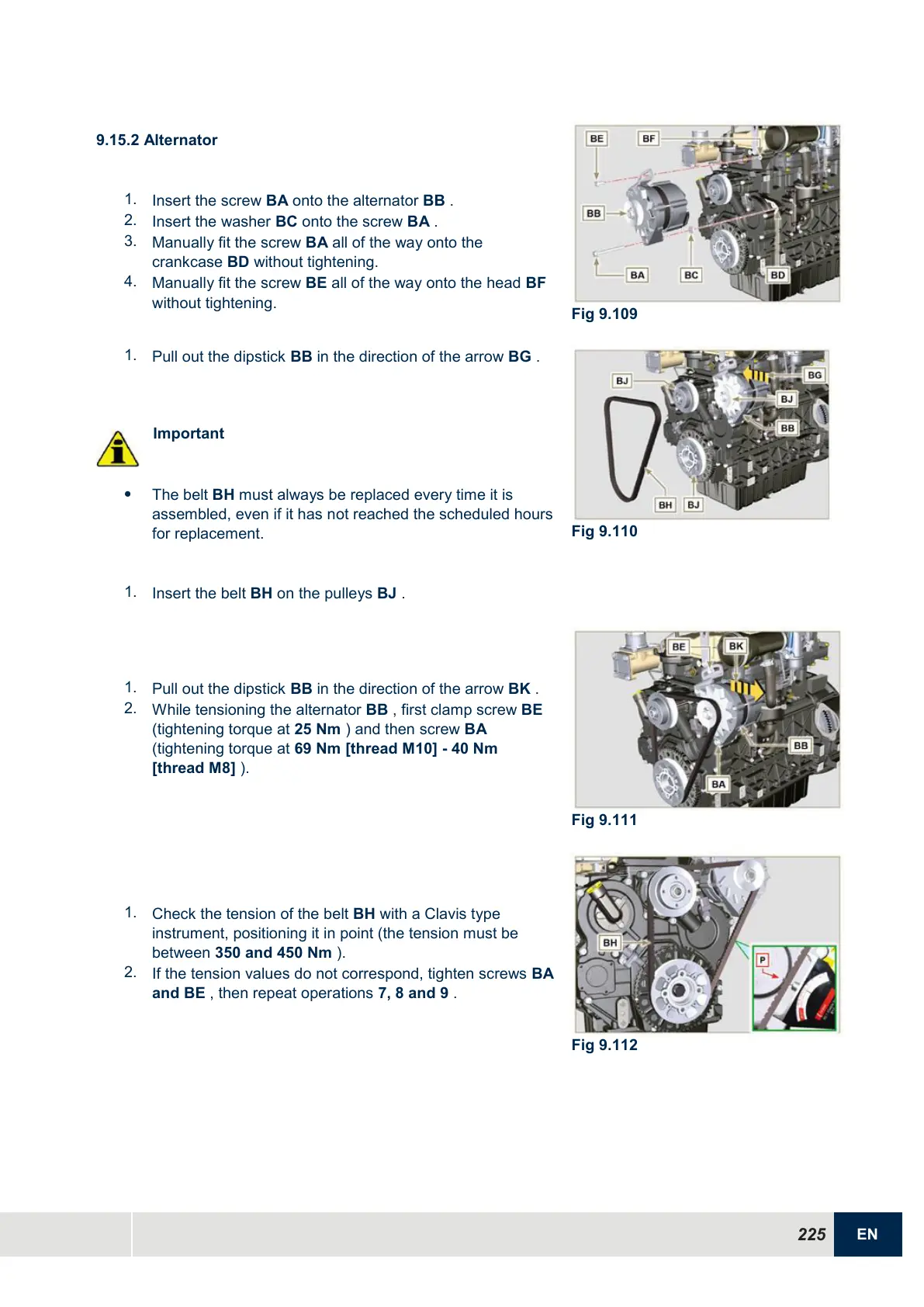

9.15.2 Alternator
1.
Insert the screw BA onto the alternator BB .
2.
Insert the washer BC onto the screw BA .
3.
Manually fit the screw BA all of the way onto the
crankcase BD without tightening.
4.
Manually fit the screw BE all of the way onto the head BF
without tightening.
Fig 9.109
1.
Pull out the dipstick BB in the direction of the arrow BG .
Important

The belt BH must always be replaced every time it is
assembled, even if it has not reached the scheduled hours
for replacement.
1.
Insert the belt BH on the pulleys BJ .
Fig 9.110
1.
Pull out the dipstick BB in the direction of the arrow BK .
2.
While tensioning the alternator BB , first clamp screw BE
(tightening torque at 25 Nm ) and then screw BA
(tightening torque at 69 Nm [thread M10] - 40 Nm
[thread M8] ).
Fig 9.111
1.
Check the tension of the belt BH with a Clavis type
instrument, positioning it in point (the tension must be
between 350 and 450 Nm ).
2.
If the tension values do not correspond, tighten screws BA
and BE , then repeat operations 7, 8 and 9 .
Fig 9.112
