Kohler KDI 1903 TCR

EN
226

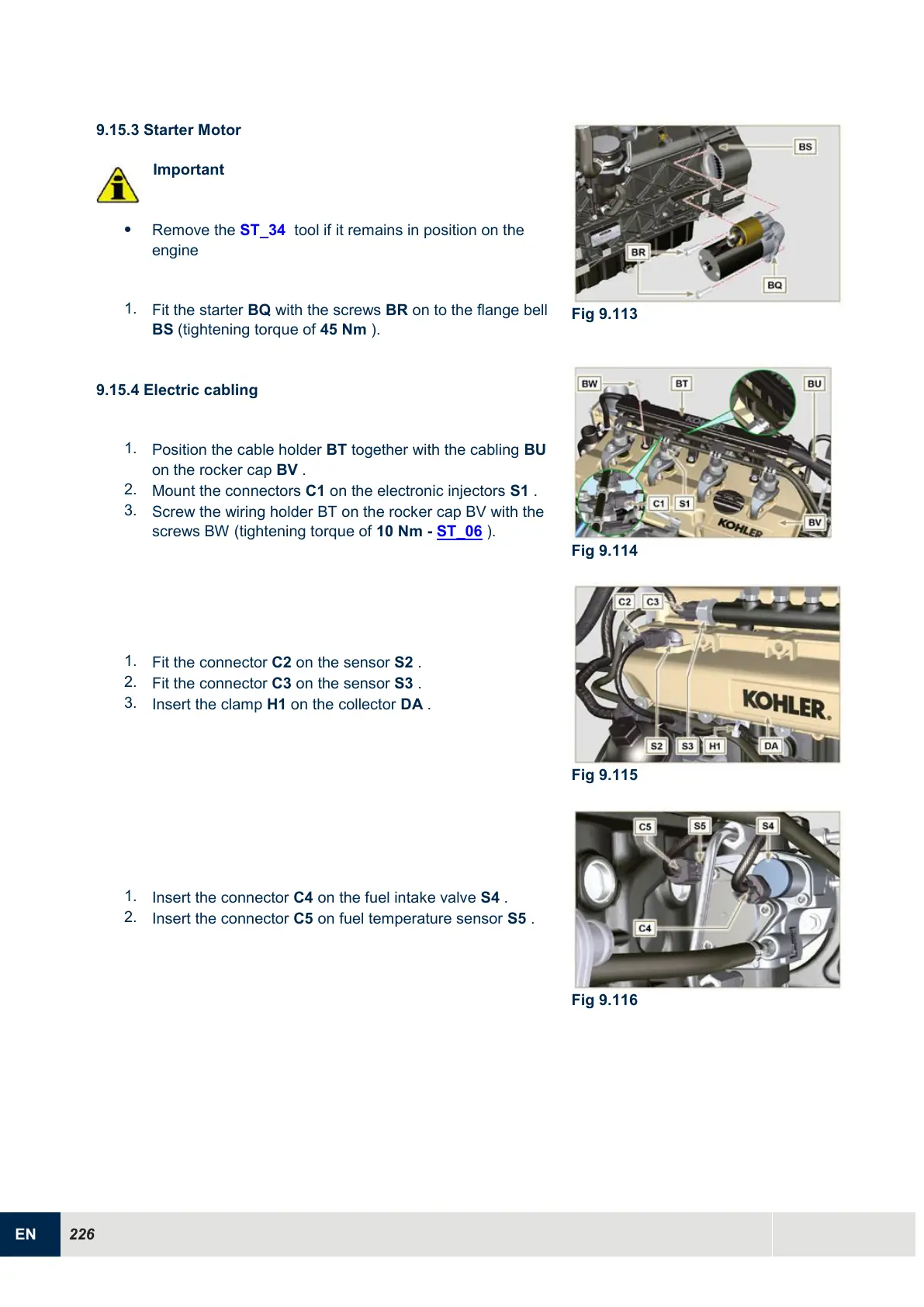

9.15.3 Starter Motor
Important

Remove the ST_34 tool if it remains in position on the
engine
1.
Fit the starter BQ with the screws BR on to the flange bell
BS (tightening torque of 45 Nm ).
Fig 9.113
9.15.4 Electric cabling
1.
Position the cable holder BT together with the cabling BU
on the rocker cap BV .
2.
Mount the connectors C1 on the electronic injectors S1 .
3.
Screw the wiring holder BT on the rocker cap BV with the
screws BW (tightening torque of 10 Nm - ST_06 ).
Fig 9.114
1.
Fit the connector C2 on the sensor S2 .
2.
Fit the connector C3 on the sensor S3 .
3.
Insert the clamp H1 on the collector DA .
Fig 9.115
1.
Insert the connector C4 on the fuel intake valve S4 .
2.
Insert the connector C5 on fuel temperature sensor S5 .
Fig 9.116
