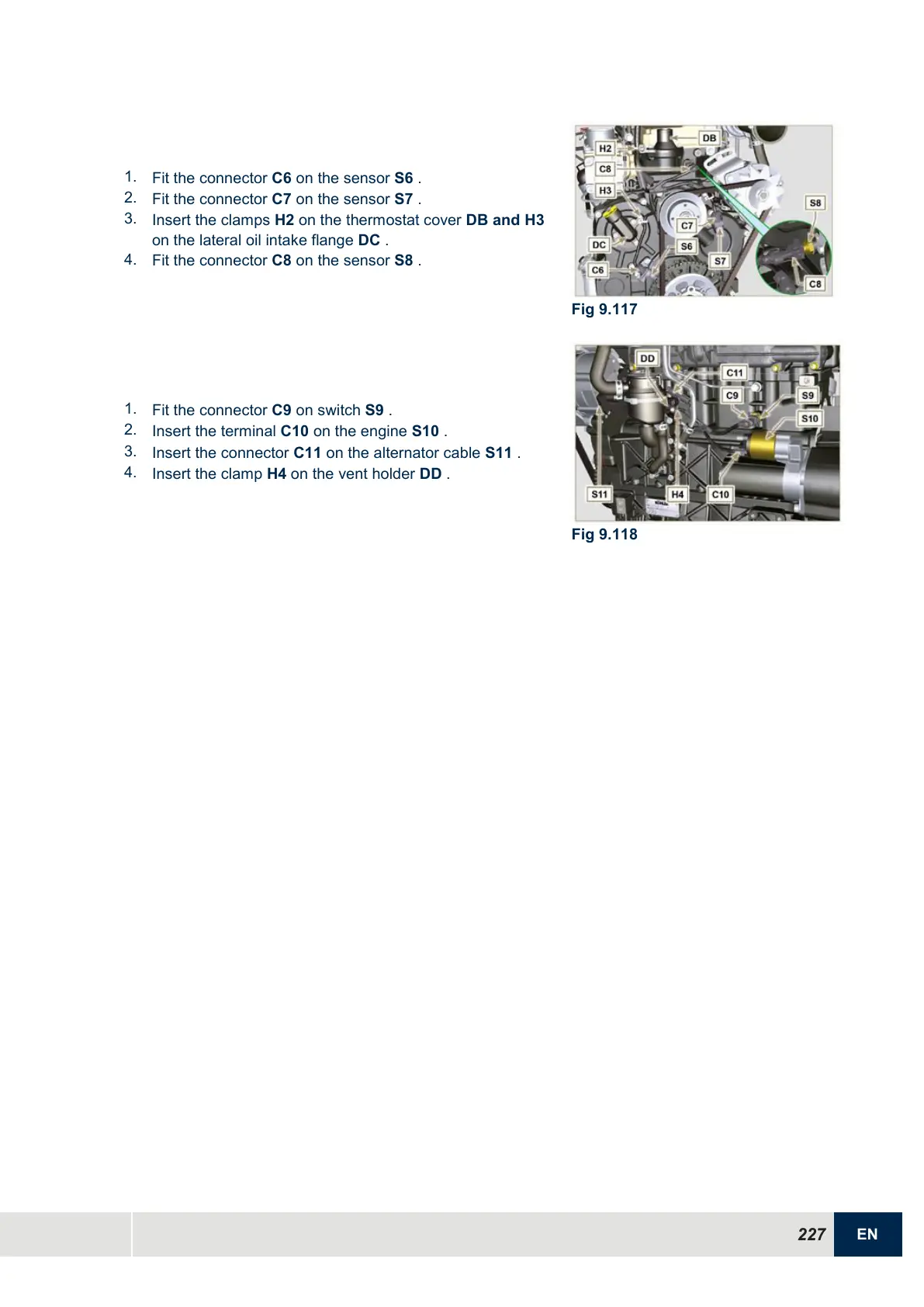

1.
Fit the connector C6 on the sensor S6 .
2.
Fit the connector C7 on the sensor S7 .
3.
Insert the clamps H2 on the thermostat cover DB and H3
on the lateral oil intake flange DC .
4.
Fit the connector C8 on the sensor S8 .
Fig 9.117
1.
Fit the connector C9 on switch S9 .
2.
Insert the terminal C10 on the engine S10 .
3.
Insert the connector C11 on the alternator cable S11 .
4.
Insert the clamp H4 on the vent holder DD .
Fig 9.118
