Kohler KDI 1903 TCR Workshop Manual

EN
248

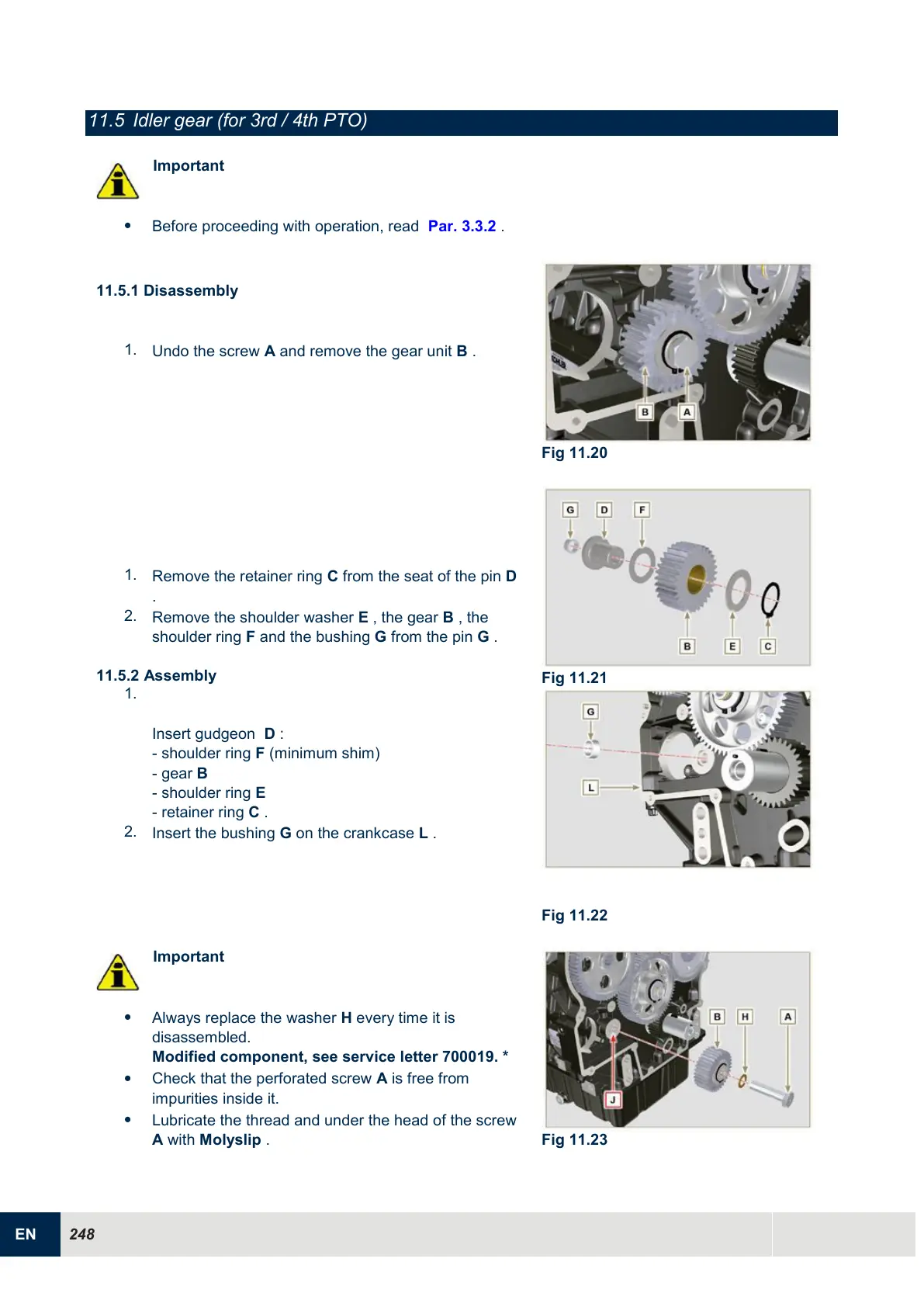

11.5 Idler gear (for 3rd / 4th PTO)
Important

Before proceeding with operation, read Par. 3.3.2 .
11.5.1 Disassembly
1.
Undo the screw A and remove the gear unit B .
Fig 11.20
1.
Remove the retainer ring C from the seat of the pin D
.
2.
Remove the shoulder washer E , the gear B , the
shoulder ring F and the bushing G from the pin G .
11.5.2 Assembly
1.
Insert gudgeon D :
- shoulder ring F (minimum shim)
- gear B
- shoulder ring E
- retainer ring C .
2.
Insert the bushing G on the crankcase L .
Fig 11.21
Fig 11.22
Important

Always replace the washer H every time it is
disassembled.
Modified component, see service letter 700019. *

Check that the perforated screw A is free from
impurities inside it.

Lubricate the thread and under the head of the screw
A with Molyslip .
Fig 11.23
