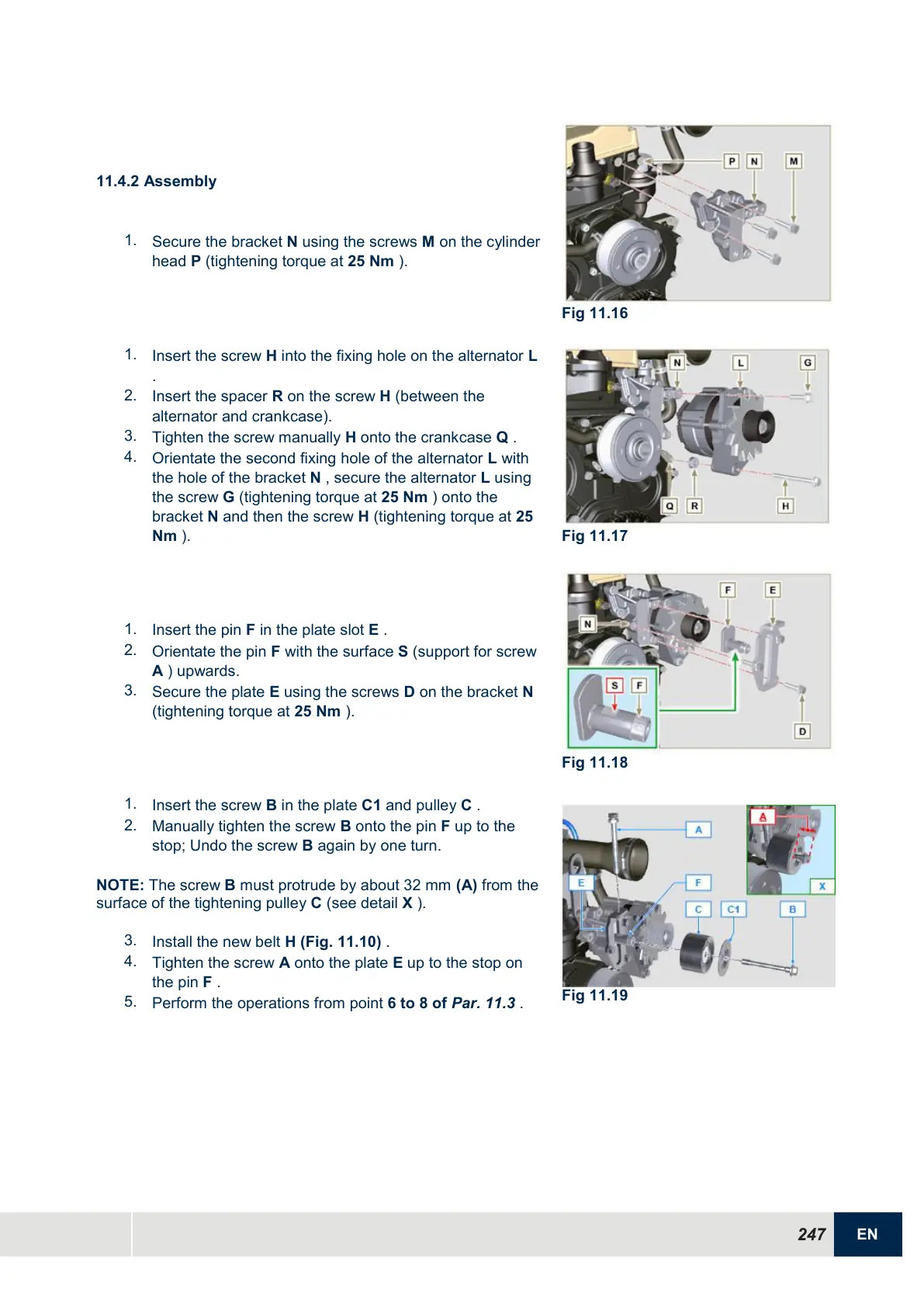

11.4.2
Assembly
1.
Secure the bracket N using the screws M on the cylinder
head P (tightening torque at 25 Nm ).
1.
Insert the screw H into the fixing hole on the alternator L
.
2.
Insert the spacer R on the screw H (between the
alternator and crankcase).
3.
Tighten the screw manually H onto the crankcase Q .
4.
Orientate the second fixing hole of the alternator L with
the hole of the bracket N , secure the alternator L using
the screw G (tightening torque at 25 Nm ) onto the
bracket N and then the screw H (tightening torque at 25
Nm ).
1.
Insert the pin F in the plate slot E .
2.
Orientate the pin F with the surface S (support for screw
A ) upwards.
3.
Secure the plate E using the screws D on the bracket N
(tightening torque at 25 Nm ).
1.
Insert the screw B in the plate C1 and pulley C .
2.
Manually tighten the screw B onto the pin F up to the
stop; Undo the screw B again by one turn.
NOTE: The screw B must protrude by about 32 mm (A) from the
surface of the tightening pulley C (see detail X ).
3.
Install the new belt H (Fig. 11.10) .
4.
Tighten the screw A onto the plate E up to the stop on
the pin F .
5.
Perform the operations from point 6 to 8 of Par. 11.3 .
