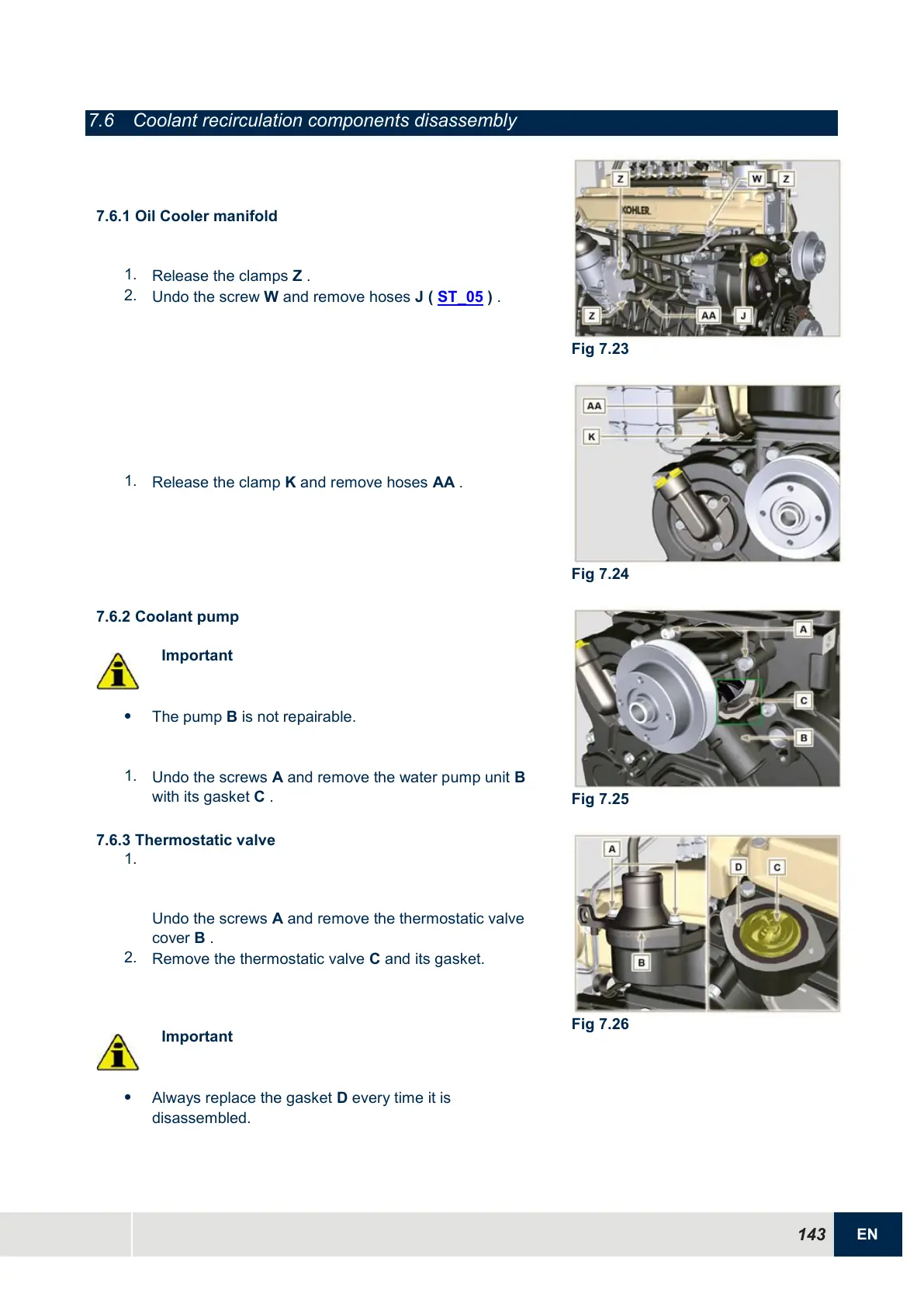

7.6 Coolant recirculation components disassembly
7.6.1 Oil Cooler manifold
1.
Release the clamps Z .
2.
Undo the screw W and remove hoses J ( ST_05 ) .
Fig 7.23
1.
Release the clamp K and remove hoses AA .
Fig 7.24
7.6.2 Coolant pump
Important

The pump B is not repairable.
1.
Undo the screws A and remove the water pump unit B
with its gasket C .
Fig 7.25
7.6.3 Thermostatic valve
1.
Undo the screws A and remove the thermostatic valve
cover B .
2.
Remove the thermostatic valve C and its gasket.
Important

Always replace the gasket D every time it is
disassembled.
Fig 7.26
