EN

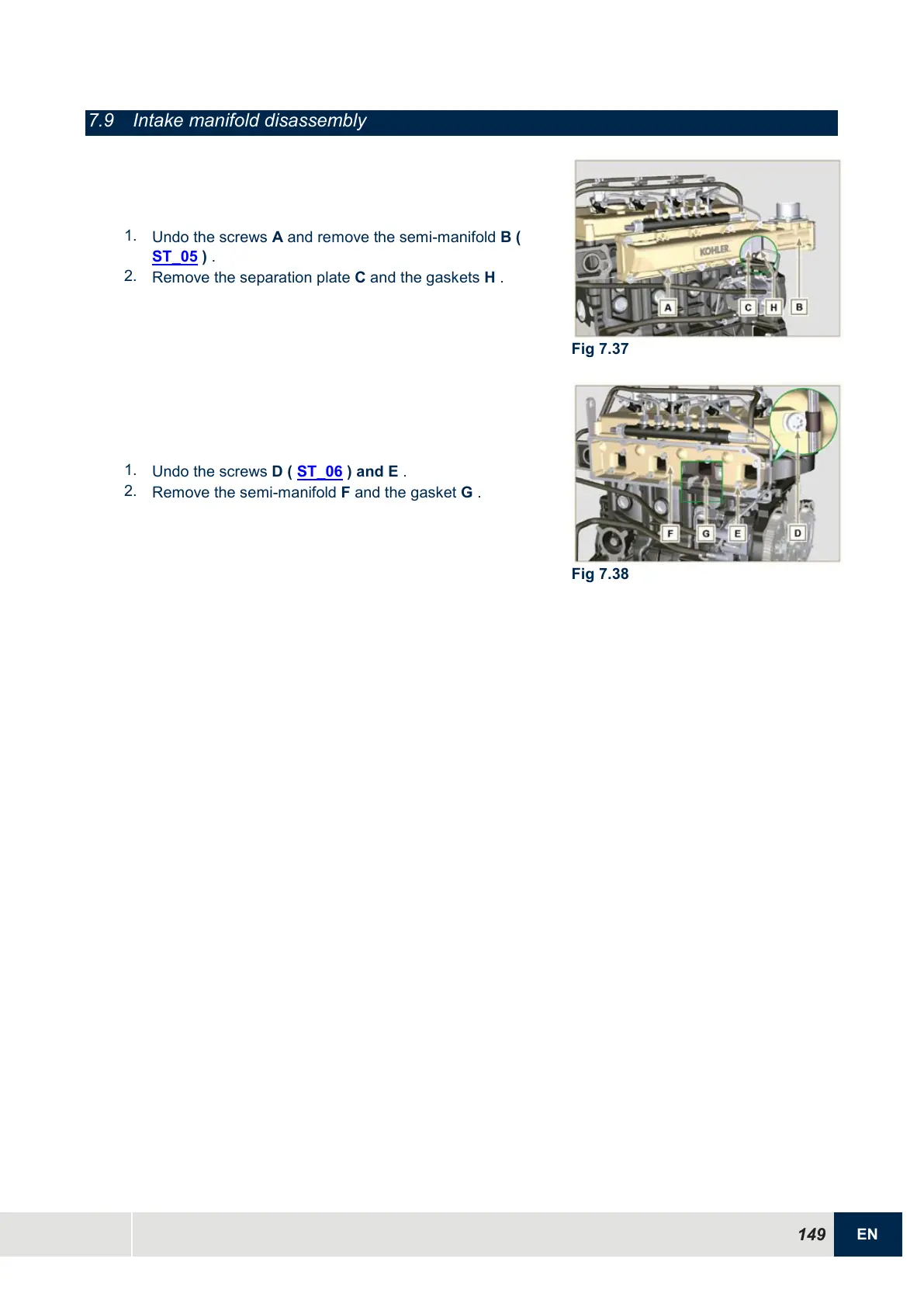

7.9 Intake manifold disassembly
1.
Undo the screws A and remove the semi-manifold B (
ST_05 ) .
2.
Remove the separation plate C and the gaskets H .
Fig 7.37
1.
Undo the screws D ( ST_06 ) and E .
2.
Remove the semi-manifold F and the gasket G .
Fig 7.38
