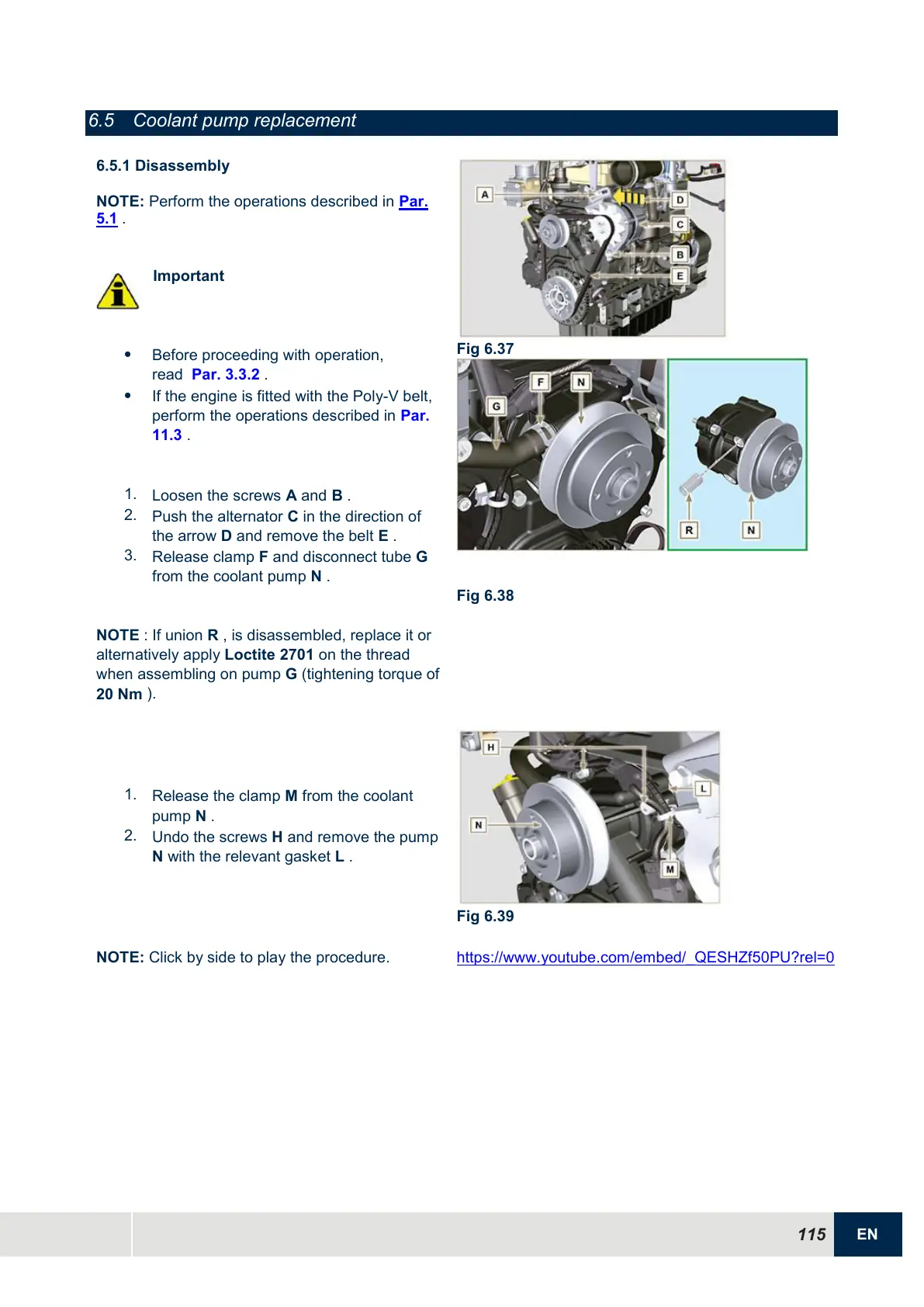

6.5 Coolant pump replacement
6.5.1 Disassembly
NOTE: Perform the operations described in Par.
5.1 .
Important

Before proceeding with operation,
read Par. 3.3.2 .

If the engine is fitted with the Poly-V belt,
perform the operations described in Par.
11.3 .
1.
Loosen the screws A and B .
2.
Push the alternator C in the direction of
the arrow D and remove the belt E .
3.
Release clamp F and disconnect tube G
from the coolant pump N .
NOTE
: If union
R
, is disassembled, replace it or
alternatively apply
Loctite 2701
on the thread
when assembling on pump
G
(tightening torque of
20 Nm
).
Fig 6.37
Fig 6.38
1.
Release the clamp M from the coolant
pump N .
2.
Undo the screws H and remove the pump
N with the relevant gasket L .
Fig 6.39
NOTE:
Click by side to play the procedure.
https://www.youtube.com/embed/_QESHZf50PU?rel=0
