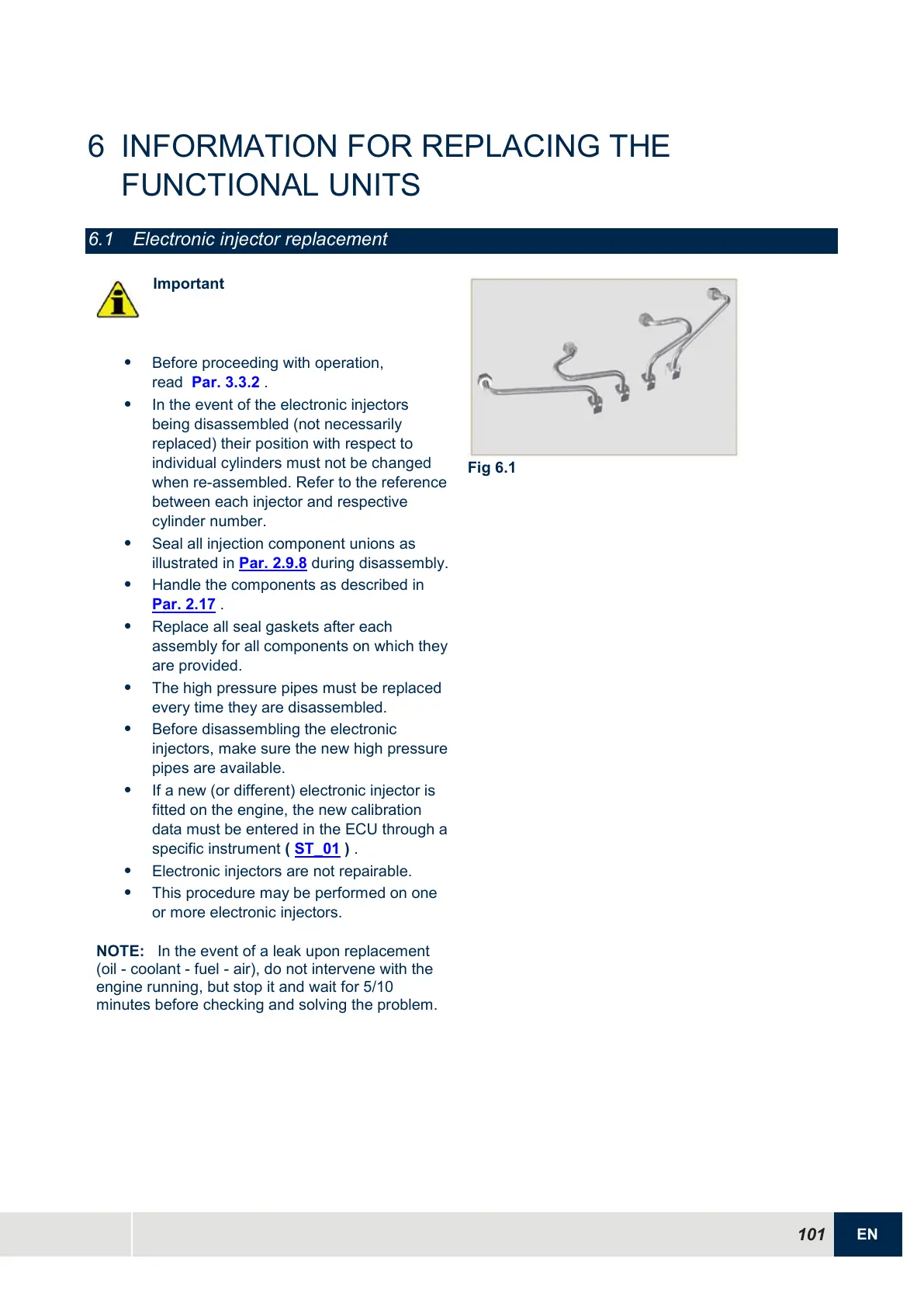

Kohler KDI 1903 TCR Workshop Manual

101
EN
6 INFORMATION FOR REPLACING THE
FUNCTIONAL UNITS
6.1 Electronic injector replacement
Important

Before proceeding with operation,
read Par. 3.3.2 .

In the event of the electronic injectors
being disassembled (not necessarily
replaced) their position with respect to
individual cylinders must not be changed
when re-assembled. Refer to the reference
between each injector and respective
cylinder number.

Seal all injection component unions as
illustrated in Par. 2.9.8 during disassembly.

Handle the components as described in
Par. 2.17 .

Replace all seal gaskets after each
assembly for all components on which they
are provided.

The high pressure pipes must be replaced
every time they are disassembled.

Before disassembling the electronic
injectors, make sure the new high pressure
pipes are available.

If a new (or different) electronic injector is
fitted on the engine, the new calibration
data must be entered in the ECU through a
specific instrument (
ST_01 ) .

Electronic injectors are not repairable.

This procedure may be performed on one
or more electronic injectors.
NOTE: In the event of a leak upon replacement
(oil - coolant - fuel - air), do not intervene with the
engine running, but stop it and wait for 5/10
minutes before checking and solving the problem.
Fig 6.1
