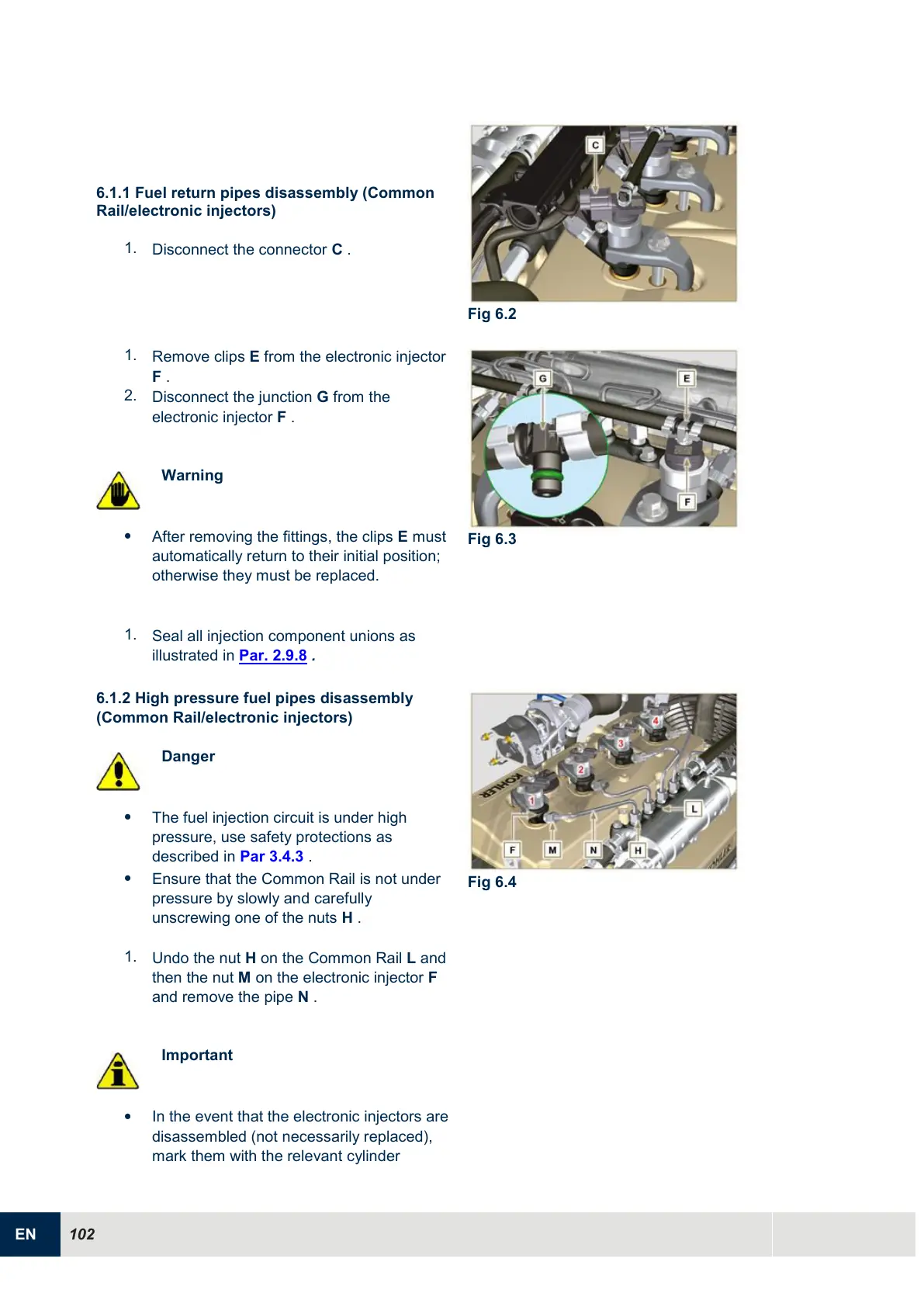

6.1.1 Fuel return pipes disassembly (Common
Rail/electronic injectors)
1.
Disconnect the connector C .
Fig 6.2
1.
Remove clips E from the electronic injector
F .
2.
Disconnect the junction G from the
electronic injector F .
Warning

After removing the fittings, the clips E must
automatically return to their initial position;
otherwise they must be replaced.
1.
Seal all injection component unions as
illustrated in Par. 2.9.8 .
Fig 6.3
6.1.2 High pressure fuel pipes disassembly
(Common Rail/electronic injectors)
Danger

The fuel injection circuit is under high
pressure, use safety protections as
described in Par 3.4.3 .

Ensure that the Common Rail is not under
pressure by slowly and carefully
unscrewing one of the nuts H .
1.
Undo the nut H on the Common Rail L and
then the nut M on the electronic injector F
and remove the pipe N .
Important

In the event that the electronic injectors are
disassembled (not necessarily replaced),
mark them with the relevant cylinder
Fig 6.4
