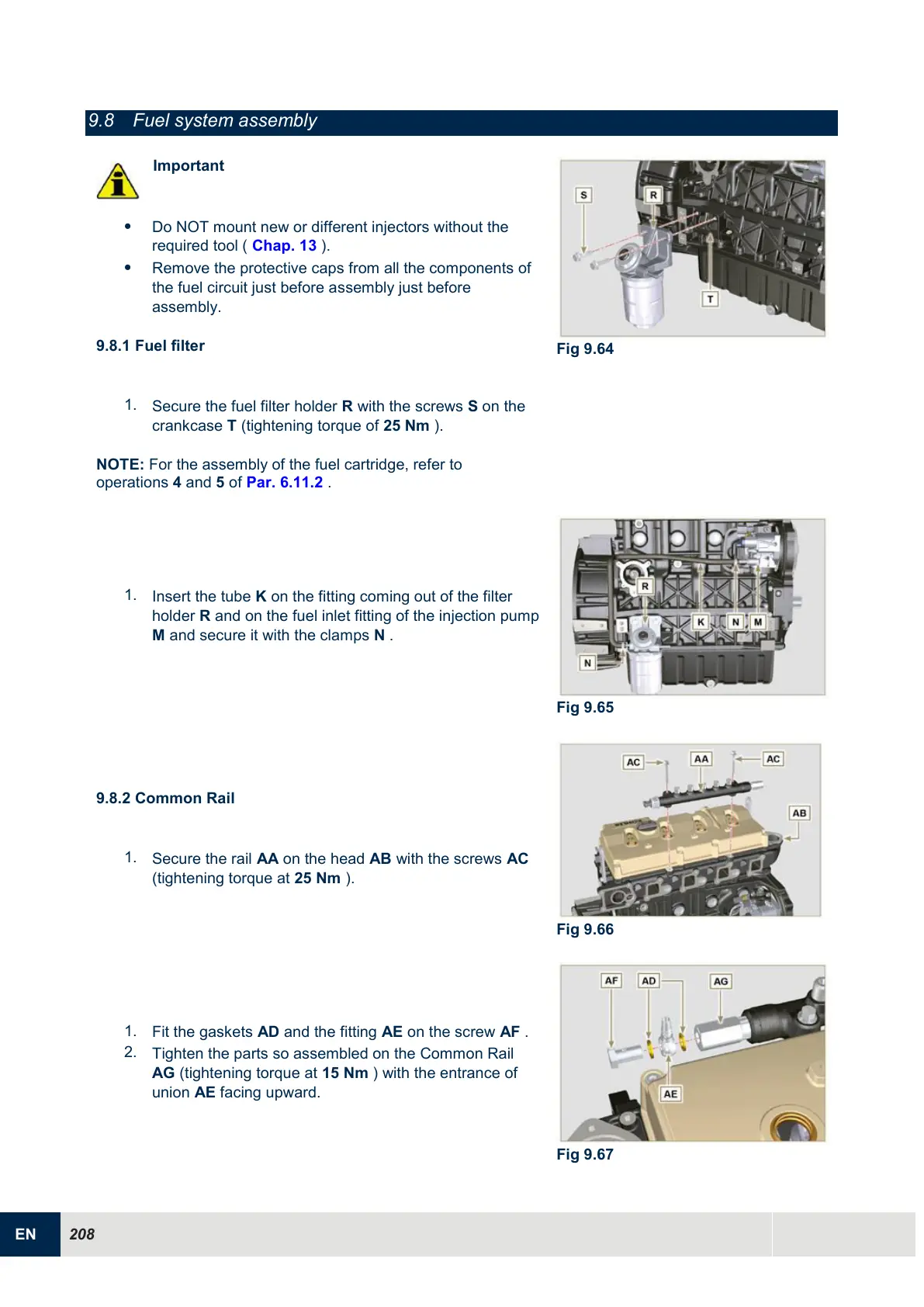

9.8 Fuel system assembly
Important

Do NOT mount new or different injectors without the
required tool ( Chap. 13 ).

Remove the protective caps from all the components of
the fuel circuit just before assembly just before
assembly.
9.8.1 Fuel filter
1.
Secure the fuel filter holder R with the screws S on the
crankcase T (tightening torque of 25 Nm ).
NOTE: For the assembly of the fuel cartridge, refer to
operations 4 and 5 of Par. 6.11.2 .
Fig 9.64
1.
Insert the tube K on the fitting coming out of the filter
holder R and on the fuel inlet fitting of the injection pump
M and secure it with the clamps N .
Fig 9.65
9.8.2 Common Rail
1.
Secure the rail AA on the head AB with the screws AC
(tightening torque at 25 Nm ).
Fig 9.66
1.
Fit the gaskets AD and the fitting AE on the screw AF .
2.
Tighten the parts so assembled on the Common Rail
AG (tightening torque at 15 Nm ) with the entrance of
union AE facing upward.
Fig 9.67
