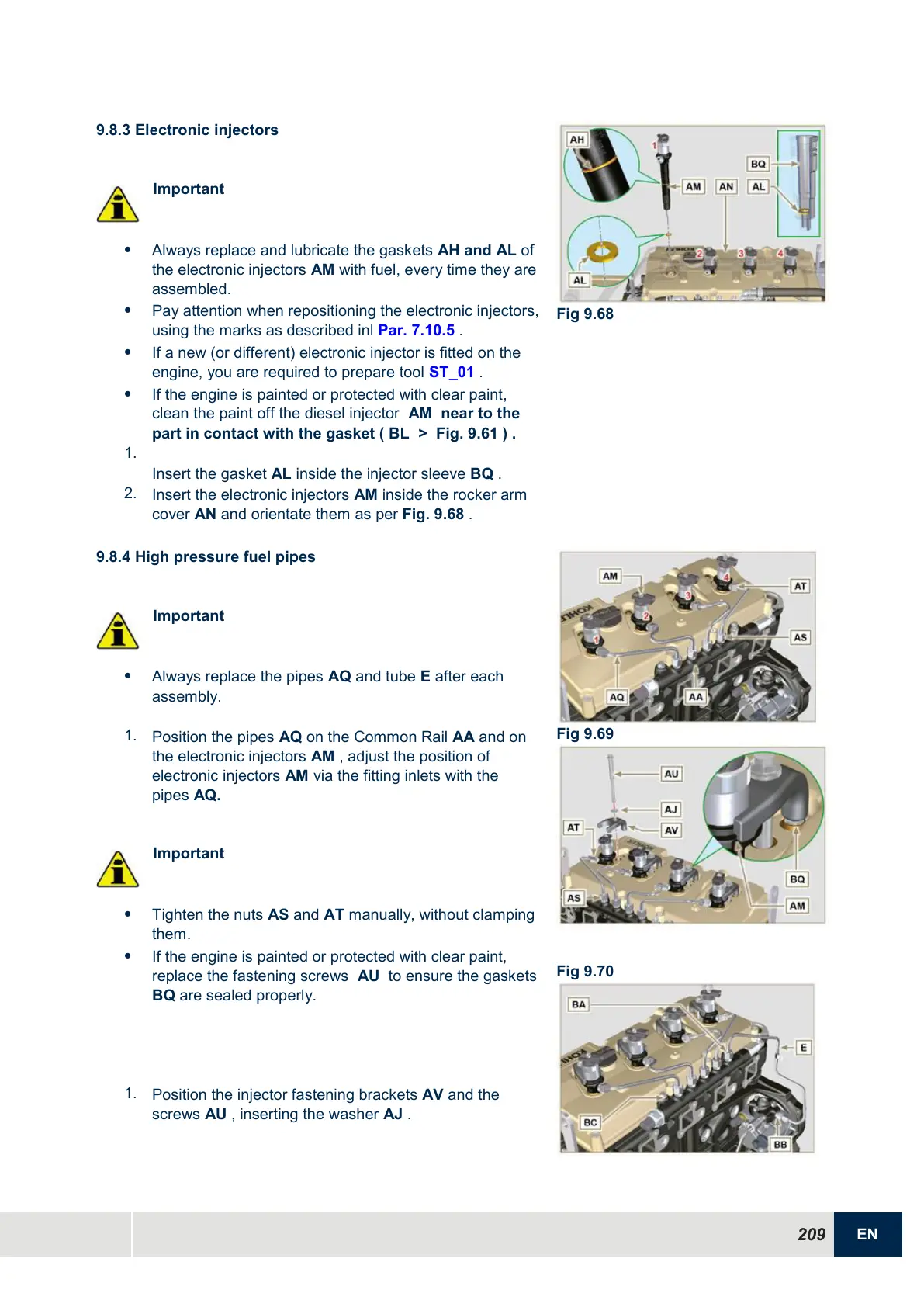

Kohler KDI 1903 TCR Workshop Manual

209
EN
9.8.3 Electronic injectors
Important

Always replace and lubricate the gaskets AH and AL of
the electronic injectors AM with fuel, every time they are
assembled.

Pay attention when repositioning the electronic injectors,
using the marks as described inl Par. 7.10.5 .

If a new (or different) electronic injector is fitted on the
engine, you are required to prepare tool ST_01 .

If the engine is painted or protected with clear paint,
clean the paint off the diesel injector AM near to the
part in contact with the gasket ( BL > Fig. 9.61 ) .
1.
Insert the gasket AL inside the injector sleeve BQ .
2.
Insert the electronic injectors AM inside the rocker arm
cover AN and orientate them as per Fig. 9.68 .
Fig 9.68
9.8.4 High pressure fuel pipes
Important

Always replace the pipes AQ and tube E after each
assembly.
1.
Position the pipes AQ on the Common Rail AA and on
the electronic injectors AM , adjust the position of
electronic injectors AM via the fitting inlets with the
pipes AQ.
Important

Tighten the nuts AS and AT manually, without clamping
them.

If the engine is painted or protected with clear paint,
replace the fastening screws AU to ensure the gaskets
BQ are sealed properly.
1.
Position the injector fastening brackets AV and the
screws AU , inserting the washer AJ .
Fig 9.69
Fig 9.70
