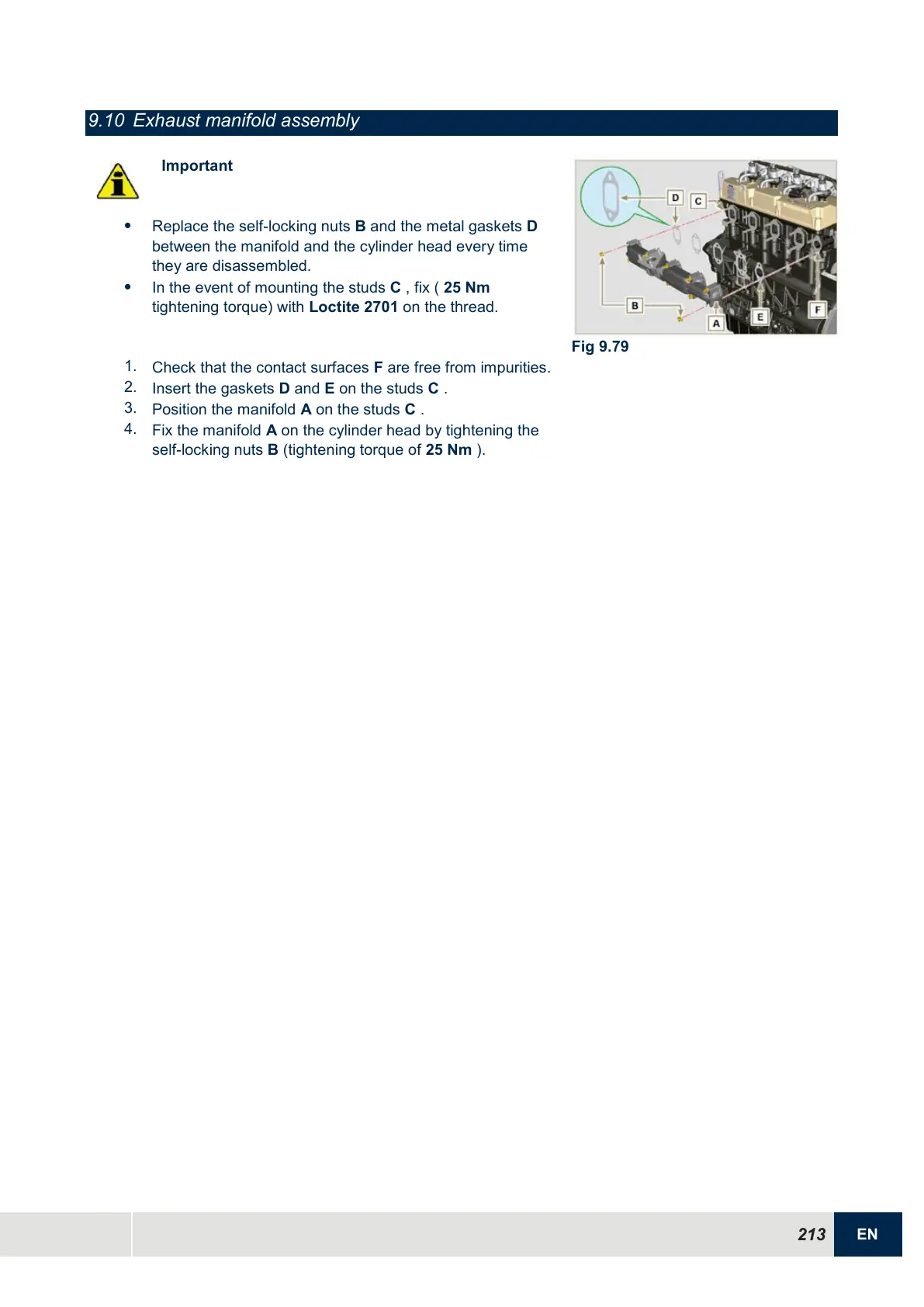

9.10 Exhaust manifold assembly
Important

Replace the self-locking nuts B and the metal gaskets D
between the manifold and the cylinder head every time
they are disassembled.

In the event of mounting the studs C , fix ( 25 Nm
tightening torque) with Loctite 2701 on the thread.
1.
Check that the contact surfaces F are free from impurities.
2.
Insert the gaskets D and E on the studs C .
3.
Position the manifold A on the studs C .
4.
Fix the manifold A on the cylinder head by tightening the
self-locking nuts B (tightening torque of 25 Nm ).
Fig 9.79
