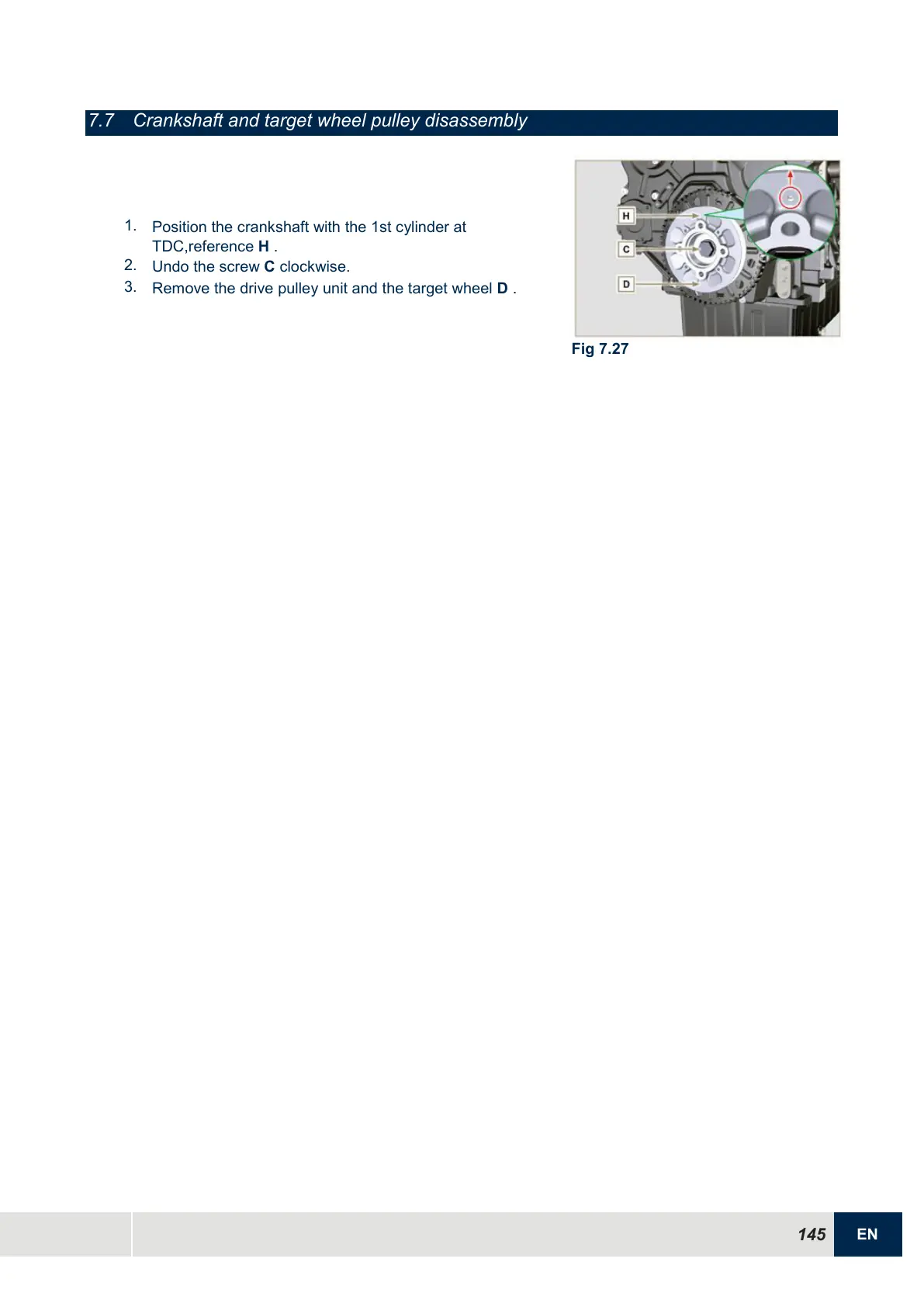

7.7 Crankshaft and target wheel pulley disassembly
1.
Position the crankshaft with the 1st cylinder at
TDC,reference H .
2.
Undo the screw C clockwise.
3.
Remove the drive pulley unit and the target wheel D .
Fig 7.27
