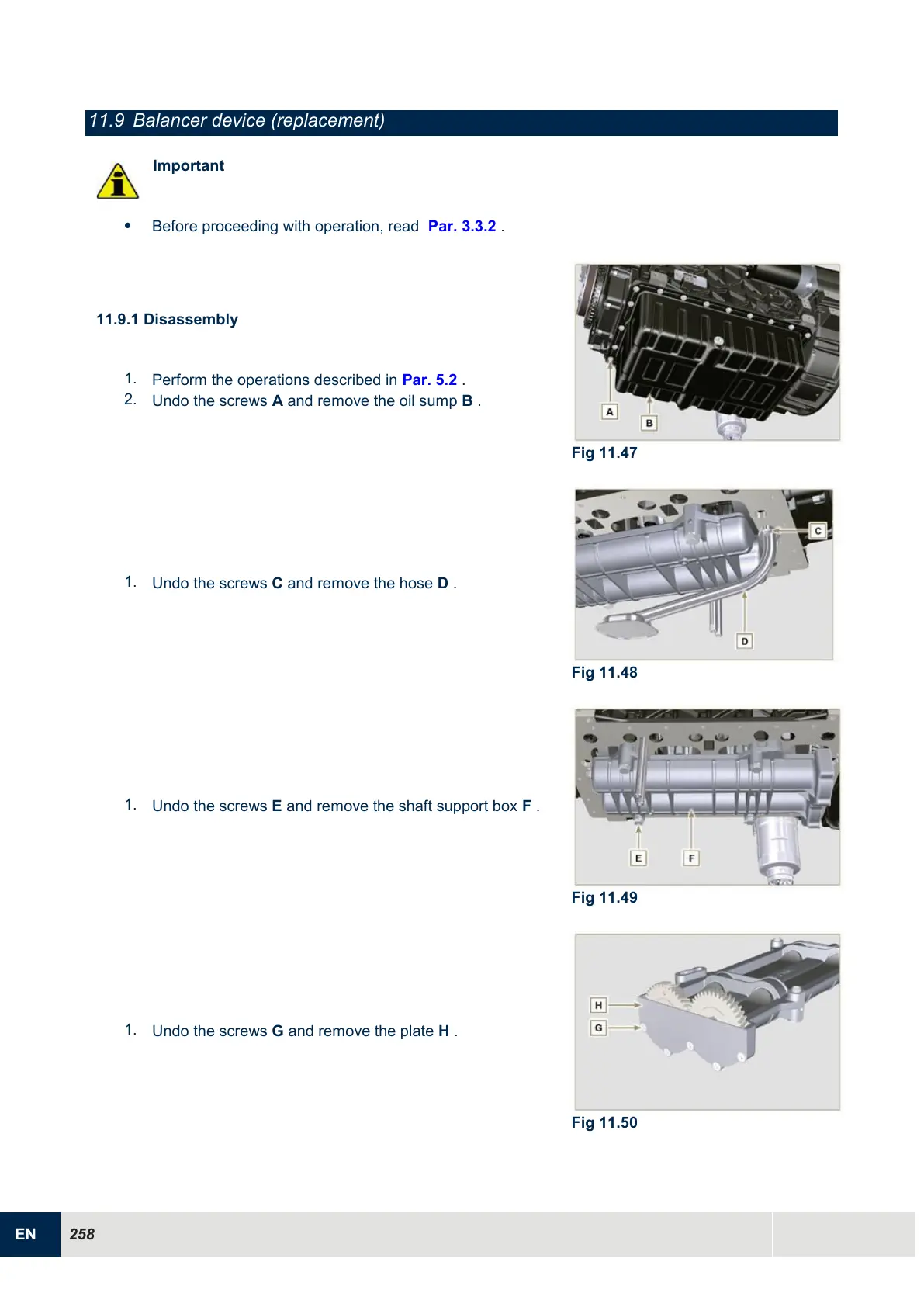

11.9 Balancer device (replacement)
Important

Before proceeding with operation, read Par. 3.3.2 .
11.9.1 Disassembly
1.
Perform the operations described in Par. 5.2 .
2.
Undo the screws A and remove the oil sump B .
Fig 11.47
1.
Undo the screws C and remove the hose D .
Fig 11.48
1.
Undo the screws E and remove the shaft support box F .
Fig 11.49
1.
Undo the screws G and remove the plate H .
Fig 11.50
