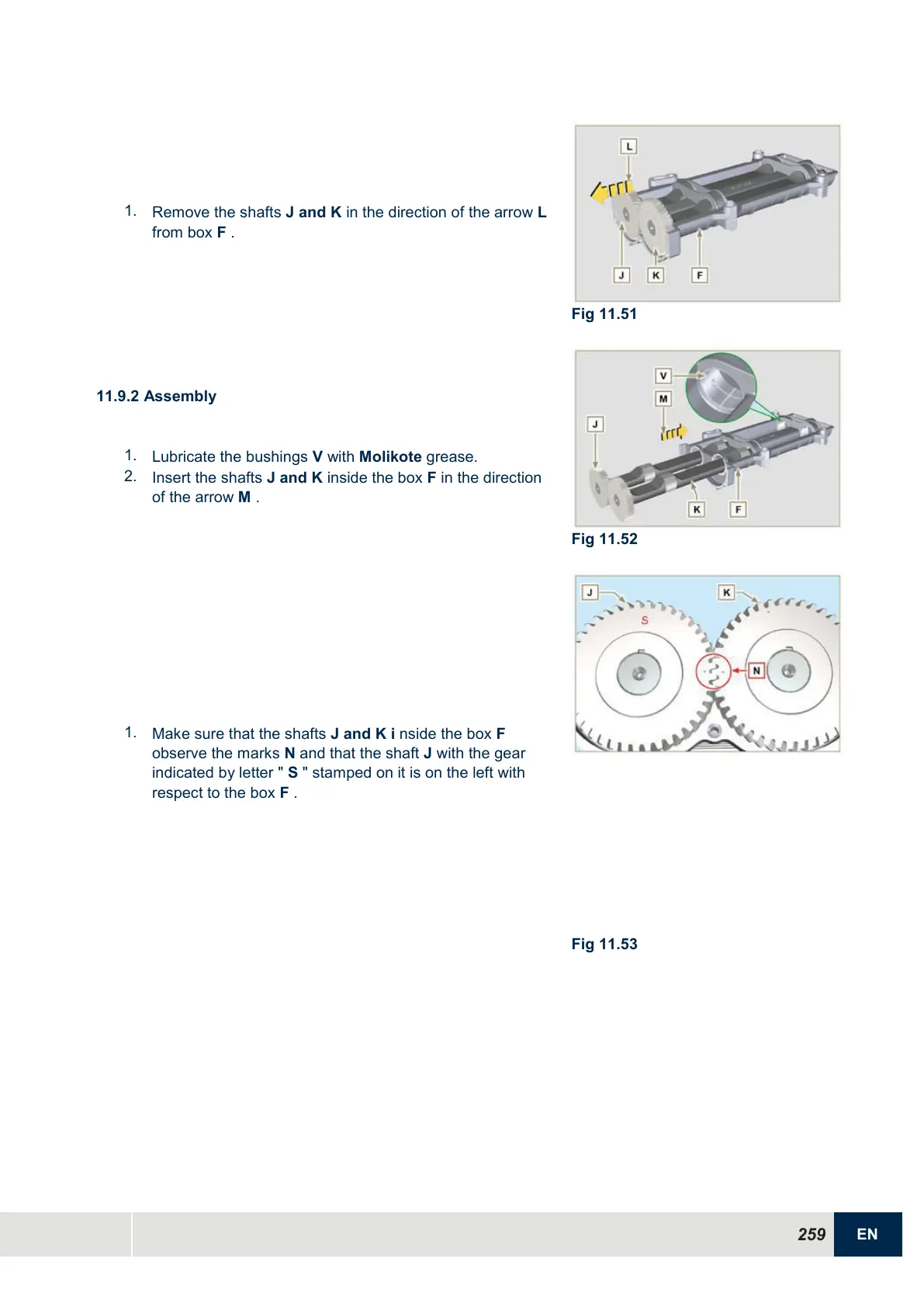

Kohler KDI 1903 TCR Workshop Manual

259
EN
1.
Remove the shafts J and K in the direction of the arrow L
from box F .
Fig 11.51
11.9.2 Assembly
1.
Lubricate the bushings V with Molikote grease.
2.
Insert the shafts J and K inside the box F in the direction
of the arrow M .
Fig 11.52
1.
Make sure that the shafts J and K i nside the box F
observe the marks N and that the shaft J with the gear
indicated by letter " S " stamped on it is on the left with
respect to the box F .
Fig 11.53
