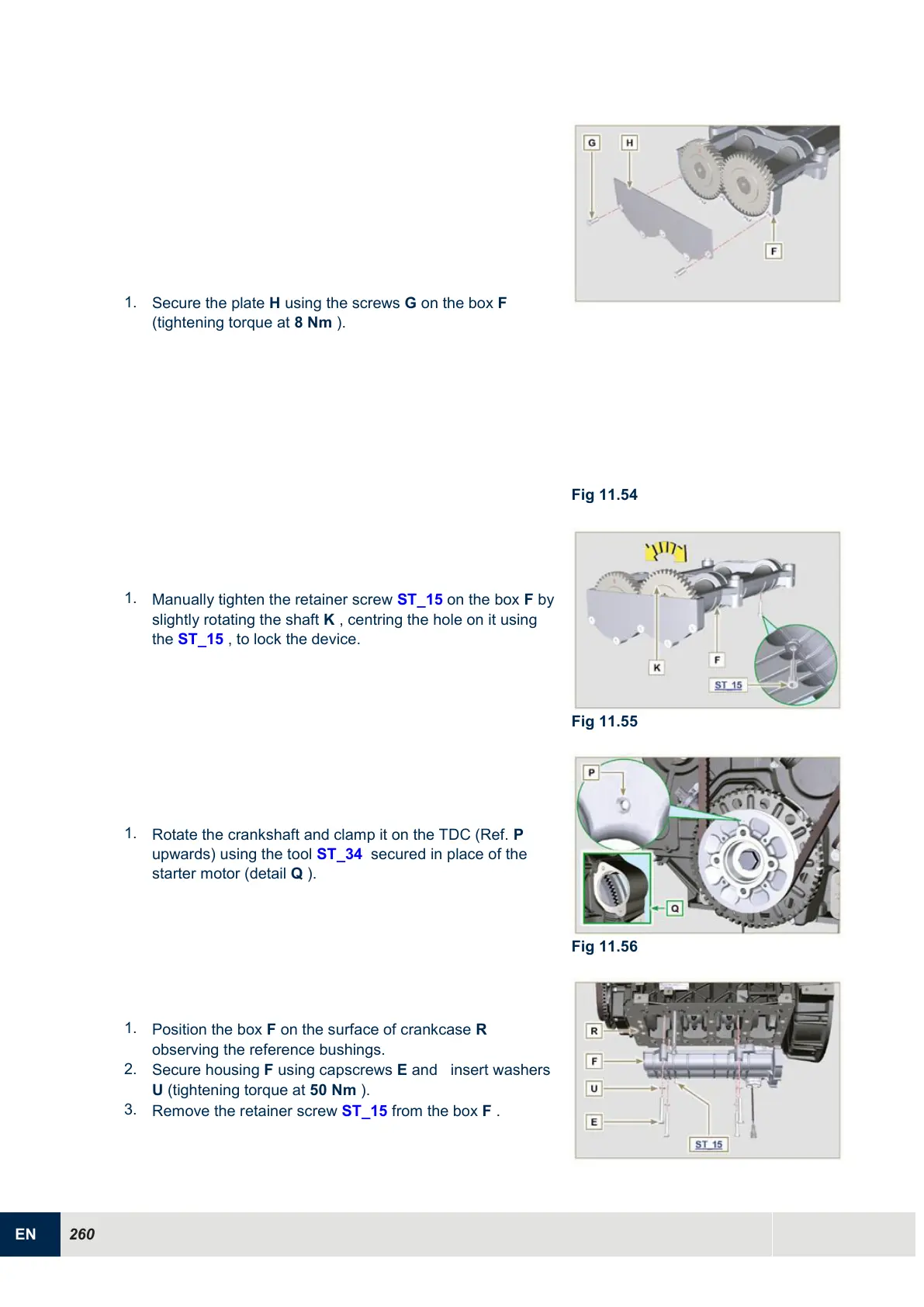

1.
Secure the plate H using the screws G on the box F
(tightening torque at 8 Nm ).
Fig 11.54
1.
Manually tighten the retainer screw ST_15 on the box F by
slightly rotating the shaft K , centring the hole on it using
the ST_15 , to lock the device.
Fig 11.55
1.
Rotate the crankshaft and clamp it on the TDC (Ref. P
upwards) using the tool ST_34 secured in place of the
starter motor (detail Q ).
Fig 11.56
1.
Position the box F on the surface of crankcase R
observing the reference bushings.
2.
Secure housing F using capscrews E and insert washers
U (tightening torque at 50 Nm ).
3.
Remove the retainer screw ST_15 from the box F .
