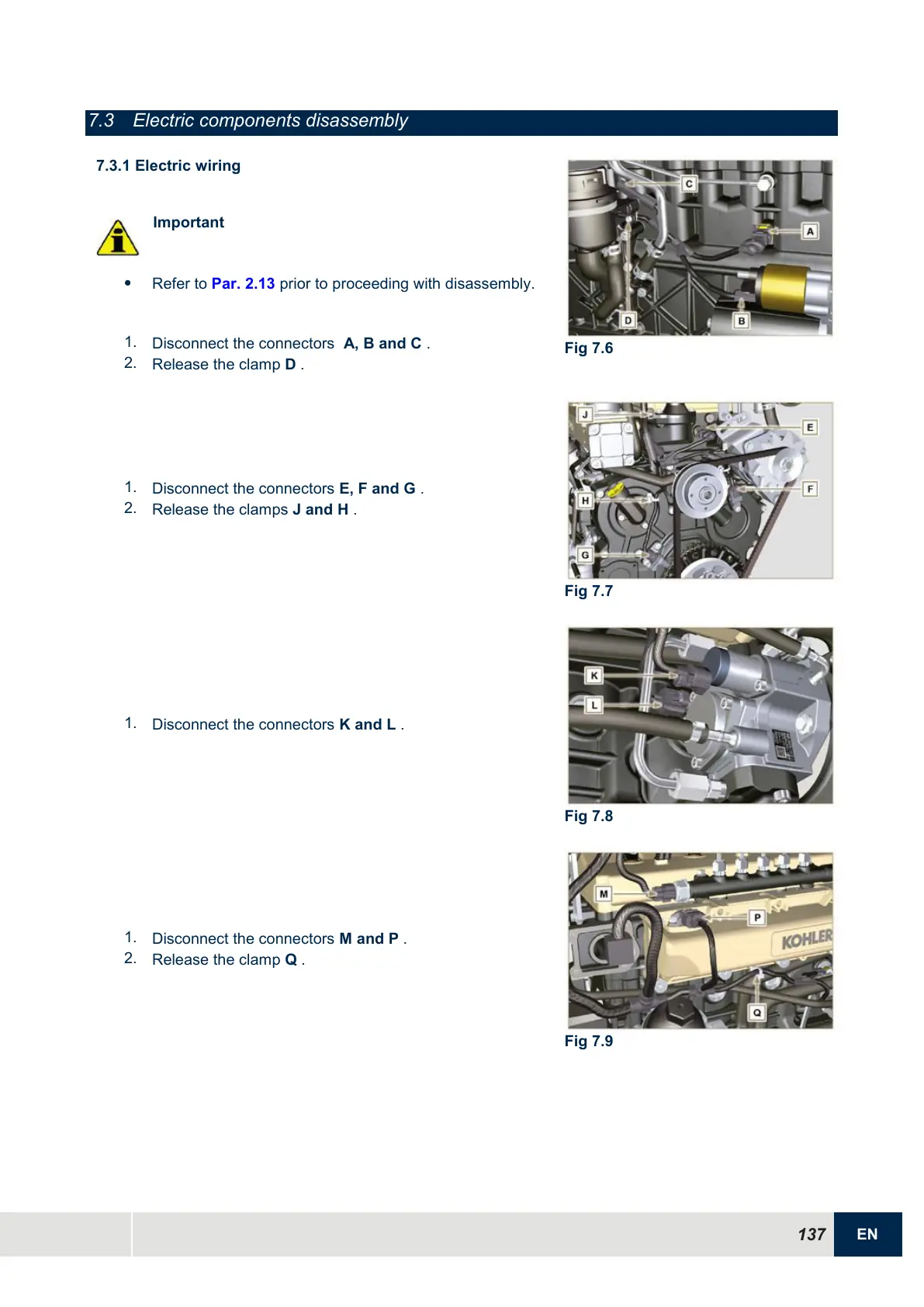

7.3 Electric components disassembly
7.3.1 Electric wiring
Important
ï‚·
Refer to Par. 2.13 prior to proceeding with disassembly.
1.
Disconnect the connectors A, B and C .
2.
Release the clamp D .
Fig 7.6
1.
Disconnect the connectors E, F and G .
2.
Release the clamps J and H .
Fig 7.7
1.
Disconnect the connectors K and L .
Fig 7.8
1.
Disconnect the connectors M and P .
2.
Release the clamp Q .
Fig 7.9
