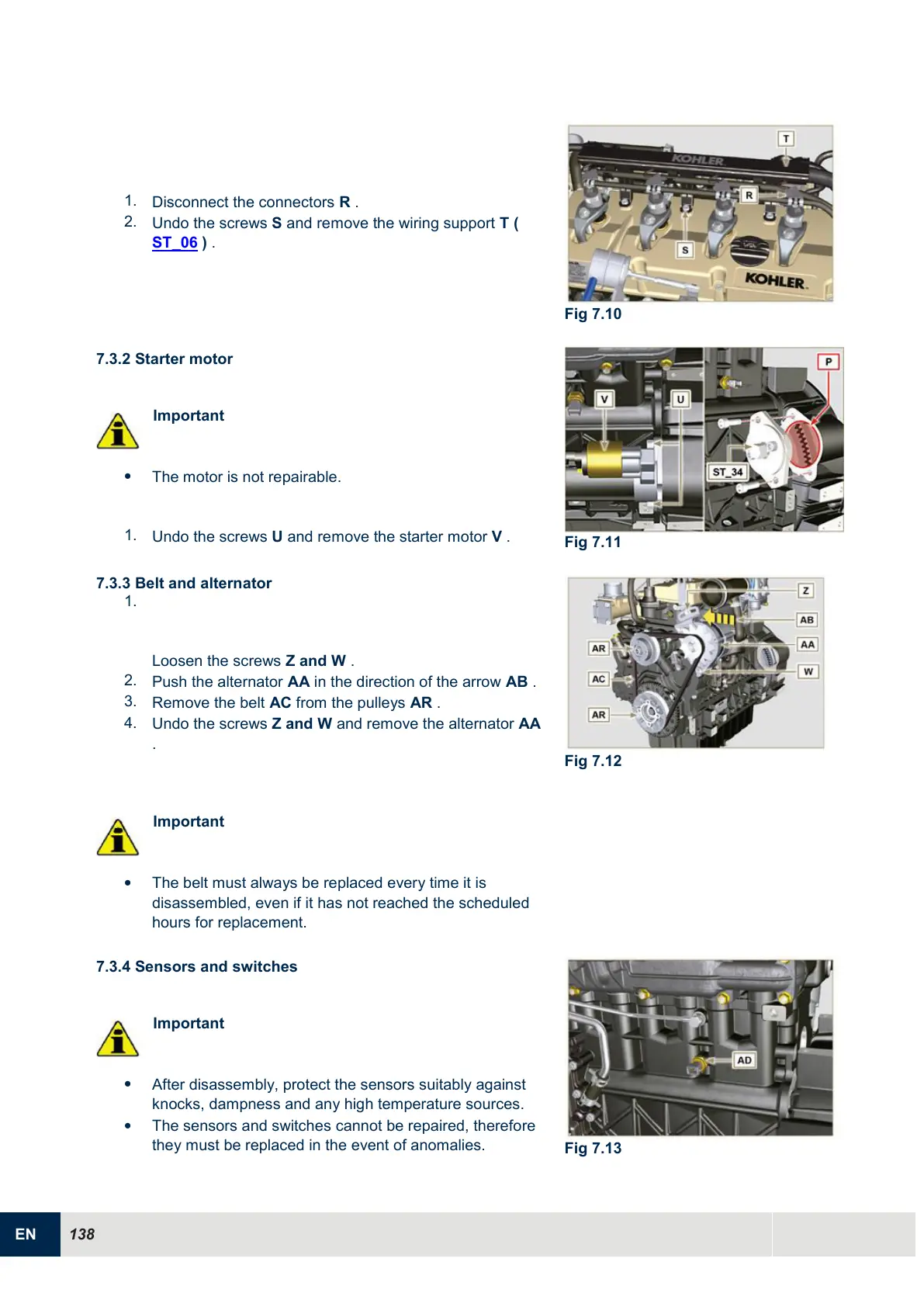

1.
Disconnect the connectors R .
2.
Undo the screws S and remove the wiring support T (
ST_06 ) .
Fig 7.10
7.3.2 Starter motor
Important

The motor is not repairable.
1.
Undo the screws U and remove the starter motor V .
Fig 7.11
7.3.3 Belt and alternator
1.
Loosen the screws Z and W .
2.
Push the alternator AA in the direction of the arrow AB .
3.
Remove the belt AC from the pulleys AR .
4.
Undo the screws Z and W and remove the alternator AA
.
Important

The belt must always be replaced every time it is
disassembled, even if it has not reached the scheduled
hours for replacement.
Fig 7.12
7.3.4 Sensors and switches
Important

After disassembly, protect the sensors suitably against
knocks, dampness and any high temperature sources.

The sensors and switches cannot be repaired, therefore
they must be replaced in the event of anomalies.
Fig 7.13
