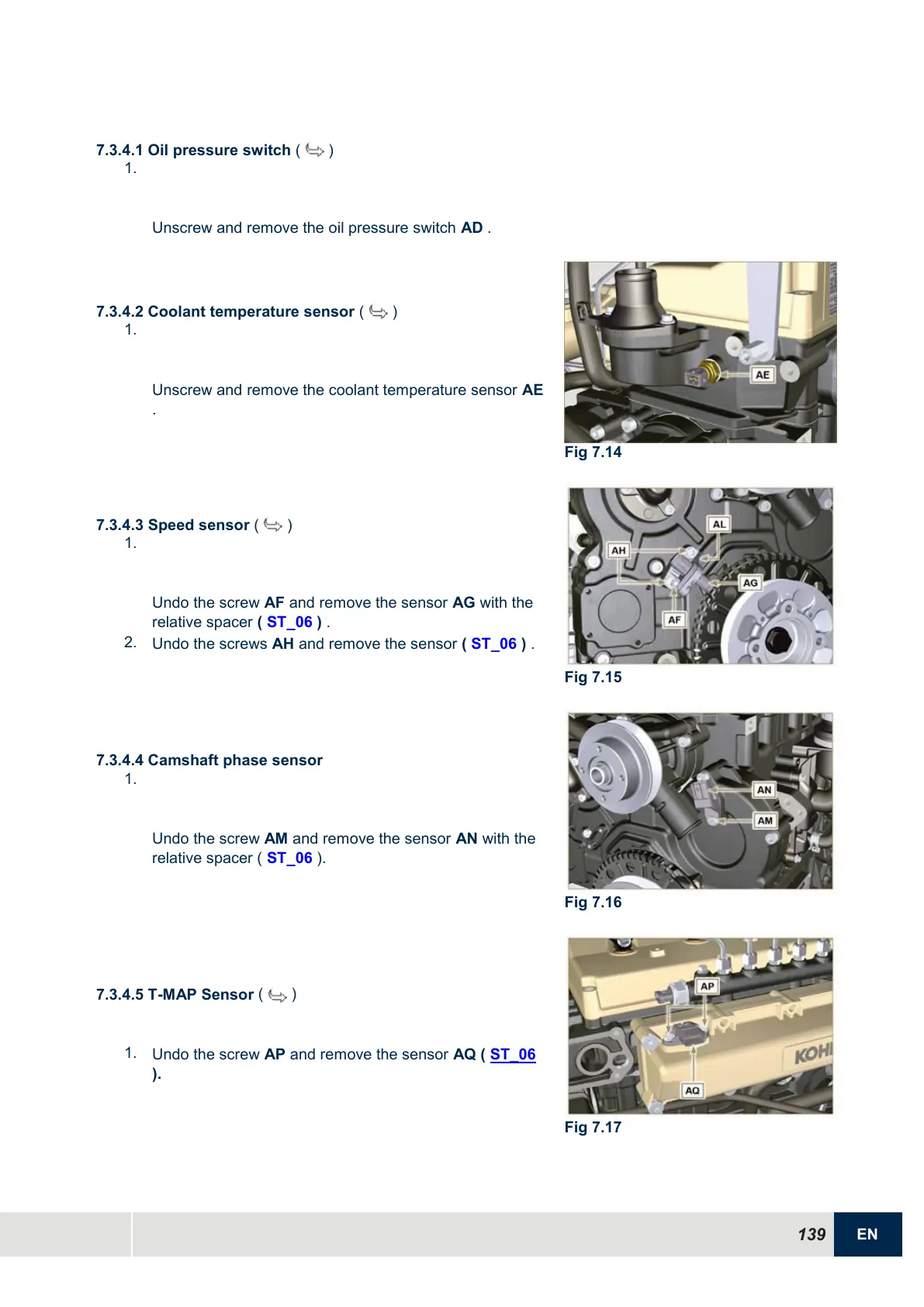

7.3.4.1 Oil pressure switch ( )
1.
Unscrew and remove the oil pressure switch AD .
7.3.4.2 Coolant temperature sensor ( )
1.
Unscrew and remove the coolant temperature sensor AE
.
Fig 7.14
7.3.4.3 Speed sensor ( )
1.
Undo the screw AF and remove the sensor AG with the
relative spacer ( ST_06 ) .
2.
Undo the screws AH and remove the sensor ( ST_06 ) .
Fig 7.15
7.3.4.4 Camshaft phase sensor
1.
Undo the screw AM and remove the sensor AN with the
relative spacer ( ST_06 ).
Fig 7.16
7.3.4.5 T-MAP Sensor
( )
1.
Undo the screw AP and remove the sensor AQ ( ST_06
).
Fig 7.17
