Kohler KDI 1903 TCR Workshop Manual

EN
112

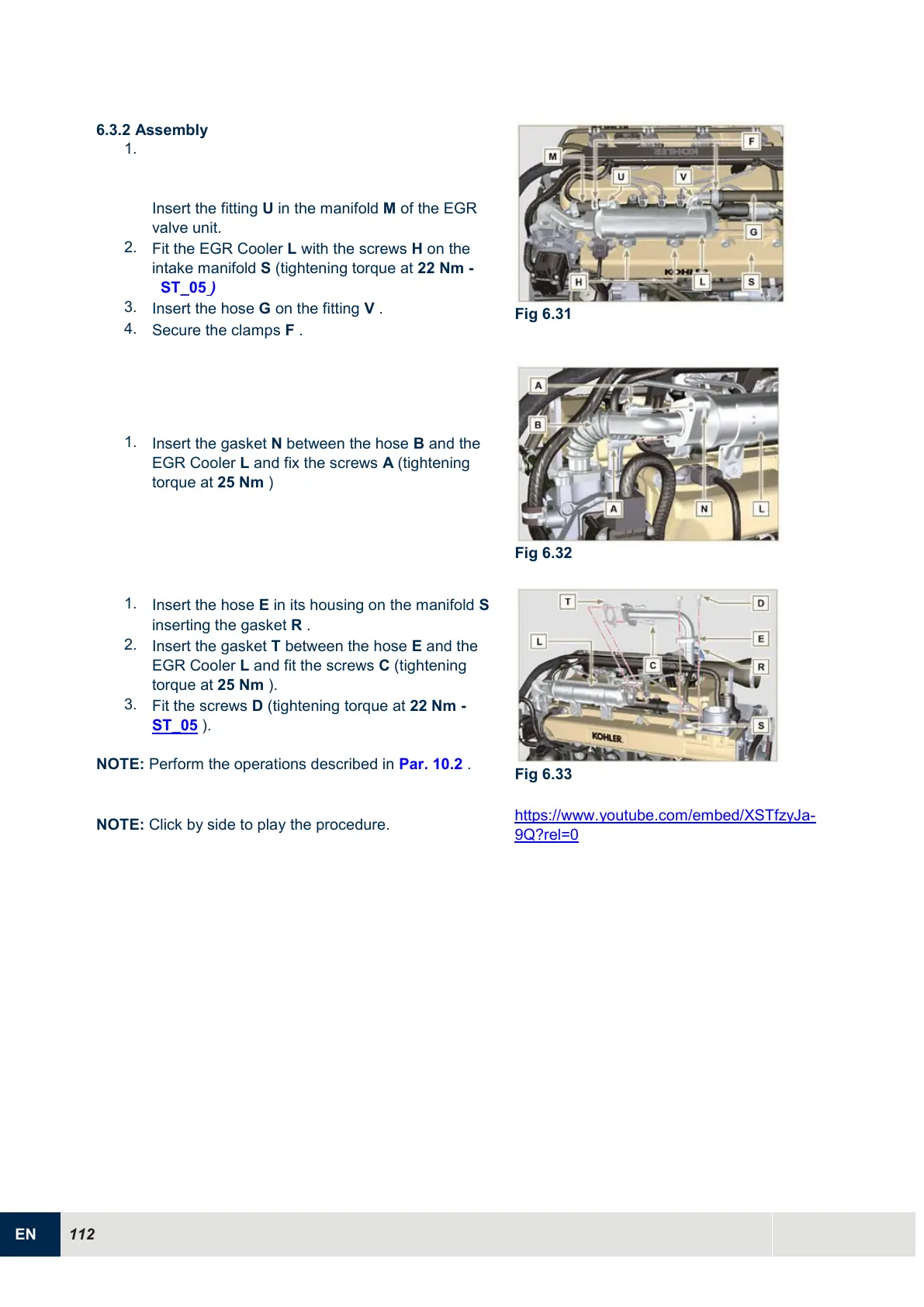

6.3.2 Assembly
1.
Insert the fitting U in the manifold M of the EGR
valve unit.
2.
Fit the EGR Cooler L with the screws H on the
intake manifold S (tightening torque at 22 Nm -
ST_05 )
3.
Insert the hose G on the fitting V .
4.
Secure the clamps F .
Fig 6.31
1.
Insert the gasket N between the hose B and the
EGR Cooler L and fix the screws A (tightening
torque at 25 Nm )
Fig 6.32
1.
Insert the hose E in its housing on the manifold S
inserting the gasket R .
2.
Insert the gasket T between the hose E and the
EGR Cooler L and fit the screws C (tightening
torque at 25 Nm ).
3.
Fit the screws D (tightening torque at 22 Nm -
ST_05 ).
NOTE: Perform the operations described in Par. 10.2 .
Fig 6.33
NOTE:
Click by side to play the procedure.
https://www.youtube.com/embed/XSTfzyJa-
9Q?rel=0
