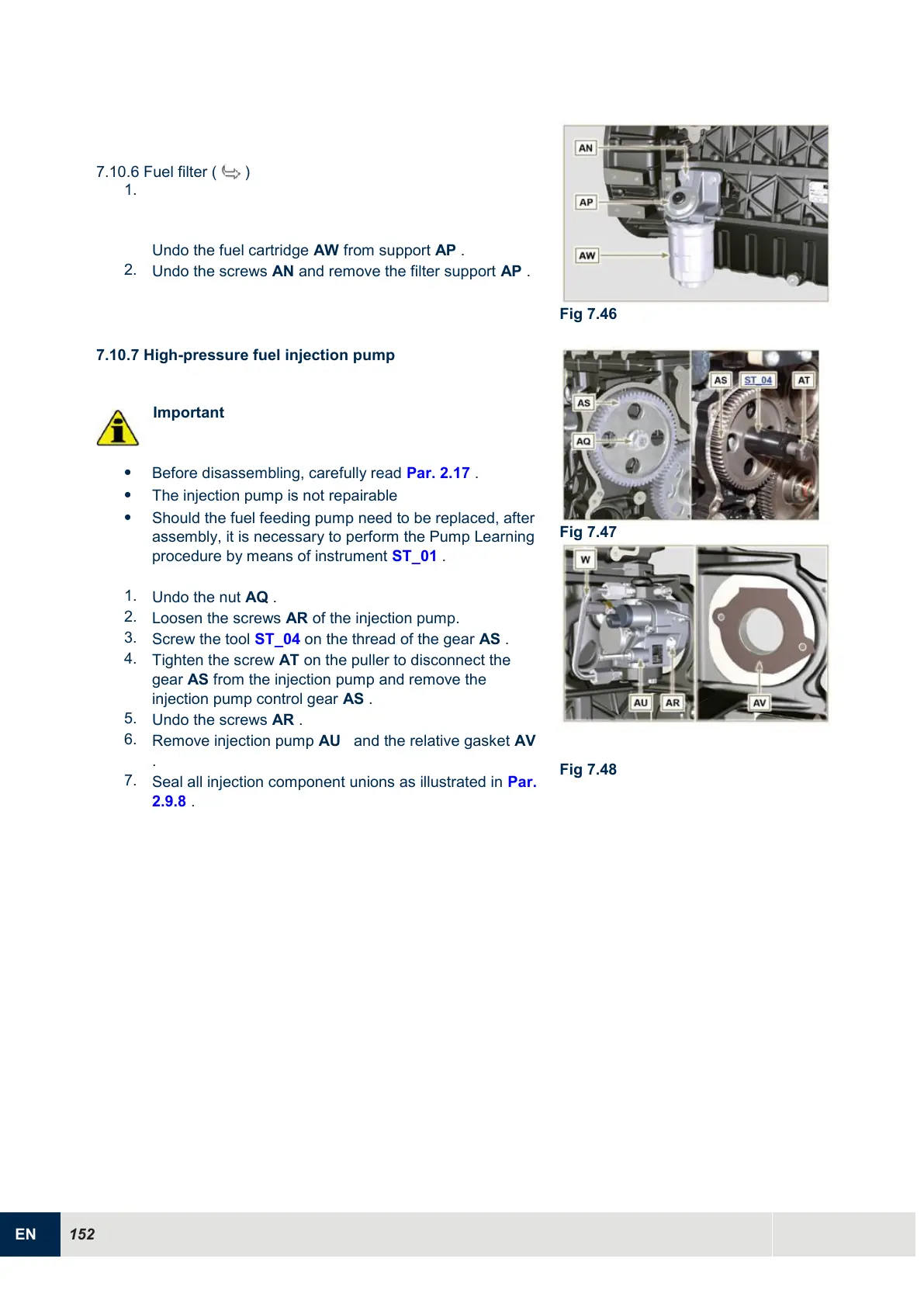

7.10.6 Fuel filter ( )
1.
Undo the fuel cartridge AW from support AP .
2.
Undo the screws AN and remove the filter support AP .
Fig 7.46
7.10.7 High-pressure fuel injection pump
Important

Before disassembling, carefully read Par. 2.17 .

The injection pump is not repairable

Should the fuel feeding pump need to be replaced, after
assembly, it is necessary to perform the Pump Learning
procedure by means of instrument ST_01 .
1.
Undo the nut AQ .
2.
Loosen the screws AR of the injection pump.
3.
Screw the tool ST_04 on the thread of the gear AS .
4.
Tighten the screw AT on the puller to disconnect the
gear AS from the injection pump and remove the
injection pump control gear AS .
5.
Undo the screws AR .
6.
Remove injection pump AU and the relative gasket AV
.
7.
Seal all injection component unions as illustrated in
Par.
2.9.8 .
Fig 7.47
Fig 7.48
