Kohler KDI 1903 TCR Workshop Manual

245
EN

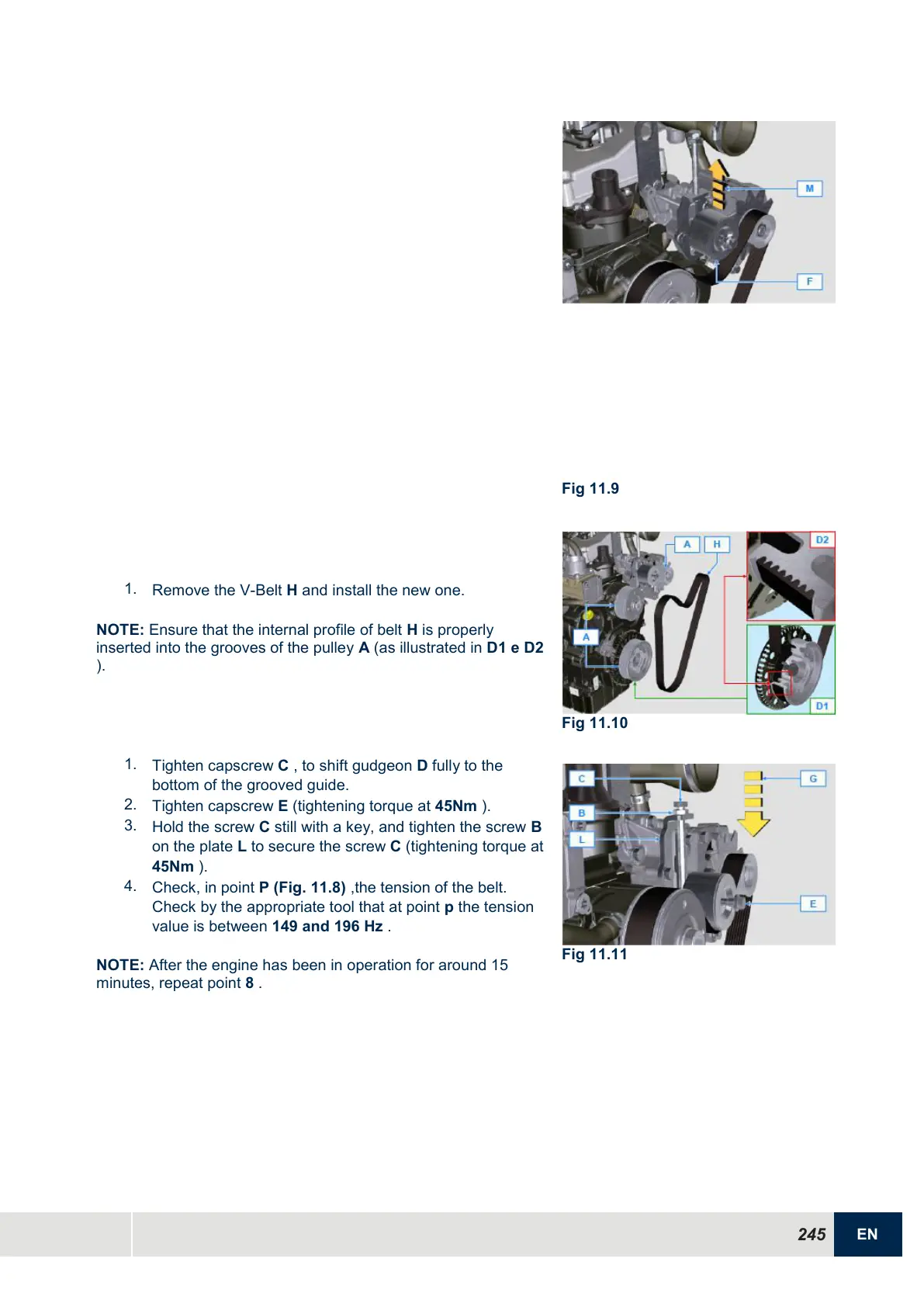

Fig 11.9
1.
Remove the V-Belt H and install the new one.
NOTE: Ensure that the internal profile of belt H is properly
inserted into the grooves of the pulley A (as illustrated in D1 e D2
).
Fig 11.10
1.
Tighten capscrew C , to shift gudgeon D fully to the
bottom of the grooved guide.
2.
Tighten capscrew E (tightening torque at 45Nm ).
3.
Hold the screw C still with a key, and tighten the screw B
on the plate L to secure the screw C (tightening torque at
45Nm ).
4.
Check, in point P (Fig. 11.8) ,the tension of the belt.
Check by the appropriate tool that at point p the tension
value is between 149 and 196 Hz .
NOTE: After the engine has been in operation for around 15
minutes, repeat point 8 .
Fig 11.11
