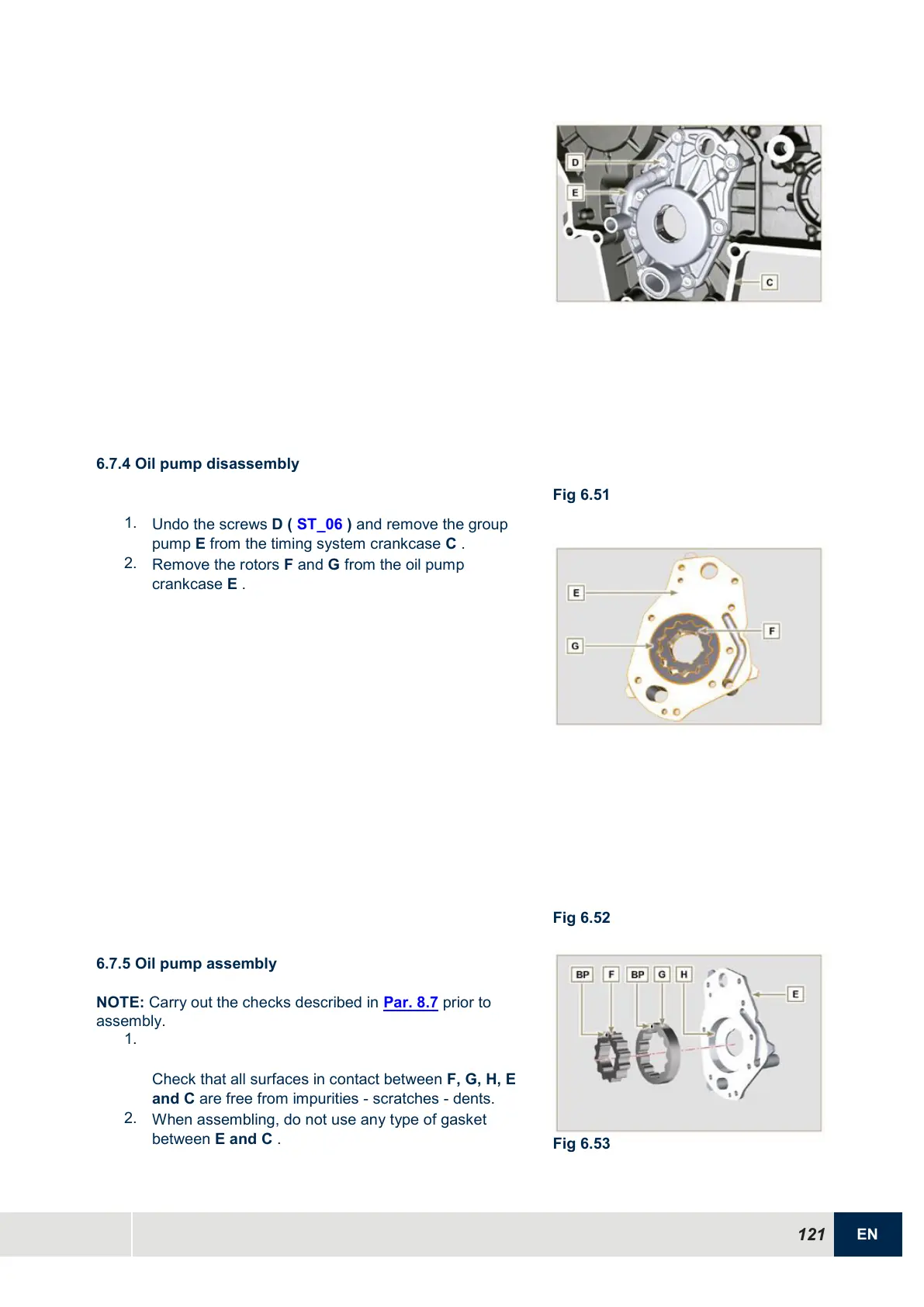

6.7.4 Oil pump disassembly
1.
Undo the screws D ( ST_06 ) and remove the group
pump E from the timing system crankcase C .
2.
Remove the rotors F and G from the oil pump
crankcase E .
Fig 6.51
Fig 6.52
6.7.5 Oil pump assembly
NOTE: Carry out the checks described in Par. 8.7 prior to
assembly.
1.
Check that all surfaces in contact between F, G, H, E
and C are free from impurities - scratches - dents.
2.
When assembling, do not use any type of gasket
between E and C .
Fig 6.53
