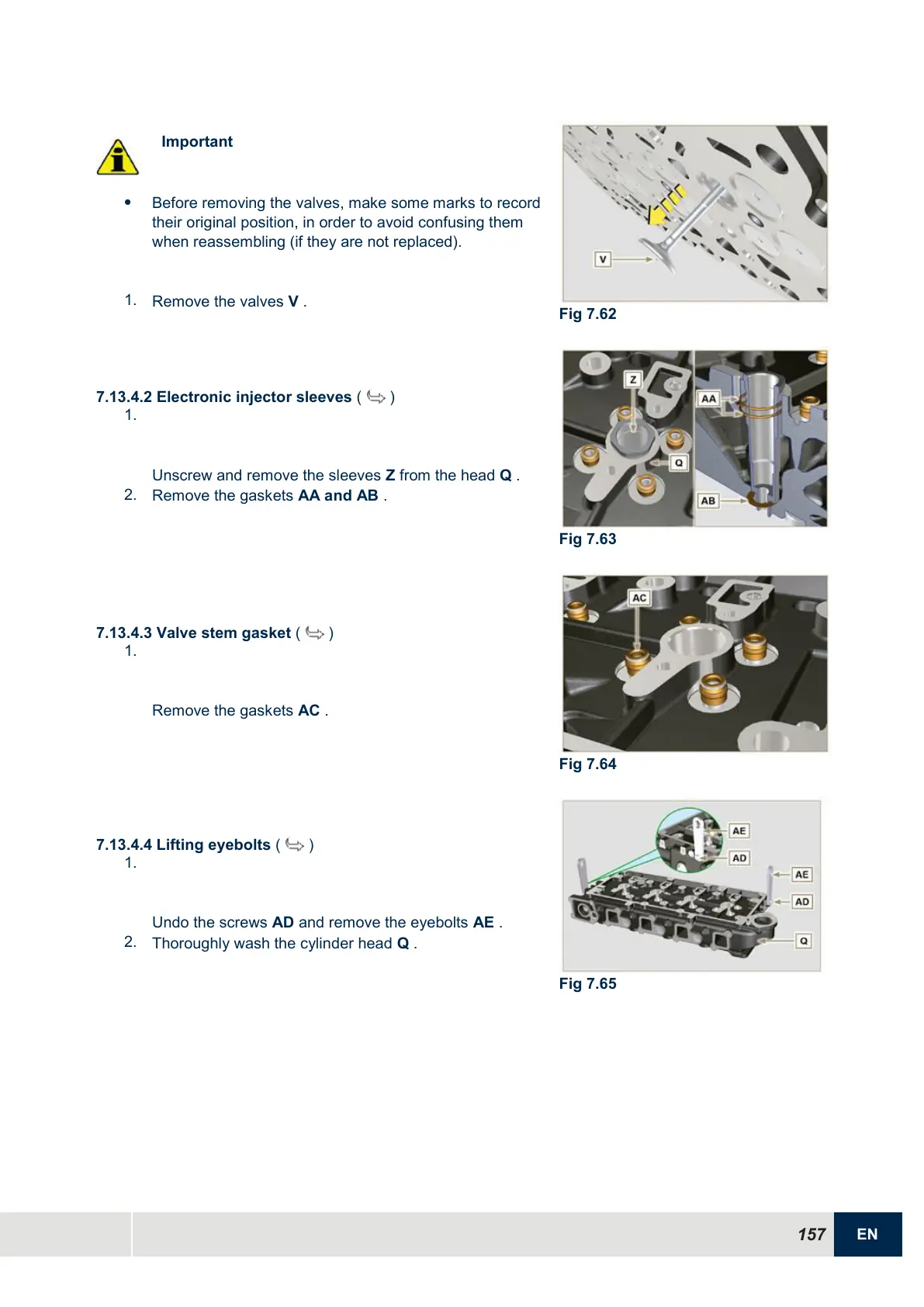

Kohler KDI 1903 TCR Workshop Manual

157
EN
Important

Before removing the valves, make some marks to record
their original position, in order to avoid confusing them
when reassembling (if they are not replaced).
1.
Remove the valves V .
Fig 7.62
7.13.4.2 Electronic injector sleeves ( )
1.
Unscrew and remove the sleeves Z from the head Q .
2.
Remove the gaskets AA and AB .
Fig 7.63
7.13.4.3 Valve stem gasket ( )
1.
Remove the gaskets AC .
Fig 7.64
7.13.4.4 Lifting eyebolts ( )
1.
Undo the screws AD and remove the eyebolts AE .
2.
Thoroughly wash the cylinder head Q .
Fig 7.65
