Kohler KDI 1903 TCR Workshop Manual

EN
156

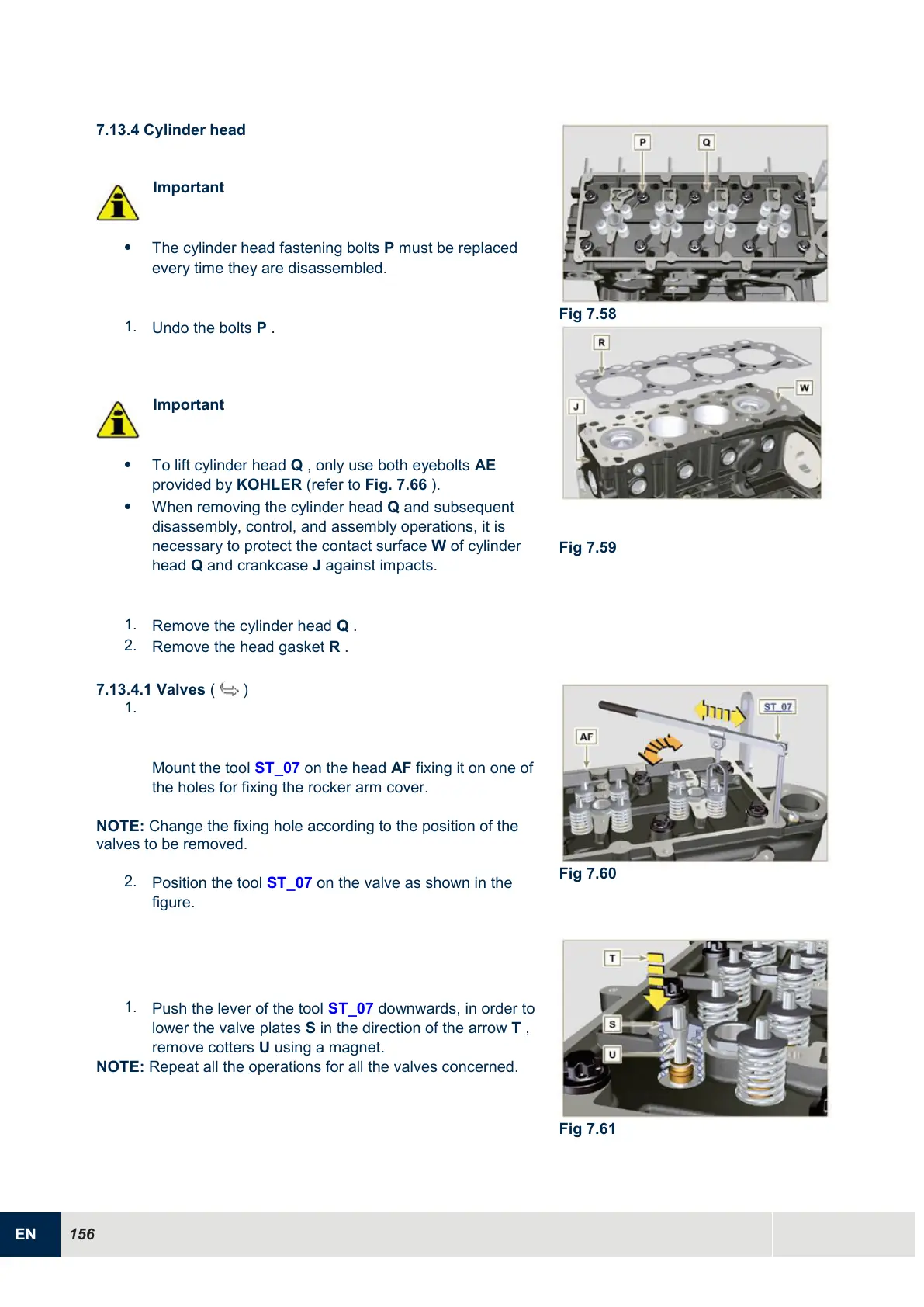

7.13.4 Cylinder head
Important

The cylinder head fastening bolts P must be replaced
every time they are disassembled.
1.
Undo the bolts P .
Important

To lift cylinder head Q , only use both eyebolts AE
provided by KOHLER (refer to Fig. 7.66 ).

When removing the cylinder head Q and subsequent
disassembly, control, and assembly operations, it is
necessary to protect the contact surface W of cylinder
head Q and crankcase J against impacts.
1.
Remove the cylinder head Q .
2.
Remove the head gasket R .
Fig 7.58
Fig 7.59
7.13.4.1 Valves ( )
1.
Mount the tool ST_07 on the head AF fixing it on one of
the holes for fixing the rocker arm cover.
NOTE: Change the fixing hole according to the position of the
valves to be removed.
2.
Position the tool ST_07 on the valve as shown in the
figure.
Fig 7.60
1.
Push the lever of the tool ST_07 downwards, in order to
lower the valve plates S in the direction of the arrow T ,
remove cotters U using a magnet.
NOTE: Repeat all the operations for all the valves concerned.
Fig 7.61
