6.11.2 Assembly
1.
Clamp the fuel filter support H with the screws C on
the crankcase M (tightening torque at 25 Nm ).
2.
Fit the pipes B on the support H .
3.
Secure the pipes B with the clamps A .

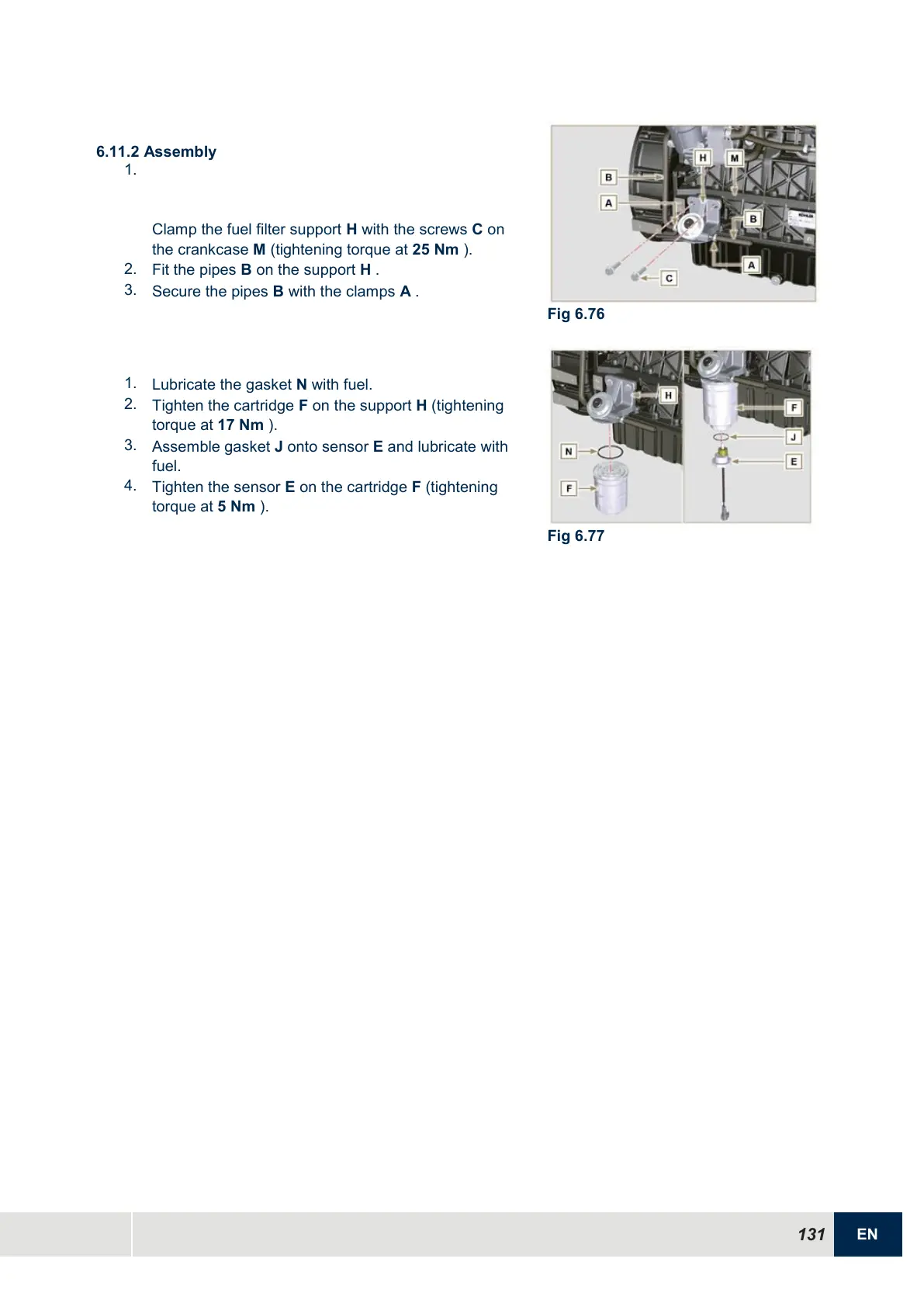

Fig 6.76
1.
Lubricate the gasket N with fuel.
2.
Tighten the cartridge F on the support H (tightening
torque at 17 Nm ).
3.
Assemble gasket J onto sensor E and lubricate with
fuel.
4.
Tighten the sensor E on the cartridge F (tightening
torque at 5 Nm ).
Fig 6.77
