EN
10
6
Gear timing system
7
Thermostatic valve
8
Oil pump
9
Oil suction hose
10
Crankshaft
11
Exhaust manifold
12
Intake manifold
13
Camshaft
14
Gears adaptor for 3
th
/4
th
PTO (optional)
15
Flywheel (1
st
PTO)

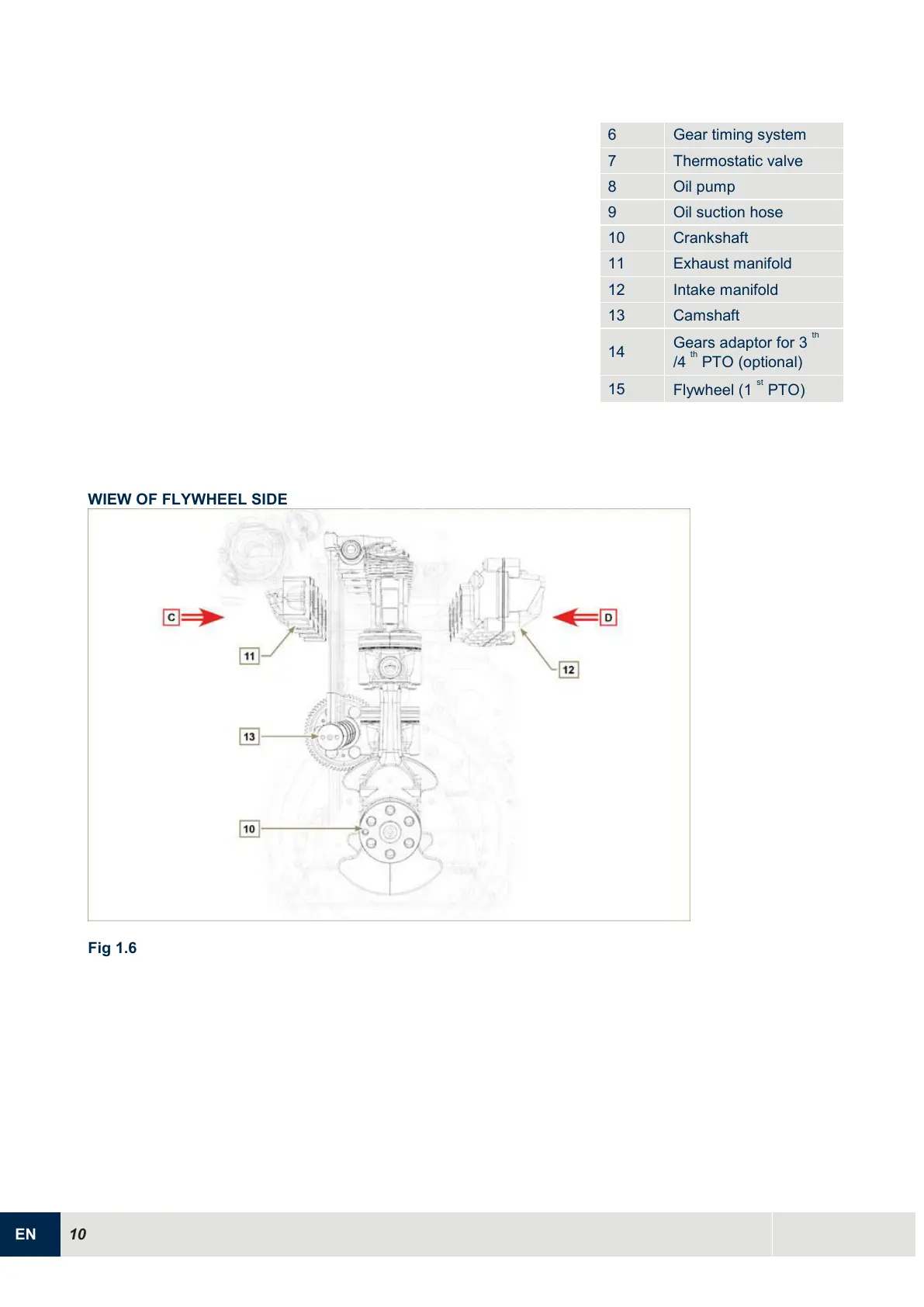

WIEW OF FLYWHEEL SIDE
Fig 1.6
