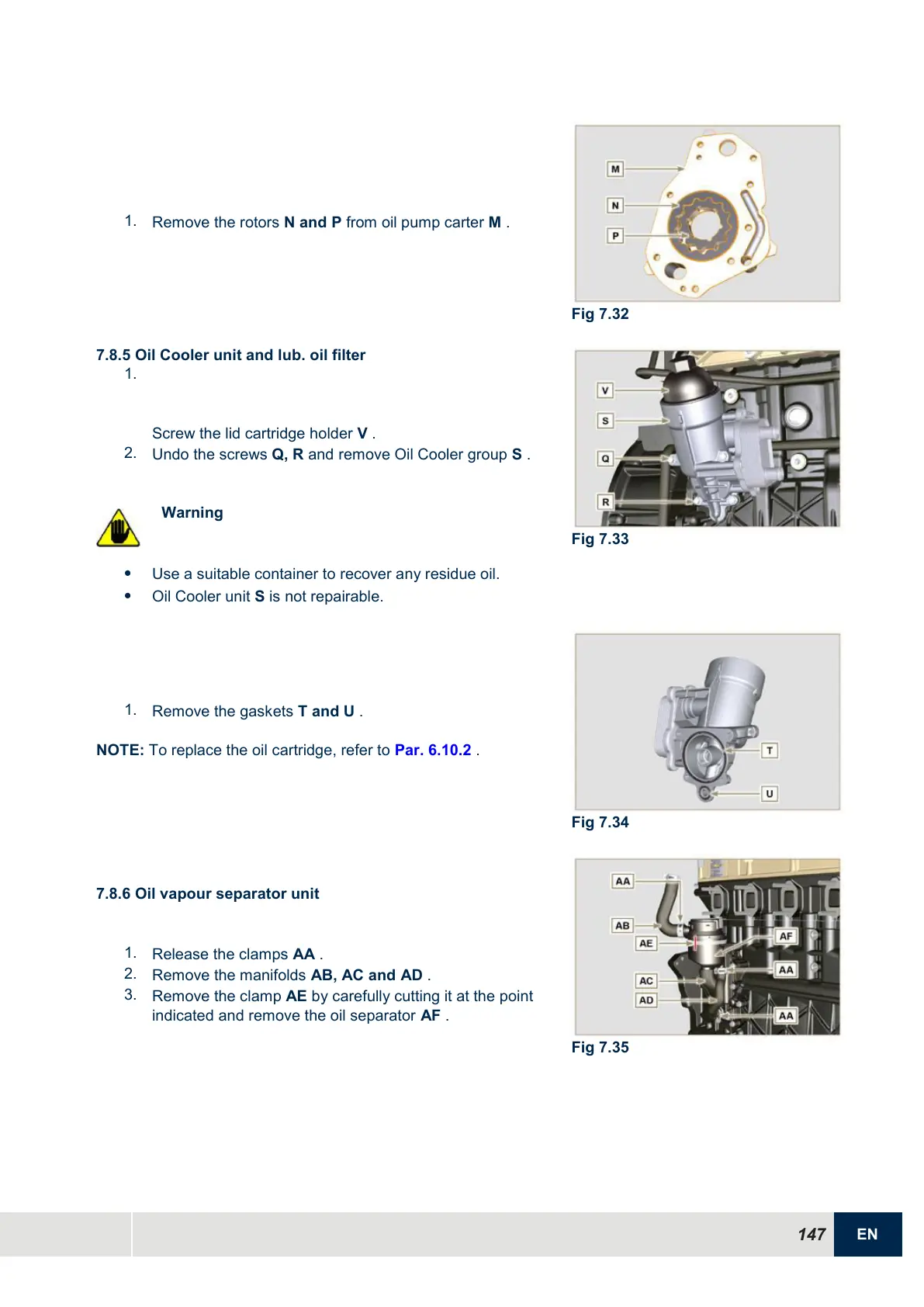

Kohler KDI 1903 TCR Workshop Manual

147
EN
1.
Remove the rotors N and P from oil pump carter M .
Fig 7.32
7.8.5 Oil Cooler unit and lub. oil filter
1.
Screw the lid cartridge holder V .
2.
Undo the screws Q, R and remove Oil Cooler group S .
Warning

Use a suitable container to recover any residue oil.

Oil Cooler unit S is not repairable.
Fig 7.33
1.
Remove the gaskets T and U .
NOTE:
To replace the oil cartridge, refer to
Par. 6.10.2
.
Fig 7.34
7.8.6 Oil vapour separator unit
1.
Release the clamps AA .
2.
Remove the manifolds AB, AC and AD .
3.
Remove the clamp AE by carefully cutting it at the point
indicated and remove the oil separator AF .
Fig 7.35
