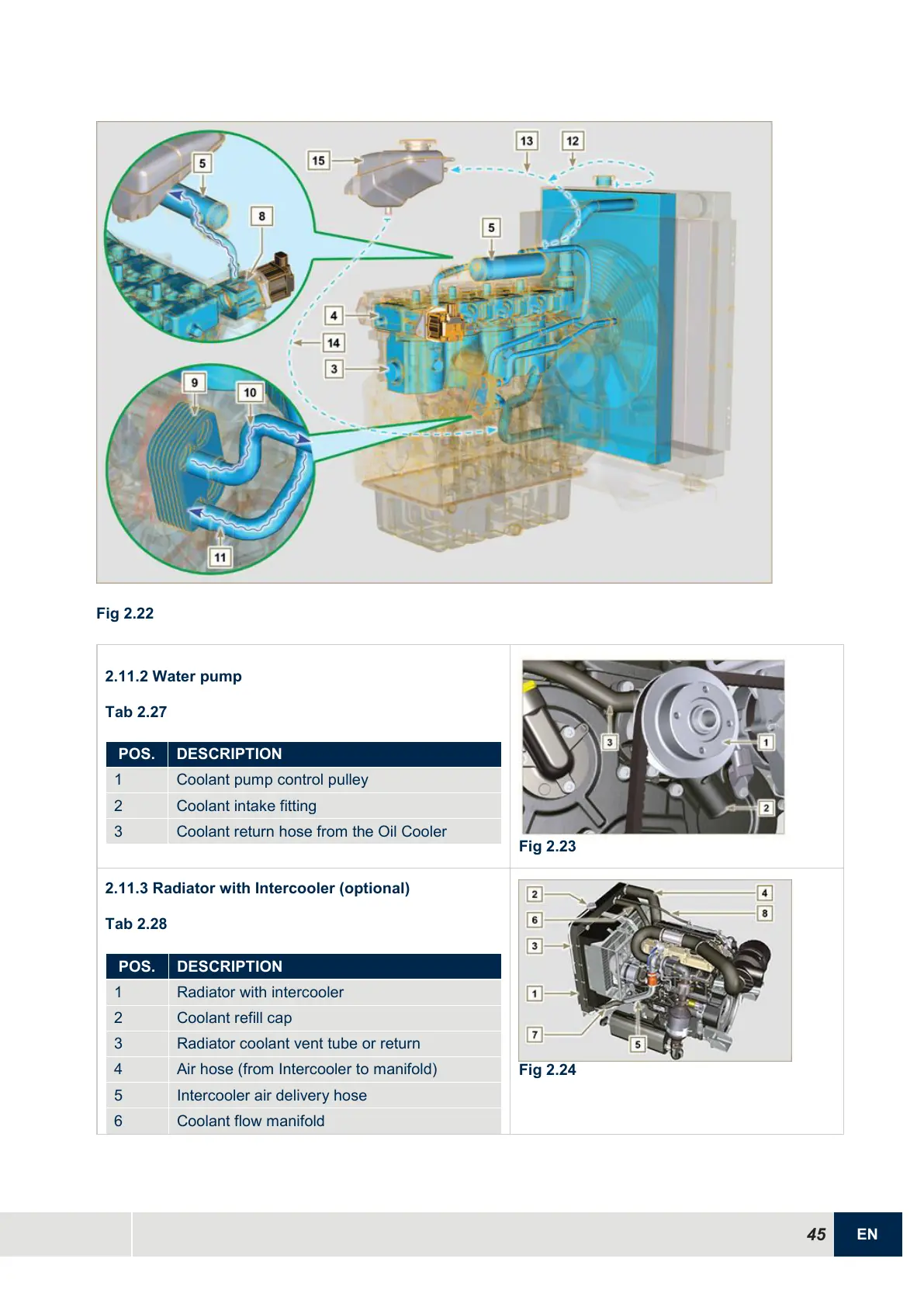

Fig 2.22
2.11.2 Water pump
Tab 2.27
POS.
DESCRIPTION
1
Coolant pump control pulley
2
Coolant intake fitting
3
Coolant return hose from the Oil Cooler
Fig 2.23
2.11.3 Radiator with Intercooler (optional)
Tab 2.28
POS.
DESCRIPTION
1
Radiator with intercooler
2
Coolant refill cap
3
Radiator coolant vent tube or return
4
Air hose (from Intercooler to manifold)
5
Intercooler air delivery hose
6
Coolant flow manifold
